CWDAH1221PL

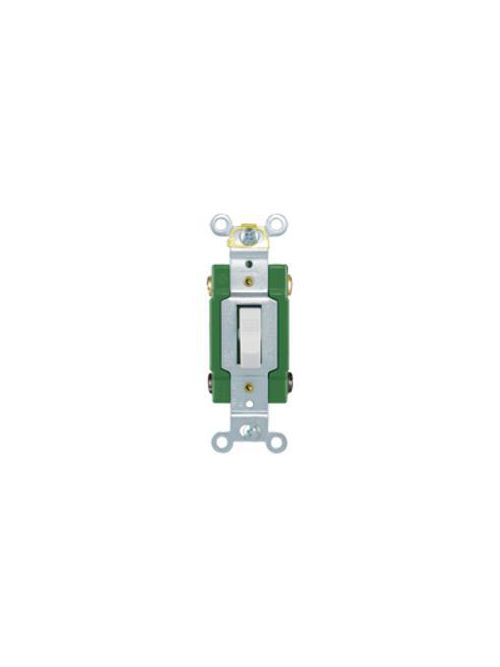

EATON Arrow Hart™ Eaton Wiring Devices AH1221PL Auto Ground Toggle Switch, 120/277 VAC, 20 A, 1, 2 hp Power Rating
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWDAH1221PL
- MPN: AH1221PL
- UPC:032664706455
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Industrial grade toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure. Ground screw terminal standard. 0.05 in THK steel mounting strap zinc plated for corrosion resistance. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications. Combination slot/Phillips® head mounting and terminal screws ease installation with power screwdrivers (slot/Robertson screws in Canada where available). Tri-combo screws.
EATON Arrow Hart™ Eaton Wiring Devices Toggle Switch, Auto Ground, 120/277 VAC, 20 A, 1, 2 hp Power, 20 A at 120/277 VAC Contact, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 30000 Cycles Operating Cycles, Urea, Red, Environmental Conditions: -20 to 60 deg C Operating Temperature, 1.31 in W x 1.05 in D Dimensions
| Actuator | : | Toggle |
| Color | : | Red |
| Contact Rating | : | 20 A at 120/277 VAC |
| Dimensions | : | 1.31 in W x 1.05 in D |
| Environmental Conditions | : | -20 to 60 deg C Operating Temperature |
| Material | : | Urea |
| Mounting | : | Wall |
| Number of Poles | : | 1 |
| Operating Cycles | : | 30000 Cycles |
| Terminal Type | : | Screw |
| Type | : | Auto Ground |
| Voltage Rating | : | 120/277 VAC |
| Amperage Rating | : | 20 A |
| Power Rating | : | 1, 2 hp |
- Lighted version toggle glows when in the Off position
- Color coded faces identify amperage
- 14 to 10 AWG terminal
- Pilot lighted switch
- 2.4 in L screw to screw
