1009444CH EATON
EATON 1009444CH CHD1009444CH
Send Print
  1. pin-int

CHD1009444CH

ETN 1009444CH SOCKET 320A 1P HUB CO

  • Manufacturers: Eaton (Group)
  • Brand Name: EATON
  • BPN: CHD1009444CH
  • MPN: 1009444CH
  • UPC:782116975945
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

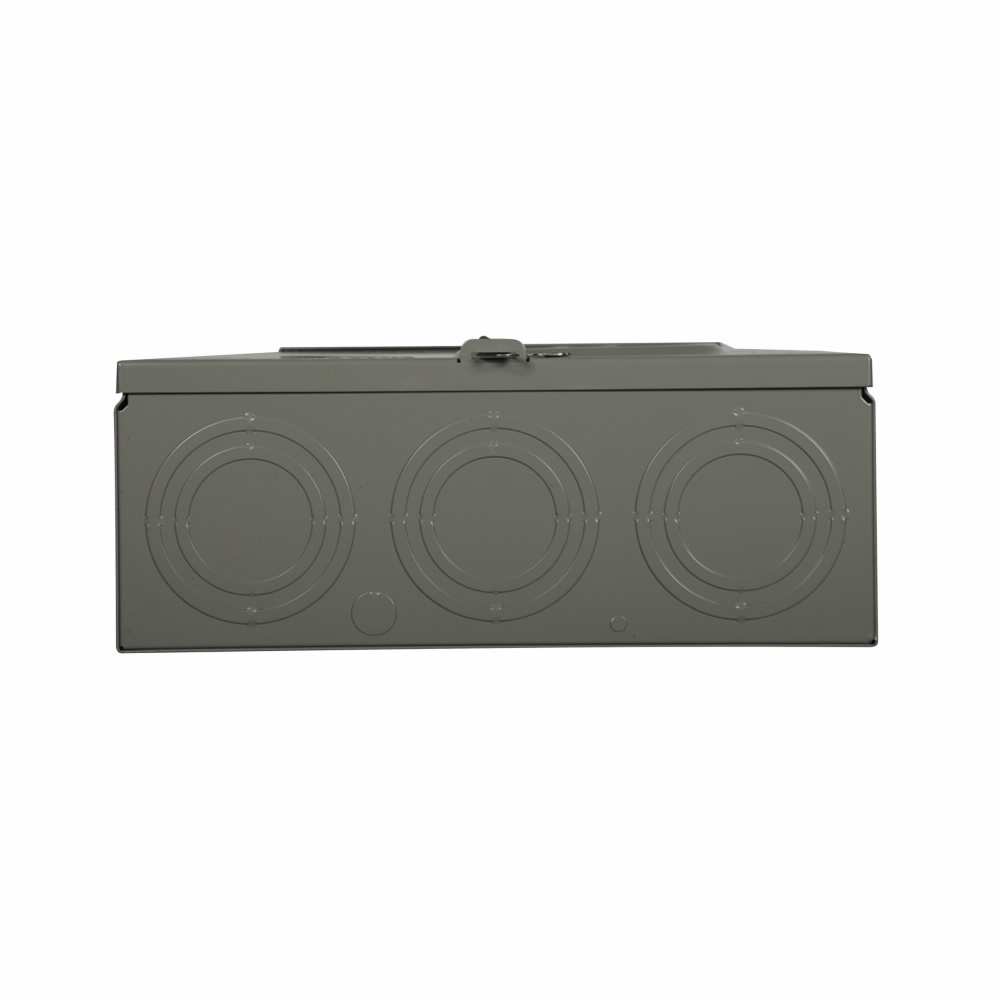

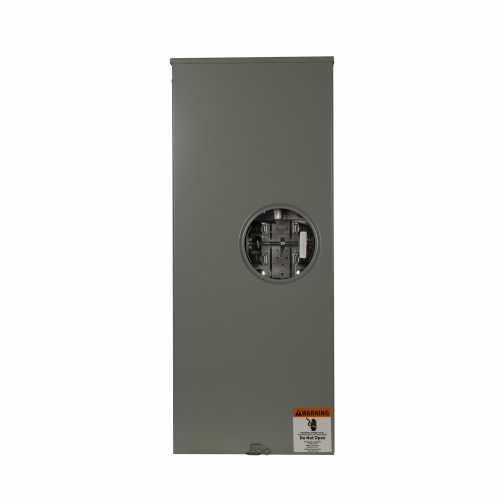

Eaton meter socket, 1-pos socket, 320A, Over/under, Large hub cover plate hub mounted, 3/8 inch stud, 4-jaw, 1-ph, 3/8 inch stud, Inhib provided on jaws, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac

Amperage Rating      :      320 Amp
Amperage      :      320 Amp
Application      :      Residential Bldgs & Facilities - Residential Bldgs & Facilities - Other
Brand Name      :      Eaton
Dimensions      :      5.6800 IN X 15.0000 IN X 36.6200 IN
Feed Type      :      Bottom,Top
Height      :      36.62 Inch
Length      :      5.68 Inch
Number of Phases      :      1 Phase
Number of Wires      :      3 Wire
Phase      :      1
Standards      :      UL Listed

Specifications

  • Phase: Single-phase
  • Number of jaws: Four-jaw
  • Security: Ringless
  • Amperage Rating: 320A
  • Hub type: Large hub cover plate
  • Line: 3/8 in stud
  • Load: 3/8 in stud
  • Type: Single-position socket
  • Feed type: Top/bottom
  • Number of sockets: 1
  • Bypass: Lever
  • Number of wires: Three-wire
  • Voltage rating: 600 V

General

  • UPC: 782116975945
  • Product Length/Depth: 5.68 in
  • Product Height: 36.62 in
  • Product Width: 15 in
  • Product Weight: 38 lb
  • Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Certifications: UL Listed
  • pdfSpec Sheet https://www.eaton.com/us/en-us/skuPage.1009444CH.pdf
