BR-20-4T B-Line
B-Line BR-20-4T BEEBR204T
Send Print
  1. pin-int

BEEBR204T

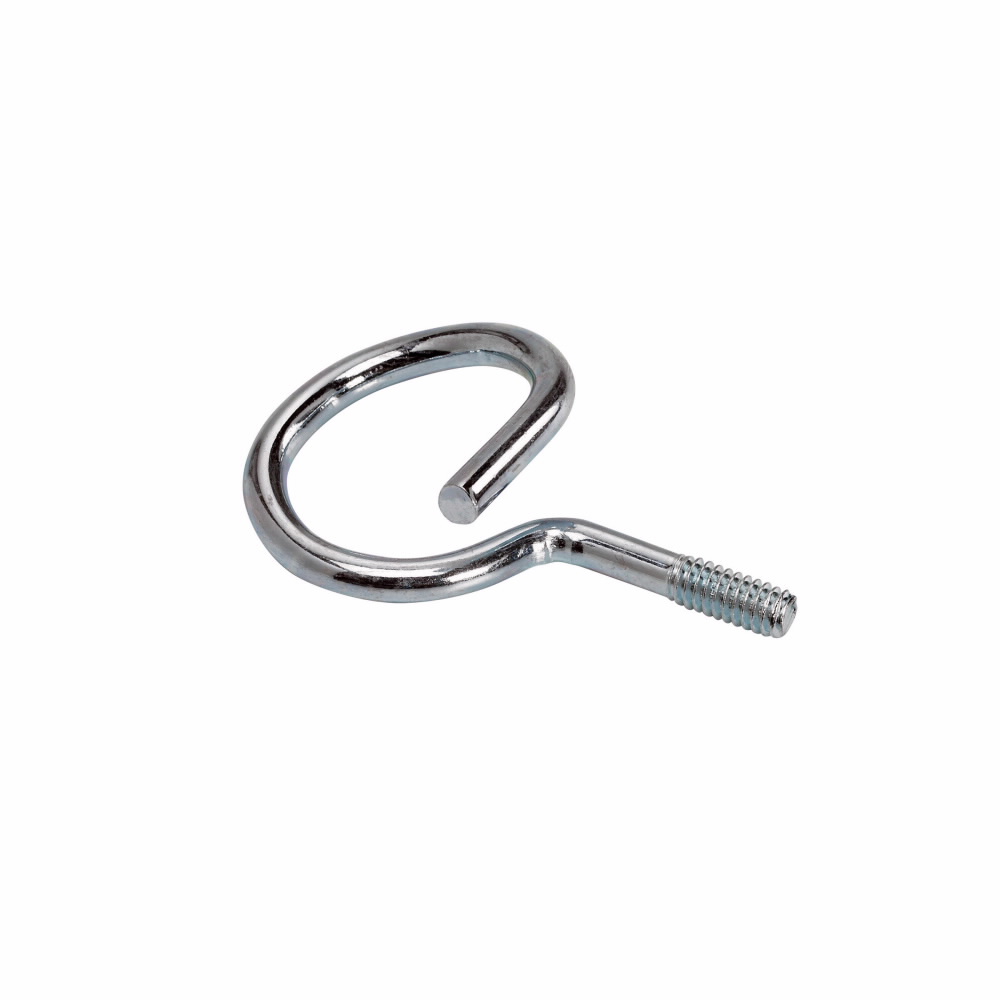

B-Line BR-20-4T 1-1/4 Inch Ring 1/4-20 x 9/16 Inch Zinc Plated Threaded Bridle Ring

  • Manufacturers: Eaton (Group)
  • Brand Name: B-Line
  • BPN: BEEBR204T
  • MPN: BR-20-4T
  • UPC:781011195656
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton B-Line series datacomm and low voltage support fasteners, Zinc plated finish, 50 lbs, Steel, 1.25", 10-24" x 9/16", Used with fasteners for addiitonal support, Threaded bridle rings

Application      :      Datacenters - IT Space: Enterprise / Server Room / Network ClosetCommercial / Institutional Buildings / Structures - Lighting and Lighting ControlsCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Brand Name      :      B-Line
Construction      :      One Piece
Dimensions      :      X X 1.7500 IN
Finish      :      Pre-Galvanized
Height      :      1-3/4 Inch
Material      :      Steel
Mounting Type      :      Beam,Rod
Mounting      :      Beam, Rod
Size      :      1-1/4 in
Standards      :      cULus Listed
Sub Brand      :      B-Line series
Trade Slang      :      781011195656, BLIBR204T, Eaton B-Line, BR-20-4T, Plain, Threaded & Wood Screw Bridle Rings, Datacomm, Clips, Clamps, Hangers, Fittings, Cooper B-Line DATA, B-Line
Type      :      Threaded Bridle Rings

Specifications

General

  • UPC: 781011195656
  • Product Height: 1.75 in
  • Product Diameter: 2 in
  • Product Weight: 15.2 lb
  • Compliances: cULus Listed

Model

  • Type: Threaded bridle rings
  • Special features: Used with fasteners for addiitonal support

Specifications

  • Load capacity: 50 lb
  • Ring size: 1.25 in
  • Ring thread size: 10-24" x 9/16"

Material/Finish

  • Material: Steel
  • pdfSpec Sheet http://www.cooperindustries.com/content/dam/public/bline/Resources/Library/catalogs/fasteners_and_fixing/spring_steel_fasteners_NA/CLV-ThreadedBridleRings.pdf
