MTV10-250Q Highland Electrical, Inc.
Highland Electrical, Inc. MTV10-250Q MMMMTV10250Q
Send Print
  1. pin-int

MMMMTV10250Q

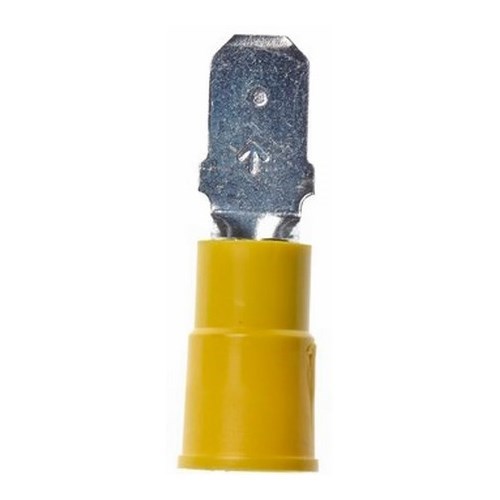

3M MTV10-250Q Highland 25/Bag Vinyl Insulated Male Disconnect

  • Manufacturers: 3M
  • Brand Name: Highland Electrical, Inc.
  • BPN: MMMMTV10250Q
  • MPN: MTV10-250Q
  • UPC:051128600276
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

This terminal accepts a wire range of 12-10 AWG, a stud size of .250 and has a case quantity of 10 bags.

Barrel Length      :      0.25 in
Barrel Type      :      Butted
Brand Name      :      Highland Electrical, Inc.
Conductor Size      :      12-10 AWG
Insulation Material      :      Vinyl
Length      :      1.05 Inch
Overall Length      :      1.05 in
Terminal Style      :      Standard
Terminal Type      :      Disconnect
Thickness      :      0.032 in
Trade Slang      :      051128600276, terminals, terminal, male tab terminal, male tab terminals, yellow male tab terminal, yellow male terminals, quick disconnect terminal, quick disconnect terminals, male quick disconnect, male quick disconnects, MMMMTV10250Q, 3M, MTV10-250Q, Male Tabs - Vinyl-Insulated, Tabs, Small Terminals, Forks, Rings, Connectors, Crimps, Termination, Spade terminal

Overview

Attached to mating part by tongue slipping over male tab. Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.

Specifications

  • Barrel Style: Butted
  • CSA File Number: LR22190
  • Terminal Type: Disconnect
  • Conductor Sizes: 12 - 10 AWG
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Length: 1.05 Inch
  • Barrel Length: 0.25 Inch
  • Fastener Orientation: Male
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Trademark: Highland
  • Maximum Insulation Outer Diameter: 0.25 Inch
  • Thickness: 0.032 Inch
  • Pad Width: 0.25 Inch
  • Insulation Material: Vinyl
  • Agency Approvals: UL and CSA
  • RoHS 2011/65/EU Compliant: Yes
  • Brand: Highland
  • Packaging: 25 per bag
  • Terminal Style: Standard
  • UL File Number: E70512

Documents

  • pdfSpec Sheet https://media.distributordatasolutions.com/3M/2020q3/documents/aedb8774ac132652add0dc3130864d27a1c7f378.pdf
