NGB3B050B Siemens Canada
Siemens Canada NGB3B050B ITENGB3B050B
Send Print
  1. pin-int

ITENGB3B050B

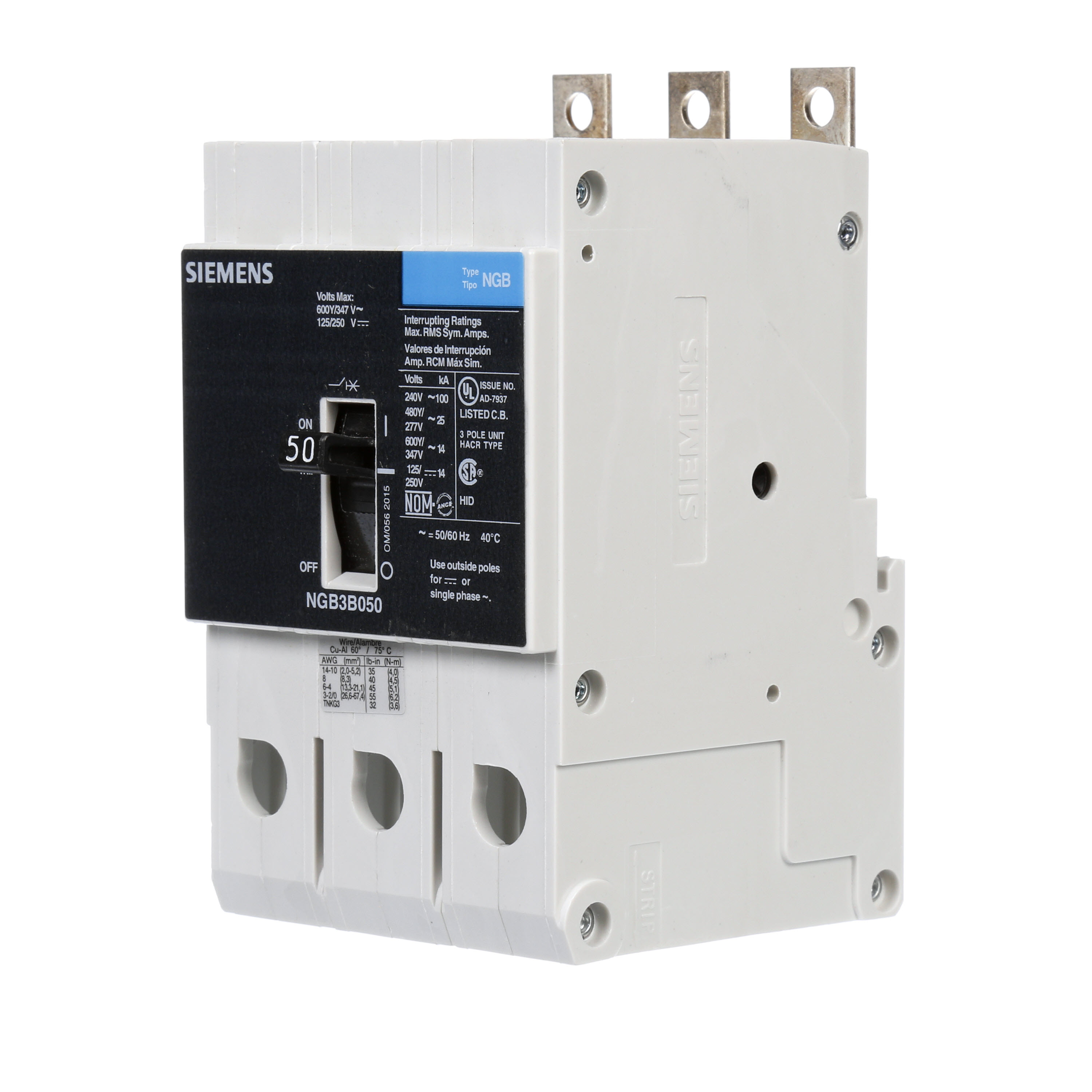

Siemens NGB3B050B 3-Pole 600 Star/347 VAC 50 Amp 14 kA Panelboard Mount Molded Case Circuit Breaker

  • Manufacturers: Siemens
  • Brand Name: Siemens Canada
  • BPN: ITENGB3B050B
  • MPN: NGB3B050B
  • UPC:783643414327
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 50A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.

Amperage Rating      :      50A
Amperage      :      50 Amp
Application      :      INDUSTRIAL
Brand Name      :      Siemens Canada
Connection      :      Load Lugs
Current Rating      :      50 Amp
Current      :      50 Amp
ETIM 7 Class      :      EC000228
Frequency Rating      :      50/60 Hz
Interrupt Rating      :      14 kAIC
Number of Poles      :      3 Pole
Operating Temperature      :      40DEGC
Standards      :      UL/CSA/IEC/NOM
Sub Brand      :      NGB
  • pdfSpec Sheet https://digitalcontentcenter.compas.siemens-info.com/Siemens-Molded-Case-Circuit-Breakers-Panelboard_Mount-NGB-Cut-Sheet.pdf
