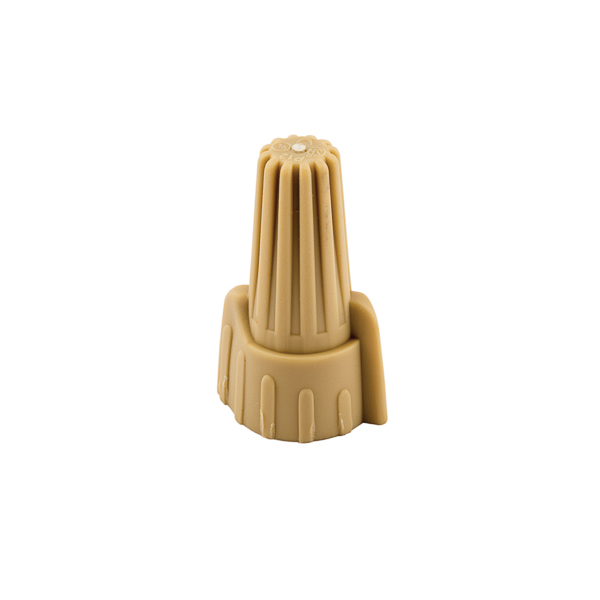

NSI Easy-Twist™ WWC-T-B Twist-On Wire Connector, Swept Back Winged Shell, Fixed/Square Wire Spring, 22 to 8 AWG Copper Wire, Thermoplastic

  • Manufacturers: NSi Industries
  • Brand Name: NSI
  • BPN: NSIWWCTB
  • MPN: WWC-T-B
  • UPC:662381141255
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

NSI Easy-Twist™ Twist-On Wire Connector, Series: WWC, Swept Back Winged Shell Style, Fixed/Square Wire Spring, Copper Wire, 22 to 8 AWG Wire, 600 VAC, Specifications: 1 Conductor, 0.283 in Dia Top, 105 deg C, Thermoplastic, Tan, 1.14 in H x 0.72 in W

Color      :      Tan
Dimensions      :      1.14 in H x 0.72 in W
Series      :      WWC
Specifications      :      1 Conductor, 0.283 in Dia Top
Temperature Rating      :      105 deg C
Voltage Rating      :      600 VAC
Shell Style      :      Swept Back Winged
Spring Type      :      Fixed/Square Wire
Wire Size      :      22 to 8 AWG
Wire Type      :      Copper
Material      :      Thermoplastic
  • Flame retardant UL 94V-2 thermoplastic shell that provides excellent electrical insulation
  • Easy-twist winged twist-on wire connectors have deep surface ridges to provide better grip
  • Fixed, precise square wire spring provides secure gripping of conductors
  • Deep skirt entry provides protection from flashover and shorts
  • 1000 V maximum in fixtures and signs
  • Compact design ensures proper installation, especially in tight spaces
  • Threaded funnel entry guides the wires into the connector easily
  • Pre-twisting of wires is not necessary
  • Zinc plated springs for low contact resistance
  • (3) 22 to (4) 12 AWG wire combinations
