FBRS415 Arlington Industries, Inc.
Arlington Industries, Inc. FBRS415 ARLFBRS415
Send Print
  1. pin-int

ARLFBRS415

Arlington FBRS415 Steel Fan & Fixture Box w/ Bracket, 16" to 24"

  • Manufacturers: Arlington Industries
  • Brand Name: Arlington Industries, Inc.
  • BPN: ARLFBRS415
  • MPN: FBRS415
  • UPC:018997722508
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

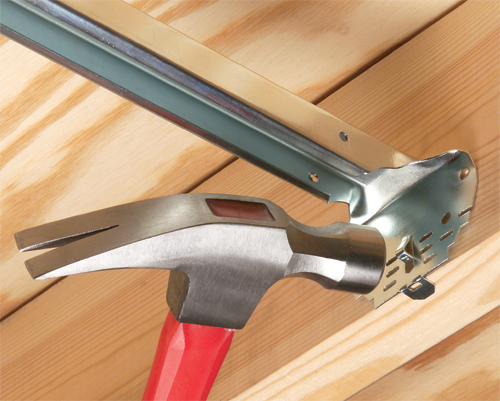

Steel fan and fixture box with adjustable mounting bracket for new construction. 16" to 24" on center positioning. Bracket pre-set and 1/2" ceiling thickness. Bend Bracket along the score lines for 3/4", 1", 1-1/4" ceiling depths. 15.6 cu.

Application      :      For New Construction and up to 1-1/4 in Ceiling Thickness
Brand Name      :      Arlington Industries, Inc.
Color      :      Silver
Cubic Capacity      :      15.6 in³
Height      :      2.658 Inch
Includes      :      Box/Adjustable Bracket, Screws to Adjust Box Position, Installed NM Cable Connector and Mud Cover, Multiple KOs and Four Installation Screws Parked in-Place (Ready for Installer), Two Screws for Fan/Fixture Bracket Installation (Screwed In Place Until Removed by Installer), Plug and Screw Hook
Item Name      :      Fan/Fixture Box
Knockouts      :      Yes
Length      :      2.674 Inch
Material      :      Steel
Mounting Type      :      Concrete
Mounting      :      Screw
Package Quantity      :      1 pc
Size      :      15.6 cu in
Standards      :      UL Listed, CSA Certified
Trade Slang      :      018997722508, box hanger, octagon, ARLFBRS415, Arlington, FBRS415, Ceiling Boxes with Hangers, Ceiling Boxes & Accessories, Boxes - Metallic, Boxes, Enclosures, New construction fan bar box, Fan box
Type      :      Octagonal

Specifications

Basic Information

  • UPC: 018997722508
  • Unit Packaging: 1pc
  • Standard Packaging: 10pcs
  • Listing: UL, CSA

Physical Information

  • Weight: 1.775 lbs/each
  • Height: 2.658"
  • Width: 4.000"
  • Color: Silver
  • Material(s): Plated Steel

Technical Information

  • Cubic Inches: 15.6
  • Style: For up to 1-1/4" Ceiling Thickness
  • Trade Size: 15.6 cu. in.
  • pdfSpec Sheet https://media.distributordatasolutions.com/arlington/2020q2/documents/8c5f339050a67dba3c3f1ad7efeef61a83b538f2.pdf
