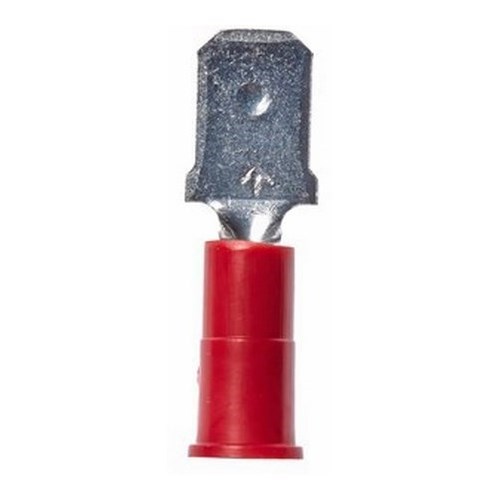

3M MTV18-250Q 25/Bag Male Disconnect Vinyl Insulated Highland Bag

  • Manufacturers: 3M
  • Brand Name: Highland Electrical, Inc.
  • BPN: MMMMTV18250Q
  • MPN: MTV18-250Q
  • UPC:051128600313
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

3M™ Highland™ Color-Coded Standard Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Brand Name      :      Highland Electrical, Inc.
Conductor Size      :      22-18 AWG
Overall Length      :      0.93 in
Trade Slang      :      051128600313, male tab terminal, tab terminal, wire terminal, insulated tab, MMMMTV18250Q, 3M, MTV18-250Q, Male Tabs - Vinyl-Insulated, Tabs, Small Terminals, Forks, Rings, Connectors, Crimps, Termination


  • Red vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide female tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag


  • Barrel Inside Diameter: 0.065 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Butted
  • Conductor Size: 22 - 18 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • CSA File Number: LR22190
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Material: Vinyl
  • Mates with Female Width: 0.25 Inch
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Conductor Size: 18 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Minimum Conductor Size: 22 AWG
  • Overall Length (Imperial): 0.93 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.187
  • Terminal Style: Standard
  • Terminal Type: Standard
  • UL File Number: E70512
  • pdfSpec Sheet https://media.distributordatasolutions.com/3M/2020q3/documents/aedb8774ac132652add0dc3130864d27a1c7f378.pdf
