5400TC Wiremold®
Send Print
  1. pin-int

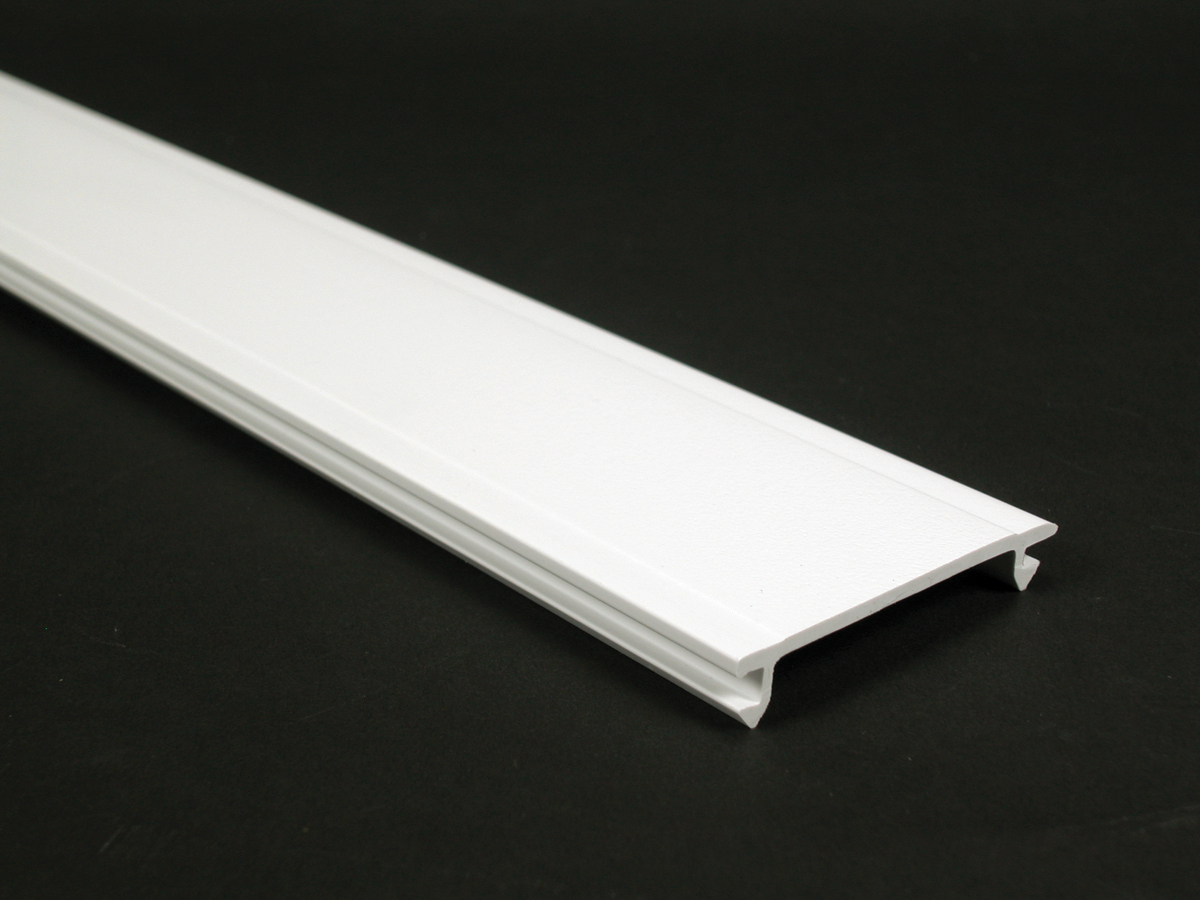

Wiremold® 5400TC Twin Snap Non-Metallic Raceway Cover, 8 ft L x 2-9/16 in W x 2-9/16 in H, Ivory

  • Manufacturers: Legrand
  • Brand Name: Wiremold®
  • BPN: WIR5400TC
  • MPN: 5400TC
  • UPC:786776536157
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Wiremold® products work together seamlessly to save installation time, while providing enhanced flexibility and productivity in environments ranging from residential dwellings and educational institutions to meeting rooms and healthcare facilities.

Wiremold® Raceway Cover, Twin Snap Non-Metallic, 8 ft Length, 2-9/16 in Width, 2-9/16 in Height, For Use With: 5400 Series Raceway, Ivory

Color      :      Ivory
Height      :      2-9/16 in
Length      :      8 ft
Suitable For Use With      :      5400 Series Raceway
Type      :      Twin Snap Non-Metallic
Width      :      2-9/16 in
  • 600 VAC voltage rating
  • Accommodates needs now and in the future
  • Complete segregation of access to power and low voltage services for installation flexibility
  • Provides solution for feeding horizontal runs of raceway
  • These fittings snap onto overlap raceway base and cover for an aesthetic installation
  • Manufactured to specified job site lengths, raceway comes electrically pre-wired, ready to install
  • Eliminates guesswork and circuit tracing to speed additions and renovations
  • 5507 series faceplates provide a/V compatibility for 5400 series raceway installations
  • Faster and easier raceway installation
  • Offers flexibility and up to three separate services at the same location
  • Lightweight and easy to cut, meets up flammability requirements, up listed for up to 600 VAC
  • Large cable capacity in a low profile design, twin snap cover
  • Corner drop feed, device mounting in-line, offset or both, pre-punched mounting holes
  • Fittings are culls verified for a 2 in (51 mm) bend radius
  • Exceed the recommendations of TIA/EIA-569 they provide cable protection in lay-in and pull-through cable installations
