T50R0M4 HellermannTyton
HellermannTyton T50R0M4 TYTT50R0M4
Send Print
  1. pin-int

TYTT50R0M4

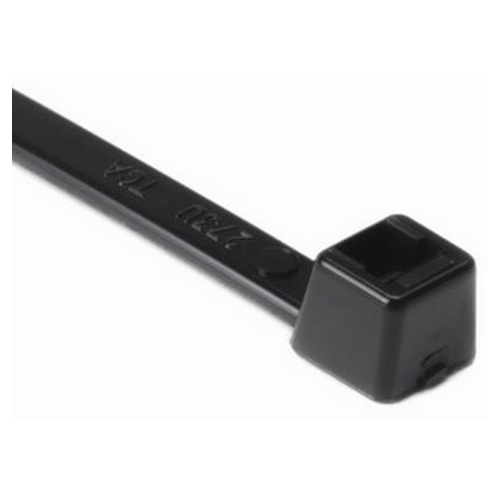

Hellermann Tyton T50R0M4 50 lb 7.9 Inch Length 1.97 Inch Max Bundle Diameter Black Polyamide Cable Tie

  • Manufacturers: HellermannTyton
  • Brand Name: HellermannTyton
  • BPN: TYTT50R0M4
  • MPN: T50R0M4
  • UPC:089306087199
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles. The head design guarantees high tensile strength and a low insertion force. The bent tail design allows quick and simple installations by hand. For high-volume applications, tensioning tools are available to ensure consistent and safe installation.

Application      :      Used to bundle and secure wire and cable.
Brand Name      :      HellermannTyton
Bundle Diameter      :      0.06 in
Color      :      Black
Country of Origin      :      USA
Flamability Class      :      UL 94 V-2
Length      :      8 Inch
Material      :      Polyamide
Operating Temperature      :      -40 degrees C
Standards      :      UL Listed (US and Canada), UL Recognized (US and Canada)
Standard      :      UL Listed (US And Canada),UL Recognized (US And Canada)
Sub Brand      :      Cable Ties
Tensile Strength      :      50 lb
Type      :      T50R

Features

  • Engineered and manufactured for maximum performance and quality
  • Made from 100% high-quality plastic to ensure efficient recycling
  • Inside serration for a strong grip onto bundles
  • Easy application either manually or with a tensioning tool
  • Bent tail allows for simpler insertion

Specifications

  • Flammability: UL 94 V-2
  • Country of Origin: US
  • GTIN: 4031026274669
  • UL-File Number: E64139 [cRUus (Type 11)] | E64139 [cULus (Type 21+21S)]
  • Material: Polyamide 6.6 (PA66)
  • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
  • Color: Black (BK)
  • Length (Imperial): 8.0 "
  • Bundle Diameter Max. (Imperial): 1.97 "
  • Bundle Diameter Max. (Metric): 50.0 mm
  • Bundle Diameter Min. (Imperial): 0.06 "
  • Bundle Diameter Min. (Metric): 1.5 mm
  • Width W (Imperial): 0.18 "
  • Width W (Metric): 4.6 mm
  • Tensile Strength Min. (Imperial): 50.0 lbs
  • pdfSpec Sheet https://media.distributordatasolutions.com/xlsx_hellerman_tyton/2021q4/documents/cc2e18d080e23574d7265ab373bcc6a35e896dcd.pdf
