WM1H-GY LEVITON
LEVITON WM1H-GY LEVWM1HGY
Send Print
  1. pin-int

LEVWM1HGY

LEV WM1H-GY MTL ONE GANG HORIZONTAL

  • Manufacturers: Leviton
  • Brand Name: LEVITON
  • BPN: LEVWM1HGY
  • MPN: WM1H-GY
  • UPC:078477750186
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

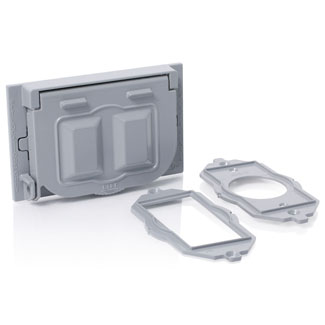

1-Gang Horizontal Mount Weatherproof Cover for GFCI, Single Receptacle or Duplex Receptacle, Metallic Enclosure, Flat Lid, Includes inserts for GFCI, Single Receptacle and Duplex Receptacle Installations, Weatherproof Cover, Weatherproof Gasket and Mounting Screws - GRAY

Brand Name      :      Leviton
Color      :      Gray
Construction      :      Metal
Country of Origin      :      India
Device Type      :      Straight Blade Receptacles
Item Name      :      Weatherproof Box Cover
Material      :      Aluminum
Mounting Type      :      Box
Mounting      :      Box
NEMA Size      :      3R
NEMA      :      3R
Number of Gangs      :      1 Gang
Standards      :      NEMA 3R Rated
Standard      :      NEMA 3R
Sub Brand      :      COMMERCIAL WEATHER PROOF COVE
Trade Slang      :      078477750186, 1 gang, Cover, Non-Metallic, Weatherproof Cover, LEVWM1HGY, Leviton, WM1H-GY, Weatherproof Non-Metallic Covers - 1 Gang, Non-Metallic Boxes & Covers, Boxes - Weatherproof, Boxes, Enclosures
Type      :      Cover
Warranty Length      :      2 yr

Features

  • Complies with the National Electric Code® (2017) Section 406.9 for weatherproof enclosures in damp and wet locations.
  • Ruggedly constructed to seal out moisture, dust, debris, and insects, while providing easy access to receptacles and switches
  • Ideal for outdoor power, landscape, accent and holiday lighting

NEMA

  • Rated 3R

Specifications

  • Country of Origin: India
  • RoHS Compliant: Yes

Mechanical Specifications

  • Color: Gray
  • Orientation: Horizontal

Product Features

  • Construction: Metal
  • Device Type: Straight Blade Receptacles

Material Specifications

  • Cover/Lid: Aluminum
  • Mounting Screws: Stainless Steel
  • Torsion Spring Mechanism: Stainless Steel

Standards and Certifications

  • CULUS Listed: E92327
  • NEMA: Rated 3R
  • RoHS: Compliant

Warranty

  • Warranty: 2-Year Limited
  • pdfSpec Sheet https://media.distributordatasolutions.com/csv_leviton/2023q2/documents/4786bd3a4e8a82fccfa9f7447a99f776c5e729cd.pdf
  • pdfInstallation / Instruction Manual https://media.distributordatasolutions.com/csv_leviton/2023q2/documents/577ee04f9779b20d64397f7d55bd624aa05fe89f.pdf
