44-809 IDEAL®
Send Print
  1. pin-int

IDE44809

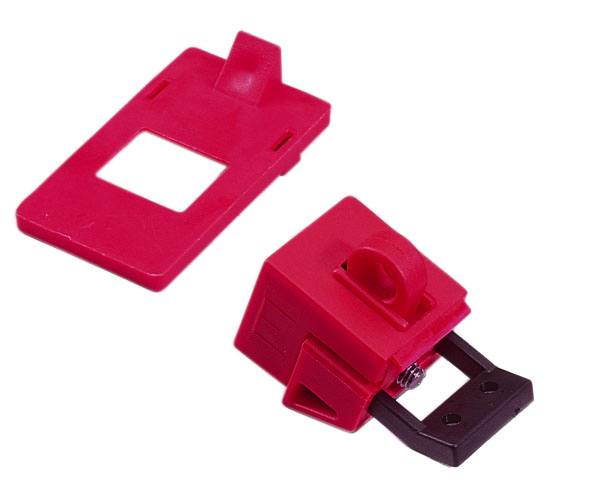

IDEAL® 44-809 Universal Circuit Breaker Lockout, For Use With 120/277 V Single Pole Breaker with Trip Lever Up to 1/2 in Width, 0.28 in Dia Max Padlock Shackle, Red

  • Manufacturers: Ideal Industries
  • Brand Name: IDEAL®
  • BPN: IDE44809
  • MPN: 44-809
  • UPC:783250448098
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

IDEAL® Circuit Breaker Lockout, Universal, For Use With: 120/277 V Single Pole Breaker with Trip Lever Up to 1/2 in Width, 0.28 in Padlock Shackle Maximum Diameter, Red, 1 in Height, 2-1/2 in Width, 4 in Depth

Color      :      Red
Depth      :      4 in
Height      :      1 in
Padlock Shackle Maximum Diameter      :      0.28 in
Suitable For Use With      :      120/277 V Single Pole Breaker with Trip Lever Up to 1/2 in Width
Type      :      Universal
Width      :      2-1/2 in
  • Hinged single-pole lockout with locking post design, locks lever in off position to isolate and prevent breaker use
  • Use thumbscrew to clamp lockout securely on to switch tongue, then pull cover over thumbscrew and lock in place to prevent clamp from being loosened
  • New blade design provides tighter grip with less torque on thumbscrew
  • pdfCatalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_56e314ffcd533bb0dc046b19fd6e6e3df2d1ba73f871af6e81d2d4b817c1a074.pdf
  • pdfRoHS https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_785e8886fd53fb87bc2bf98a888d86b1bc529daf979b10812668da2d0d57e56c.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDEAL_44_809_Datasheet.pdf
