V4011 Wiremold
Send Print
  1. pin-int

WIRV4011

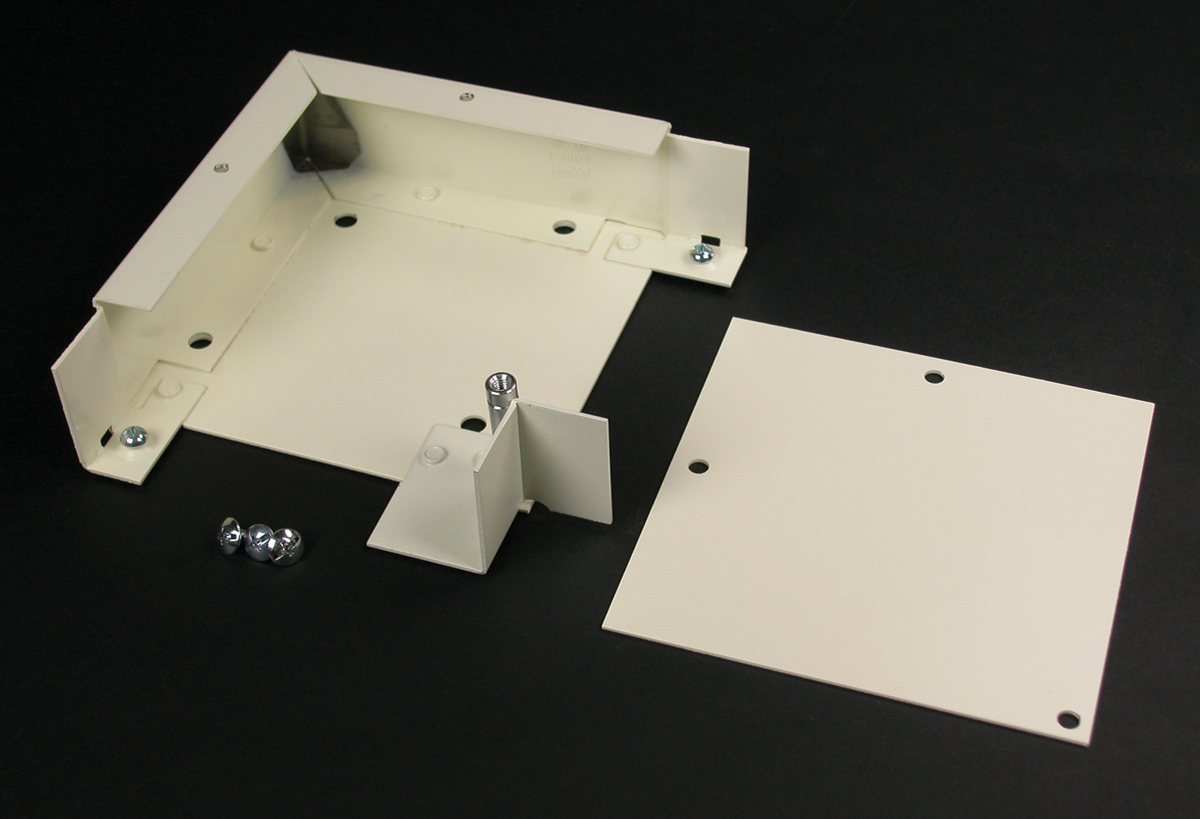

Wiremold V4011 4-3/4" Ivory Steel Multiple Channel Raceway 90 Degrees Flat Elbow

  • Manufacturers: Legrand
  • Brand Name: Wiremold
  • BPN: WIRV4011
  • MPN: V4011
  • UPC:786776080520
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

4000 Series Right angle turns on the same surface.

Application      :      Commercial, Office, Residential
Brand Name      :      Wiremold
Buy American Compliant      :      Y
Certifications      :      CULUS,NAFTA,ROHS
Color      :      Ivory
Component Type      :      Fittings & Accessories
Connection Size      :      1-3/4 in
Connection Type      :      Snap-On
Country of Origin      :      USA
Dimensions      :      4-3/4 in L
Finish      :      ScuffCoat
For Use With      :      4000 Series Raceway
Item Name      :      Flat Elbow
Jacket Color      :      Ivory, Gray
Length      :      4-3/4 Inch
Material      :      PVC
Outside Diameter      :      1.75 in
Product Series      :      4000
Series/Model      :      4000
Standards      :      cULus Listed, UL File Number E4376, E41751, Meets Article 386 of NEC, Meets Section 12-600 of CEC
Sub Brand      :      Wiremold
Trade Slang      :      786776080520, insert, corner, 4000, Flat, Elbow, WMDV4011, Wiremold, V4011, 2-Piece Large Raceway - Elbows, 2-Piece Large Raceway & Accessories, Raceway - Metallic, Conduit, Ducts, Raceways
Type      :      90°
Voltage Rating      :      600 Volt
Voltage      :      600 Volt

Features

Certifications

  • NAFTA Compliant
  • cULus Listed
  • RoHS Compliant
  • 4000 Series Right angle turns on the same surface.

Specifications

  • Product Line: Wiremold

Specifications

  • Country of Origin: United States
  • Standard: cULus Listed Raceway: File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Blank Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC.
  • Type: Raceway
  • Voltage: 600.0 V
  • Special Features: Large cross section area, provides ample space for largewiring requirements.Complete line of fittings, provides complete wiring solutionand allows for interconnection between raceway systems. Gray baked enamel and Ivory ScuffCoat finish makes a scratch resistant surface.
  • Application Sector: Residential/Commercial
  • linkSpec Sheet https://legrand.webdamdb.com/directdownload.php?ti=55653934&tok=JWashlAV6lc22NlK1gUXtgRR
  • linkInstallation / Instruction Manual https://legrand.webdamdb.com/directdownload.php?ti=55652703&tok=6HbOthx0r6pmfDVjBMbV/QRR
