V5744S-2
Legrand
https://www.billows.com/3360601/product/WIRV5744S2
https://www.billows.com/3360601/product/WIRV5744S2
WIRV5744S2

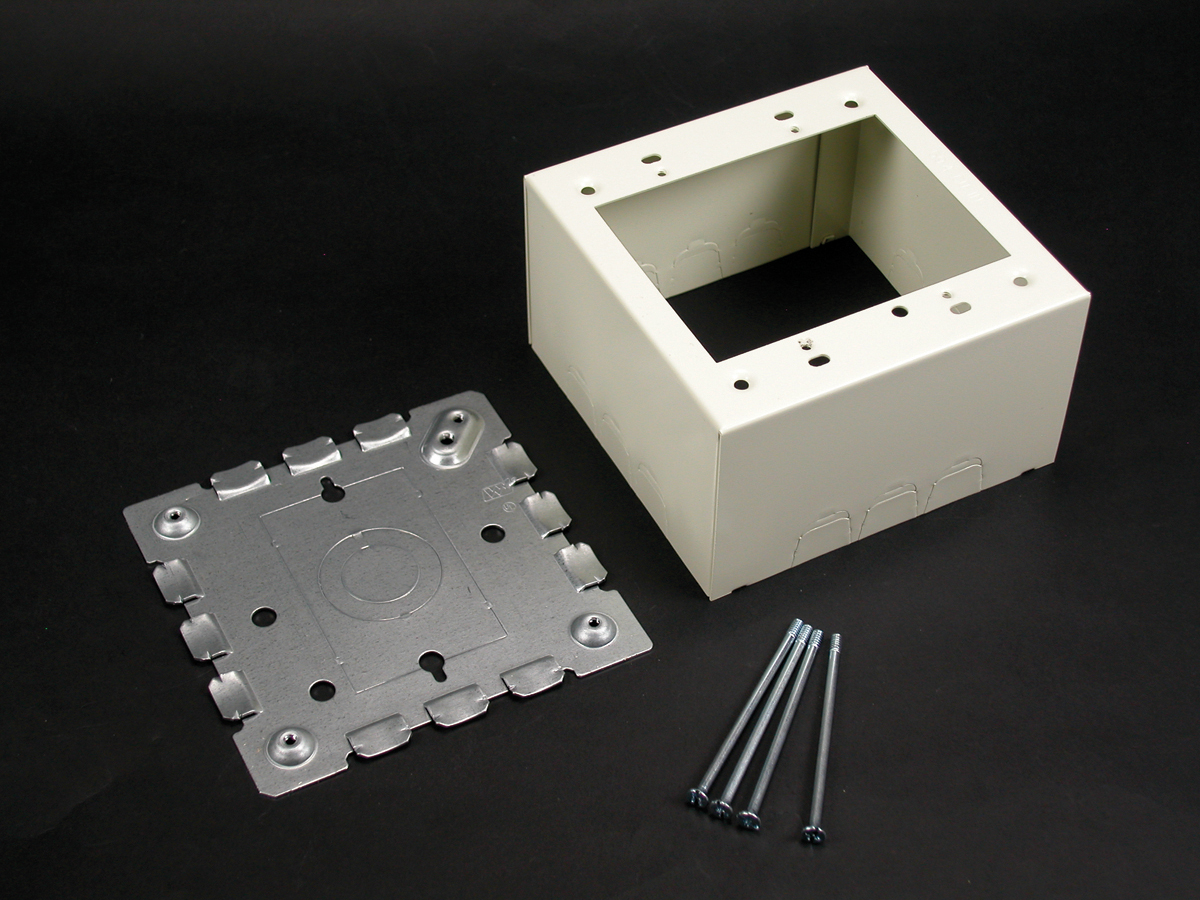

Wiremold V5744S-2 4-3/4 x 4-3/4 x 2-1/4" Ivory Steel 1-Channel Raceway 2-Gang Deep Switch and Receptacle Box
- Manufacturers: Legrand
- Brand Name: Legrand
- BPN: WIRV5744S2
- MPN: V5744S-2
- UPC:786776070491
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Wiremold 500 Series and 700 Series raceways are ideal for surface mounting small amounts of electrical wiring or communication cables. These rugged raceways offer a low profile appearance which blend with any decor. Available in our exclusive ScuffCoat finish.
| Application | : | Commercial |
| Brand Name | : | Legrand |
| Buy American Compliant | : | Y |
| Certifications | : | NAFTA,ROHS,UL |
| Color | : | Ivory |
| Component Type | : | Boxes |
| Country of Origin | : | USA |
| Depth | : | 2.38 Inch |
| Height | : | 4.88 Inch |
| Jacket Color | : | Ivory, White |
| Length | : | 4-3/4 Inch |
| Material | : | Steel |
| Outside Diameter | : | 2 1/4" x 4 3/4" |
| Product Series | : | 500700 |
| Standards | : | cULus Listed Raceway: File E4376 Guide RJBT. Fittings: File E4751 Guide RJPR. Meets Article 386 of NEC. Meets Section 12-1600 of CEC. |
| Sub Brand | : | Wiremold |
| Trade Slang | : | 786776070491, raceway, deep switch box, switch box, receptacle box, 500 series, 700 series, 500, 700, Cover, Duplex Receptacle, WMDV5744S2, Wiremold, V5744S-2, Raceway - 2-Gang Switch & Receptacle Boxes, Raceway Boxes - 2-Gang, Raceway Boxes, Conduit, Ducts, Raceways |
| Type | : | Raceway |
| Voltage Rating | : | 600 Volt |
| Voltage | : | 300 Volt |
| Volume | : | 56.68 cu in |
Features
Certifications
- RoHS Compliant
- NAFTA Compliant
- UL Listed
- This product meets the material restrictions of RoHS
Specifications
- Color: Ivory
- Product Line: Wiremold
- Product Volume: 56.68
Specifications
- Depth: 2.38 in
- Special Features: Low-profile, unobtrusive appearance., Surface mounting, UL5 and ADA compliant, UL and cUL Listed component raceways
- Height: 4.88 in
- Weight: 0.81 lb
- Width: 4.88 in
- Country of Origin: United States
- Type: Raceway
- Voltage: 300.0 V
- Application Sector: Commercial
- Standard: cULus Listed Surface Metal Raceway: File E41751: Guide RJPR
Spec Sheet
