TYD4X4WPW6 Ty-Duct®
Send Print
  1. pin-int

TBTYD4X4WPW6

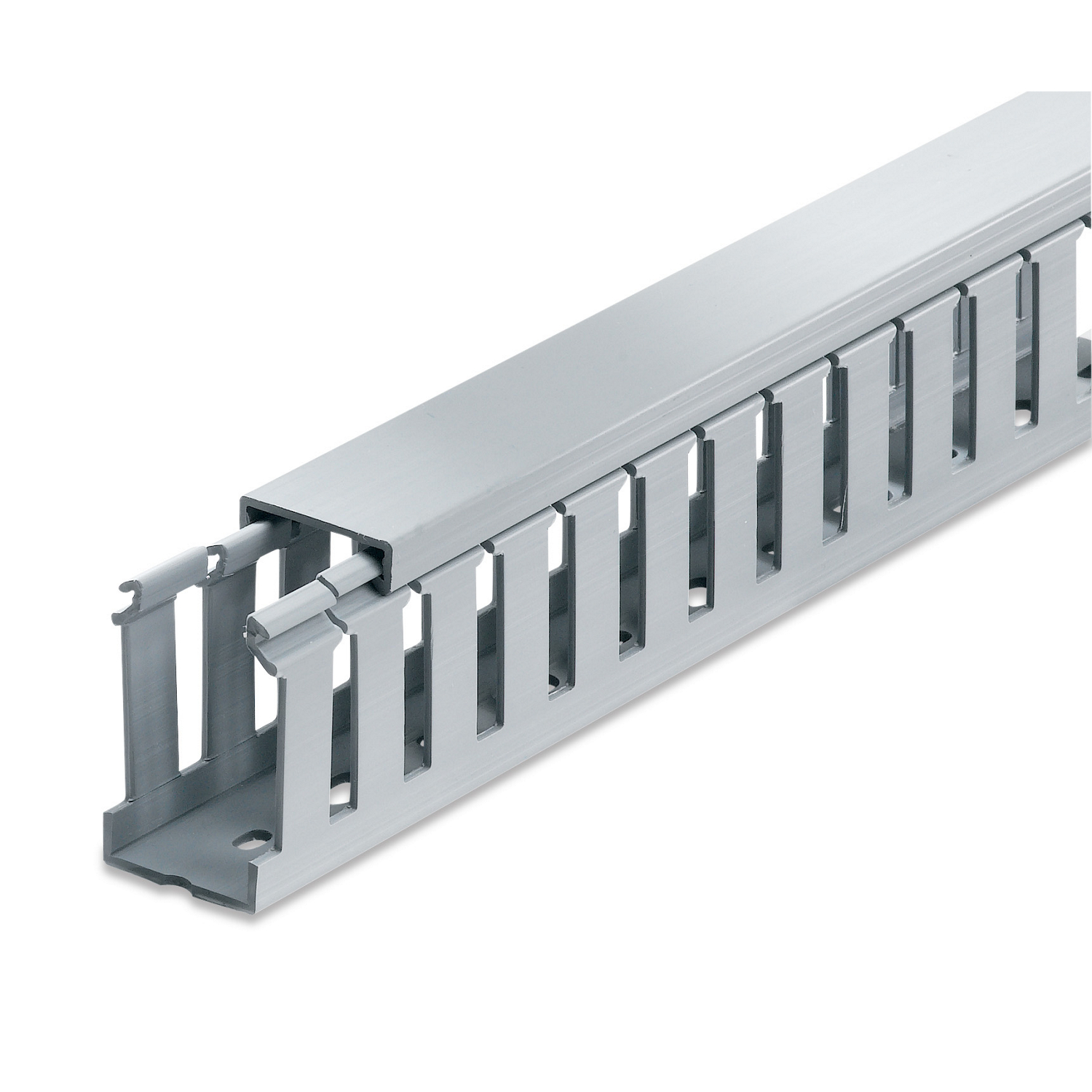

Ty-Duct® TYD4X4WPW6 Wiring Duct, 0.195 x 0.625 in and 0.315 x 0.551 in Wide Slot, 4 in W x 4 in D, PVC

  • Manufacturers: Thomas & Betts
  • Brand Name: Ty-Duct®
  • BPN: TBTYD4X4WPW6
  • MPN: TYD4X4WPW6
  • UPC:786210090634
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Ty-Duct® Wiring Duct, 4 in W, 4 in D, 6 ft Length, Wide Slot, 0.195 x 0.625 in and 0.315 x 0.551 in Slot, Flush Mount, No Adhesive Backed, PVC, White

Adhesive Backed      :      No
Color      :      White
Depth      :      4 in
Length      :      6 ft
Material      :      PVC
Mounting Type      :      Flush
Slot Size      :      0.195 x 0.625 in and 0.315 x 0.551 in
Slot Type      :      Wide
Width      :      4 in
  • Wide fingers and slots increase rigidity and enable insertion of bundles
  • V-shaped slot lead-in enables easier and faster wire installation
  • Rounded edges keep hands and wires free of abrasion
  • Non-slip cover does not slide easily and resists vibration
  • Flush cover attaches flush with sidewall for finished look
  • Dual score lines are designed to yield clean breakoffs at the base of the slot and the duct
  • Versatile North American and DIN standard mounting holes enables same duct for multiple applications
