NMLT7590 Arlington Industries, Inc.
Arlington Industries, Inc. NMLT7590 ARLNMLT7590
Send Print
  1. pin-int

ARLNMLT7590

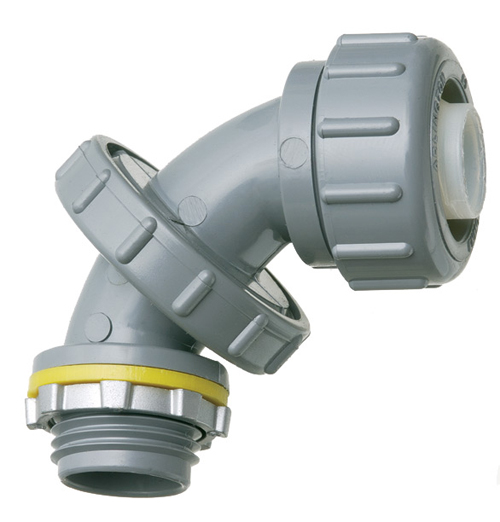

Arlington NMLT7590 3/4" Non-Metallic Push-On Liquidtight Zero to 90deg Connector, Gray

  • Manufacturers: Arlington Industries
  • Brand Name: Arlington Industries, Inc.
  • BPN: ARLNMLT7590
  • MPN: NMLT7590
  • UPC:018997062604
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Zero to 90 degree non metallic liquid tight connector for type B only. 3/4" Trade Size. Adjusts for all angles from 0 to 90 degrees by simply loosening the center nut, twist to the correct angle and then retightening the nut.

Application      :      Outdoor, Non Metallic Liquid Tight Conduit Type B
Brand Name      :      Arlington Industries, Inc.
Color/Finish      :      Gray
Color      :      Gray
Connection      :      External Threaded
Country of Origin      :      USA
Diameter      :      19.05 mm
Form      :      Form B
Height      :      2.82 Inch
Item Name      :      Conduit Connector
Knockout Size      :      3/4 in
Length      :      89.916 mm
Material      :      Plastic
Package Quantity      :      10 pc
Size      :      3/4 in
Standards      :      UL and CSA
Sub Brand      :      Zero to 90
Trade Size      :      3/4 Inch
Trade Slang      :      018997062604, Liquidtight Connector, NM Liquidtight Connector, ARLNMLT7590, Arlington, NMLT7590, Liquidtight Connectors - Non-Metallic - Zero to 90° Adjustable, Liquidtight - Flex, MC, NM-B, Liquidtight, Flex Fittings, Fittings
Type      :      90°

Specifications

Basic Information

  • UPC: 018997062604
  • Unit Packaging: 10pcs
  • Standard Packaging: 50pcs
  • Country of Origin: United States
  • Listing: UL, CSA

Physical Information

  • Weight: 0.126 lbs/each
  • Height: 2.820"
  • Width: 3.250"
  • Color: Gray
  • Material(s): UV-Rated Plastic

Technical Information

  • Adjustable: Yes - Adjusts from 0° to 90°
  • Conduit Type: Non-Metallic Liquid Tight Conduit, Type B Only
  • Knockout Size(s): 3/4"
  • Liquid-Tight Cable Size: 3/4"
  • Trade Size: 3/4"
  • pdfSpec Sheet https://www.ideadigitalcontent.com/files/11196/ID-SPE-v1-NMLT7590.pdf
