PCT-2-600 Ilsco
Ilsco PCT-2-600 ILSPCT2600
Send Print
  1. pin-int

ILSPCT2600

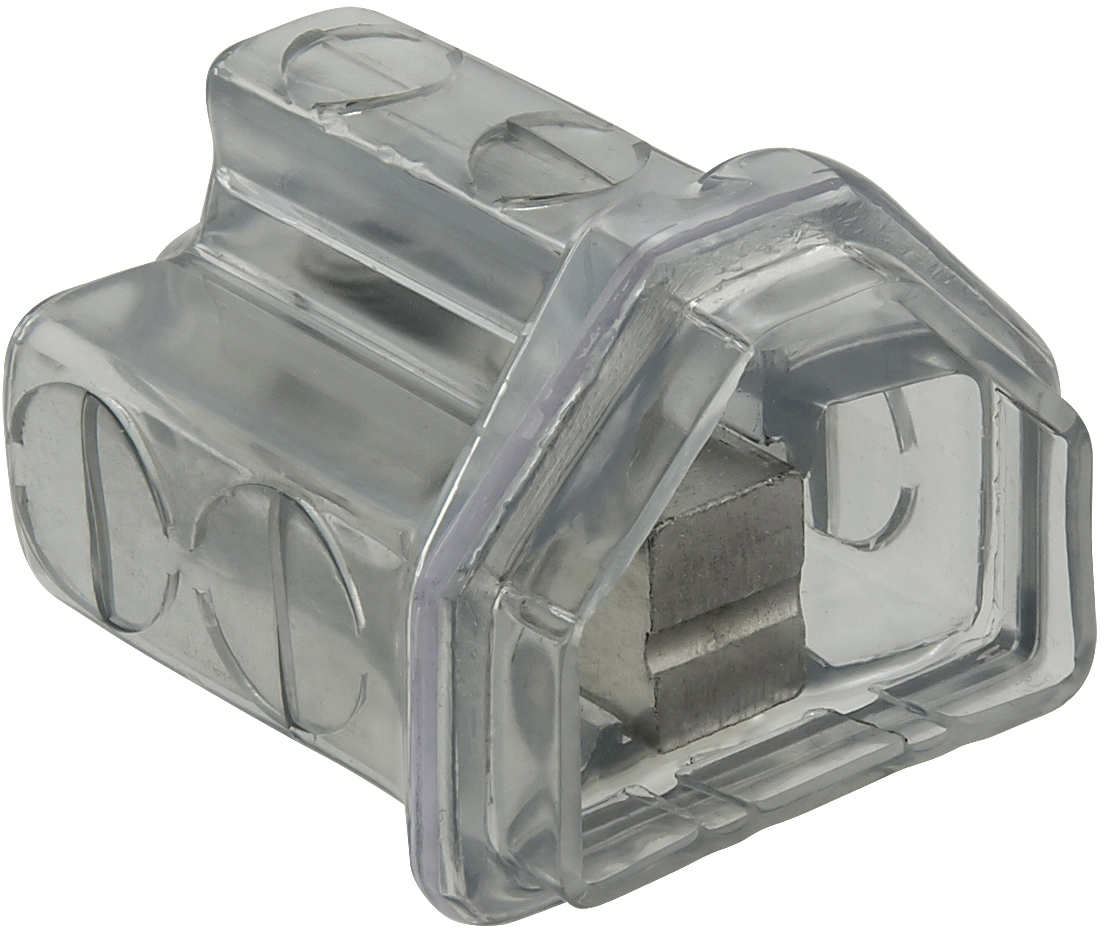

Ilsco PCT-2-600 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 600-2, 2 Ports, Tin Plated, UL, CSA

  • Manufacturers: ILSCO
  • Brand Name: Ilsco
  • BPN: ILSPCT2600
  • MPN: PCT-2-600
  • UPC:783669700640
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 600 kcmil - 4 Str, Contains DE-OX®, 2 conductors, 2 ports/wireways, Plastisol insulation, Drive Type Main 3/8 Internal Hex, rated for 600 V, primary color Clear, 1 poles,

Amperage Rating      :      CU:475
Amperage      :      CU:475
Application      :      Insulated Multi-Tap Connector
Brand Name      :      Ilsco
Carton Qty      :      3
Color/Finish      :      Clear
Color      :      Clear
Conductor Material      :      Aluminum,Copper
Conductor Range      :      AL Solid (Primary, run, main, line):NA;CU Solid (Primary, run, main, line):NA;CU Stranded (Primary, run, main, line):600 kcmil - 4 Str;AL Stranded (Primary, run, main, line):600 kcmil - 4 Str
Conductor Size      :      4 AWG-600 kcmil
Conductor Type      :      Stranded
Connection Type      :      Mechanical
Connection      :      Mechanical
Dimensions      :      3.17 in L x 3.2 in W x 3.27 in H
Environmental Conditions      :      Cold temperature rated to -45°C
Finish      :      Tin Plated
Height      :      3.115 Inch
Insulation      :      Plastisol
Item Name      :      Multi-Tap Connector
Length      :      3.248 Inch
Material      :      Aluminum
Number of Conductors      :      2
Standards      :      CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed
Stud Size      :      3/8 in
Sub Brand      :      ClearTap®
Temperature Rating      :      90 degrees C
Trade Slang      :      783669700640, connector, multi-tap, ILSPCT2600, Ilsco, PCT-2-600, Connector Blocks - Insulated - Two Sided Wire Entry, Connector Blocks - Insulated, Distribution & Terminal Blocks, Connectors, Crimps, Termination
Type      :      PCT:MULTI TAP INS AL/CU
Voltage Rating      :      600 Volt
Voltage      :      600 Volt

Specifications

  • Height: 3.115 in | 79.121 mm
  • Length: 3.248 in | 82.4992 mm
  • Weight: 0.979 lbs
  • Width: 3.147 in | 79.9338 mm

Additional Class Attributes

  • Connection: Mechanical
  • Contains DE-OX®: Yes
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 2
  • Number of Usable Ports: 2

Dimensions

  • Drive Size Main: 3/8
  • Drive Type Main: Internal Hex
  • Height BX (IN): 4.25
  • Height (mm): 79.121
  • Length (mm): 82.4992
  • Max Insulation OD (IN): 1.172
  • Max Insulation OD (mm): 29.7688
  • Weight BX (LB): 3.2505
  • Width BX (IN): 7.75
  • Width (mm): 79.9338

Material and Finish

  • Conductor Material: Copper, Aluminum
  • Connector Finish: Tin
  • Insulation: Plastisol
  • Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Wire Binding Hardware Material: Aluminum

Bolt and Screw Sizes

  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 13/16
  • Wire Binding Torque: 375

Conductor Ranges

  • Conductor Range AL Stranded (Primary, run, main, line): 600 kcmil - 4 Str
  • Conductor Range CU Stranded (Primary, run, main, line): 600 kcmil - 4 Str

Color

  • Color: Clear

Additional Technical Specifications

  • Connector Amperage Rating CU (Derated where applicable): 475 Amps
  • Conductor Type: Stranded

Voltage

  • Voltage Rating: 600 V

Testing Standards

  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • UL Control Number: 453G
  • UL / CULUS Specification: UL 486A/B Listed
  • UL File Number: E6207

Environment and Temperature

  • Environmental Conditions: Cold temperature rated to -45°C
  • Flammability Rating: Insulation rated per UL 94
  • Temperature Rating: 90°C

General

  • Bag Quantity: 1
  • Carton Quantity Description: STD PACK QTY 3
  • Dual Rated: Yes
  • NEMA Code: S-588-4
  • UPC Code: 78366970064
  • pdfSpec Sheet https://media.distributordatasolutions.com/web_ilsco_v2/2021q4/documents/a0d1d7271359480baeb78d3406723f5d4a8dbede.pdf
