BW4 B-Line
B-Line BW4 BEEBW4
Send Print
  1. pin-int

BEEBW4

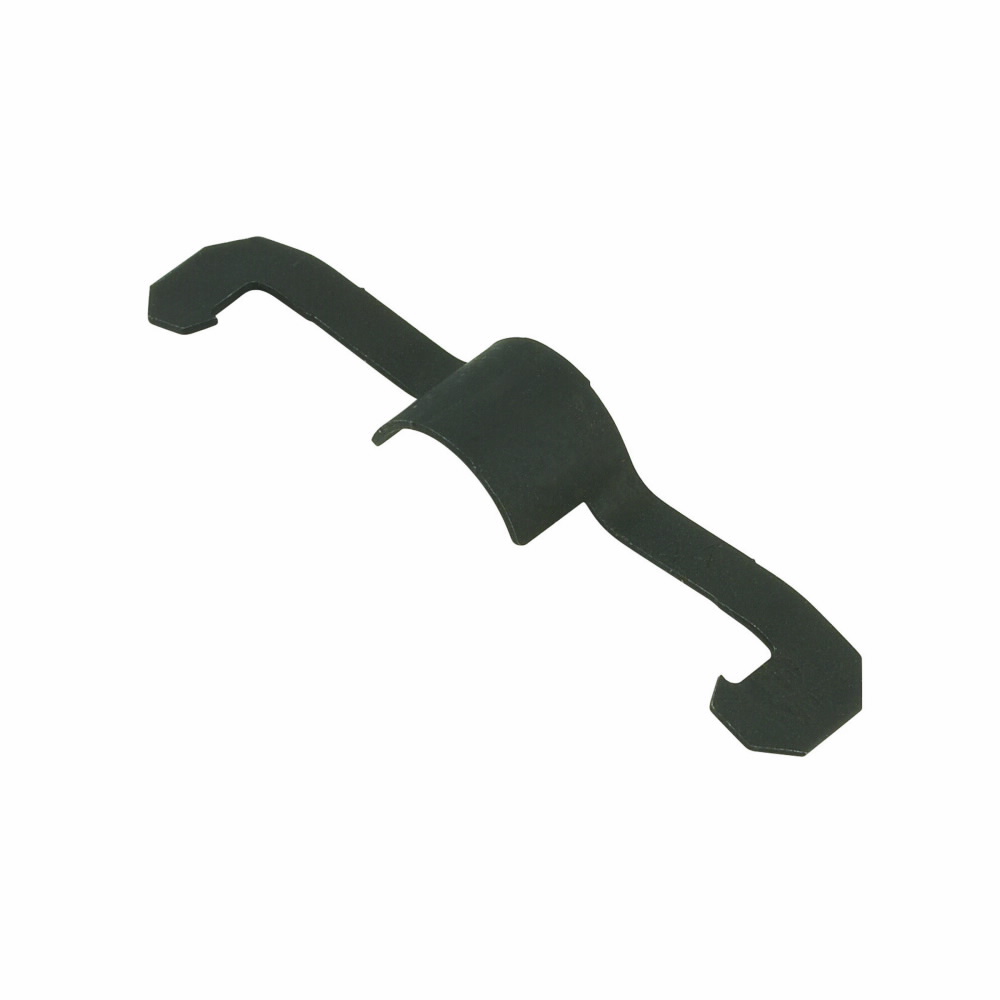

B-Line BW4 Multi-Size Wire Fastener

  • Manufacturers: Eaton (Group)
  • Brand Name: B-Line
  • BPN: BEEBW4
  • MPN: BW4
  • UPC:781011197056
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton B-Line series all threaded rod and drop wire supports, Conduit and cable, 1" Height, 1" Length, 1" Width, 0.009lbs, Multi-size wire fasteners, #12 through #8 rod size, 50 lbs vertical, 25 lbs horizontal load capacity

Application      :      Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherCommercial / Institutional Buildings / Structures - Lighting and Lighting ControlsCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - Aftermarket
Brand Name      :      B-Line
Cable Size      :      12 AWG
Cable Type      :      AC/MC
Dimensions      :      1.0000 IN X 1.0000 IN X 1.0000 IN
Height      :      1 Inch
Length      :      1 Inch
Material      :      Steel
Standards      :      UL/CUL listed
Standard      :      UL (Canada And US)
Sub Brand      :      B-Line series
Trade Slang      :      781011197056, BLIBW4, Eaton B-Line, BW4, Conduit Hangers From Wire/Rod & Beam, Conduit, Cable, Clips, Clamps, Hangers, Fittings, bat wing, Cooper B-Line DATA, B-Line
Type      :      Multi-size Wire Fasteners

Specifications

General

  • UPC: 781011197056
  • Product Length/Depth: 1 in
  • Product Height: 1 in
  • Product Width: 1 in
  • Product Weight: .009 lb
  • Certifications: UL/CUL listed

Model

  • Product Category: Conduit and cable
  • Type: Multi-size wire fasteners

Specifications

  • Load capacity: 50 lbs vertical, 25 lbs horizontal
  • pdfSpec Sheet https://media.distributordatasolutions.com/csv_eaton/2021q3/documents/4781fd0eb6a8375328b3cc07a35781ff096f4674.pdf
