BFV14-8Q Highland Electrical, Inc.
Highland Electrical, Inc. BFV14-8Q MMMBFV148Q
Send Print
  1. pin-int

MMMBFV148Q

3M BFV14-8Q V 25/Bag Block Fork Highland Bag

  • Manufacturers: 3M
  • Brand Name: Highland Electrical, Inc.
  • BPN: MMMBFV148Q
  • MPN: BFV14-8Q
  • UPC:051128599921
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

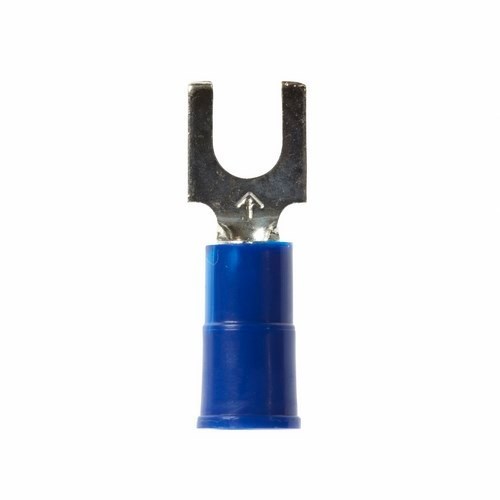

3M™ Highland™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Brand Name      :      Highland Electrical, Inc.
Conductor Size      :      16-14 AWG
Overall Length      :      0.85 in
Trade Slang      :      051128599921, terminals, terminal, fork terminal, fork terminals, Blue fork, block fork, MMMBFV148Q, 3M, BFV14-8Q, Block Forks - Vinyl-Insulated, Fork Terminals, Small Terminals, Forks, Rings, Connectors, Crimps, Termination

Features

  • Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Stud size #8
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Specifications

  • Connection Width (Imperial): 0.164 in
  • Connection Width (Metric): 4.166 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 14 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 16 AWG
  • Overall Length (Imperial): 0.85 in
  • Overall Length (Metric): 21.59 mm
  • Overall Width (Imperial): 0.3 in
  • Overall Width (Metric): 7.62 mm
  • Product Key: HIGH HIGHLAND BAGGED TERMINALS FKD
  • Terminal Type: Fork
  • pdfSpec Sheet http://images.salsify.com/image/upload/s--0v_ypEY8--/a072616a1981497f7ccdc334fb5f29257bf67c38.pdf
