H101W RAB Design Lighting
Send Print
  1. pin-int

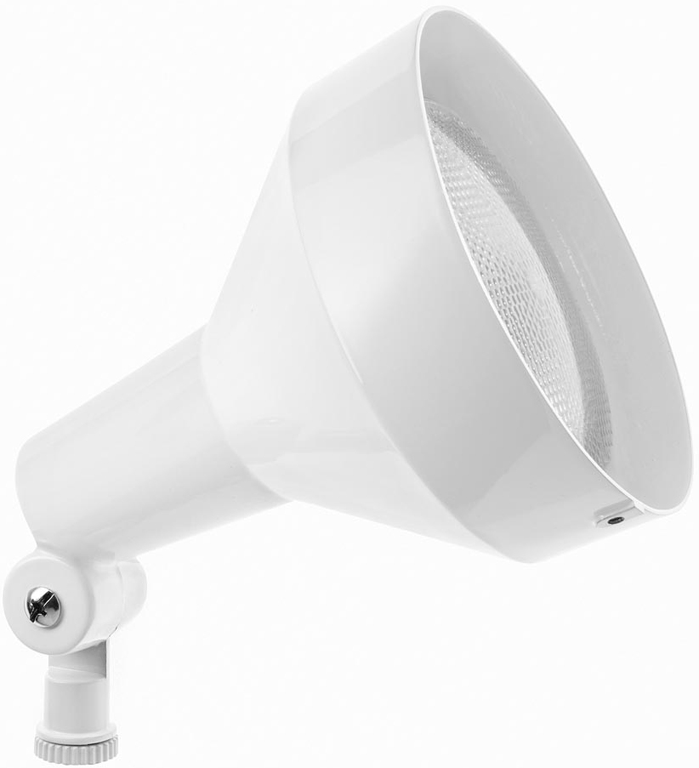

RAB H101W 150 W 5-5/8 x 7 Inch White Die-Cast Aluminum Incandescent Floodlight Fixture

  • Manufacturers: Rab Design Lighting
  • Brand Name: RAB Design Lighting
  • BPN: RABH101W
  • MPN: H101W
  • UPC:019813101538
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Landscape Flood H System Bell Style 150W Par38 White

Brand Name      :      Rab Design Lighting
Bulb Shape      :      PAR38
Color      :      Black
Input Wattage      :      0.00 W
Lamp Type      :      PAR38
Trade Slang      :      019813101538, RABH101W, RAB, H101W, Landscape - Flood Lights, Landscape Lighting, Outdoor Lighting - Traditional, Lighting, Lighting Controls
Type      :      LANDSCAPE
Voltage Rating      :      120 Volt
Voltage      :      120 Volt
Wattage      :      150 Watt


  • Lamp recessed 1" from lip for side glare reduction
  • Set screw for hood, grill or visor attachment
  • Large Silicone rubber gasket provides weatherproof protection around the lamp and socket
  • Caution: When using as an uplight in outdoor applications a Hood or a Visor must be used
  • HV1 Visor with integral guard and glass lens for maximum glare reduction and lamp protection
  • HG1 Guard: Protects lamp from damage and vandalism
  • HH1 Hood with glass lens reduces glare and protects lamp from water and impact damage
  • Buy American Act Compliance


  • Weight: 1.3 lbs


  • UL Listed: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground. When using as an uplight in outdoor applications, a Hood or a Visor must be used.


  • Watts: 150W


  • Swivels: Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts.
  • Housings: Die-cast aluminum with powder coat finish
  • Gaskets: High-temperature silicone rubber extends around both socket and lamp


  • Sockets: Porcelain with all copper current carrying components
  • pdfSpec Sheet https://media.distributordatasolutions.com/web_rab_lighting_v2/2022q1/documents/f4f890f5cdb0cd3fc5857ce90ad7f51e30c01e3a.pdf
