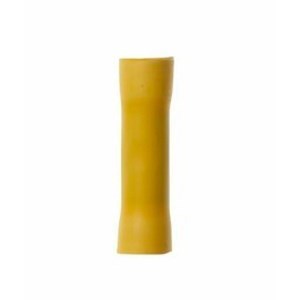

3M BSV10Q 25/Bag Vinyl Butt Connector
- Manufacturers: 3M
- Brand Name: Scotchlok
- BPN: MMMBSV10Q
- MPN: BSV10Q
- UPC:051128599969
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
3M™ Highland™ Color-Coded Butt Splice Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.
| Brand Name | : | Scotchlok |
| Conductor Size | : | 12-10 AWG |
| Material | : | Plastic |
| Max Operating Temperature | : | 221 degrees F |
| Overall Length | : | 1.02 in |
| Trade Slang | : | 051128599969, terminals, terminal, butt splice, butt splices, butt connector, insulated splice, insulated butt connector, insulated butt splice, MMMBSV10Q, 3M, BSV10Q, Butt Connectors - Vinyl-Insulated, Butt Connectors, Small Terminals, Forks, Rings, Connectors, Crimps, Termination, Squeeze terminal, plug butt, plug bum |
Features
- Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Built-in wire stop for correct positioning
- Accommodates wire sizes 12 to 10 AWG
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- 1000/case
- 25/bag
Specifications
- Barrel Inside Diameter: 0.25 Inch
- Barrel Length (Imperial): 0.25 Inch
- Barrel Length (Metric): 6.35 mm
- Barrel Style: Butted
- Body Material: Copper Alloy
- Conductor Size: 12 - 10 AWG
- Conductor Sizes: 12 - 10 AWG
- Connector Type: Butt
- CSA File Number: LR22190
- Insulation Material: Vinyl
- Material: Plastic
- Maximum Conductor Size: 12 AWG
- Maximum Insulation Outer Diameter (Metric): 3.7 mm
- Maximum Insulation Outside Diameter: 0.145 in
- Maximum Operating Temperature (Celsius): 105 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
- Maximum Recommended Voltage Rating: 600 V
- Maximum Wire Gauge: 10 AWG
- Minimum Conductor Size: 10 AWG
- Minimum Wire Gauge: 12 AWG
- Overall Length (Imperial): 1.02 in
- Overall Length (Metric): 25.908 mm
- Product Key: HIGH HIGHLAND BAGGED TERMINALS FKD
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Terminal Style: Standard
- Terminal Type: Butt Connectors
- UL File Number: E23438
