1374-1
APPLIANCE DEVICES
https://www.billows.com/3361175/product/LEV13741
https://www.billows.com/3361175/product/LEV13741
LEV13741

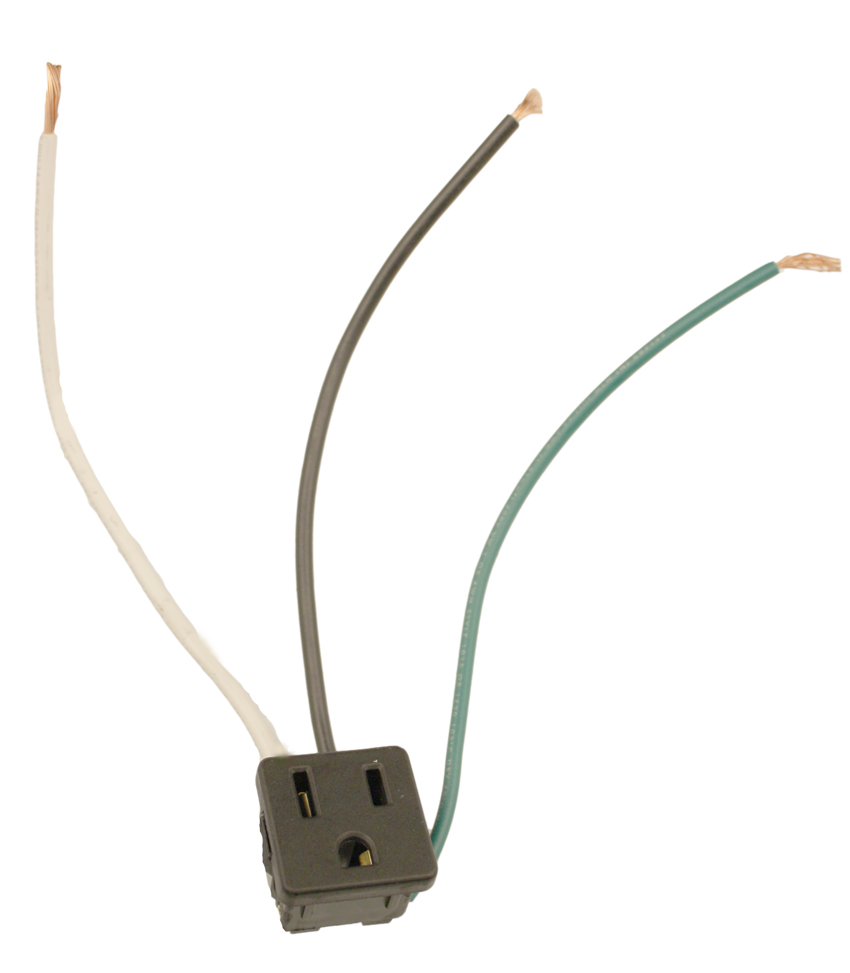

Leviton 1374-1 Snap-In Receptacle
- Manufacturers: Leviton
- Brand Name: APPLIANCE DEVICES
- BPN: LEV13741
- MPN: 1374-1
- UPC:078477170250
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Snap-In Receptacle, Straight Blade, Grounding, Leads 14GA 6 Inch Long Wired, Black
| Amperage Rating | : | 15 Amp |
| Amperage | : | 15 Amp |
| Application | : | Commercial |
| Body Material | : | Thermoplastic |
| Brand Name | : | APPLIANCE DEVICES |
| CSA | : | LR-2781 |
| Color | : | Black |
| Conductor Size | : | 14 AWG |
| Connection Type | : | Wire Lead |
| Connection | : | Wire Lead |
| Country of Origin | : | Mexico |
| Device Type | : | Snap-In |
| Environmental Conditions | : | Flammability (Rated V-2 Per UL94) |
| Face Material | : | Thermoplastic |
| Grounding | : | Grounding |
| Material | : | Thermoplastic |
| Mounting Type | : | Snap-In |
| Mounting | : | Snap-In |
| NEMA Rating | : | 5-15R |
| NEMA | : | 5-15R |
| Number of Poles | : | 2 Pole |
| Number of Wires | : | 3 Wire |
| Size | : | 16 H x 16 W x 0.94 D IN |
| Standards | : | NOM Certified (057);UL Listed (File E13399);CSA Certified (LR-2781) |
| Standard | : | CSA,CSA,UL,UL |
| Sub Brand | : | APPLIANCE DEVICES |
| Temperature Rating | : | -40 To 60 °C |
| Termination Type | : | Leads 14GA 6 Inch Long |
| Trade Slang | : | 078477170250, 1374-1, LEV10213741, covenience, recept, receptacle, convenience recept, LEV13741, Leviton, 15 Amp - Straight Blade Receptacles, 10-20 Amp Straight Blade Receptacles, Straight Blade Devices - 10-20 Amp, Wiring Devices |
| Type | : | Snap-In |
| Voltage Rating | : | 125 Volt |
| Voltage | : | 125 Volt |
| Warranty Length | : | 2 yr |
Specifications
- Country of Origin: Mexico
Spec Sheet
