10250H5200 EATON
EATON 10250H5200 CHM10250H5200
Send Print
  1. pin-int

CHM10250H5200

ETN 10250H5200 10250 STD. DUTY RECT

  • Manufacturers: Eaton (Group)
  • Brand Name: EATON
  • BPN: CHM10250H5200
  • MPN: 10250H5200
  • UPC:782113203096
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

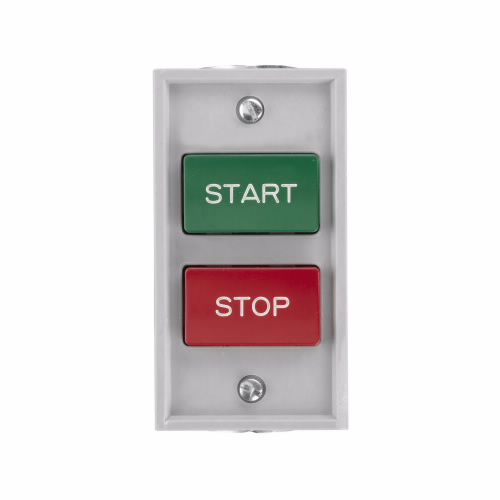

Eaton 10250T pushbutton,Eaton 30.5 mm, Heavy-Duty Assembled Control Station, 10250H, NEMA 1, Red, Flush, Die cast, START/STOP, Surface, Two element

Actuator      :      Flush
Application      :      Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name      :      Eaton
Dimensions      :      2.2000 IN X 2.4000 IN X 2.0000 IN
Duty Rating      :      Heavy Duty
Enclosure Material      :      Die Cast
Enclosure Standard      :      NEMA 1
Height      :      2 Inch
Length      :      2.2 Inch
Mounting Type      :      Surface
Mounting      :      Surface
Size      :      30.5 mm
Standards      :      CSA Certified,UL 505,CE Marked

Specifications

  • Enclosure material: Die cast
  • Product category: Assembled control station
  • Series: 10250H
  • Type: 30.5 mm, Heavy-Duty
  • Actuator color: Red
  • Legend: START STOP
  • Number of elements: 2
  • Enclosure: NEMA 1
  • Mounting method: Surface
  • Actuator: Flush

General

  • UPC: 782113203096
  • Product Length/Depth: 2.2 in
  • Product Height: 2 in
  • Product Width: 2.4 in
  • Product Weight: .7 lb
  • Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Compliances: CE Marked
  • Certifications: CSA Certified
  • Catalog Notes: Black Bezel
  • pdfSpec Sheet https://media.distributordatasolutions.com/csv_eaton/2021q3/documents/62902d0b94e8dbdc29fbccee92fbf28c85662ea2.pdf
