6204-41-00 AFC Cable Systems
Send Print
  1. pin-int

LQC100ULR

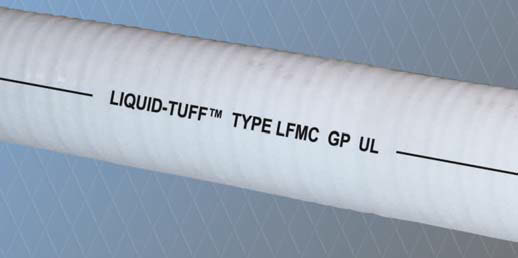

AFC Cable Systems Liquid-Tuff™ 6204-41-00 Liquid Tight Flexible Metal Conduit, 1 in Trade, 1.041/1.066 in ID x 1.29/1.315 in OD, 400 ft Reel L, Steel

  • Manufacturers: AFC Cable Systems
  • Brand Name: AFC Cable Systems
  • BPN: LQC100ULR
  • MPN: 6204-41-00
  • UPC:077680233219
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

The type UL liquidtight flexible steel conduit shall be formed from a zinc coated galvanized low carbon steel strip having a uniform width and thickness. The construction shall be in accordance with UL 360 and CSA C22.2 No. 56 requirements. The finished type LFMC dimensions shall be in accordance with UL 360 and CSA C22.2 No. 56. A rugged moisture, oil and sunlight resistant polyvinyl chloride (PVC) jacket shall be applied directly over the flexible metal conduit with a wall thickness in accordance with UL 360 and CSA C22.2 No. 56 which are summarized.

AFC Cable Systems Liquid-Tuff™ Liquid Tight Flexible Metal Conduit, 1 in, 1.041/1.066 in Inside Dia, 1.29/1.315 in Outside Dia, 400 ft Reel Length, 6-1/2 in Bend Radius, 600 VAC, Flexible Flexibility, -30 to 80 deg C, Steel, Gray, Hot Dipped Zinc Galvanized

Bend Radius      :      6-1/2 in
Color      :      Gray
Finish      :      Hot Dipped Zinc Galvanized
Flexibility      :      Flexible
Inside Diameter      :      1.041/1.066 in
Length      :      400 ft Reel
Material      :      Steel
Outside Diameter      :      1.29/1.315 in
Temperature Rating      :      -30 to 80 deg C
Trade Size      :      1 in
Voltage Rating      :      600 VAC
  • UL bonding strip 3/8 to 1-1/4 in for grounding
  • Sunlight-resistant
  • Flame-retardant PVC jacket
  • Hot dipped zinc galvanized low carbon steel core
  • UL liquidtight all sizes
  • pdfSpecification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_12d627cbcee10a8c6fde842142c64784487a2c9468748f68b75093ad1333fd33.pdf
