G3006E Wiremold
Send Print
  1. pin-int

WIRG3006E

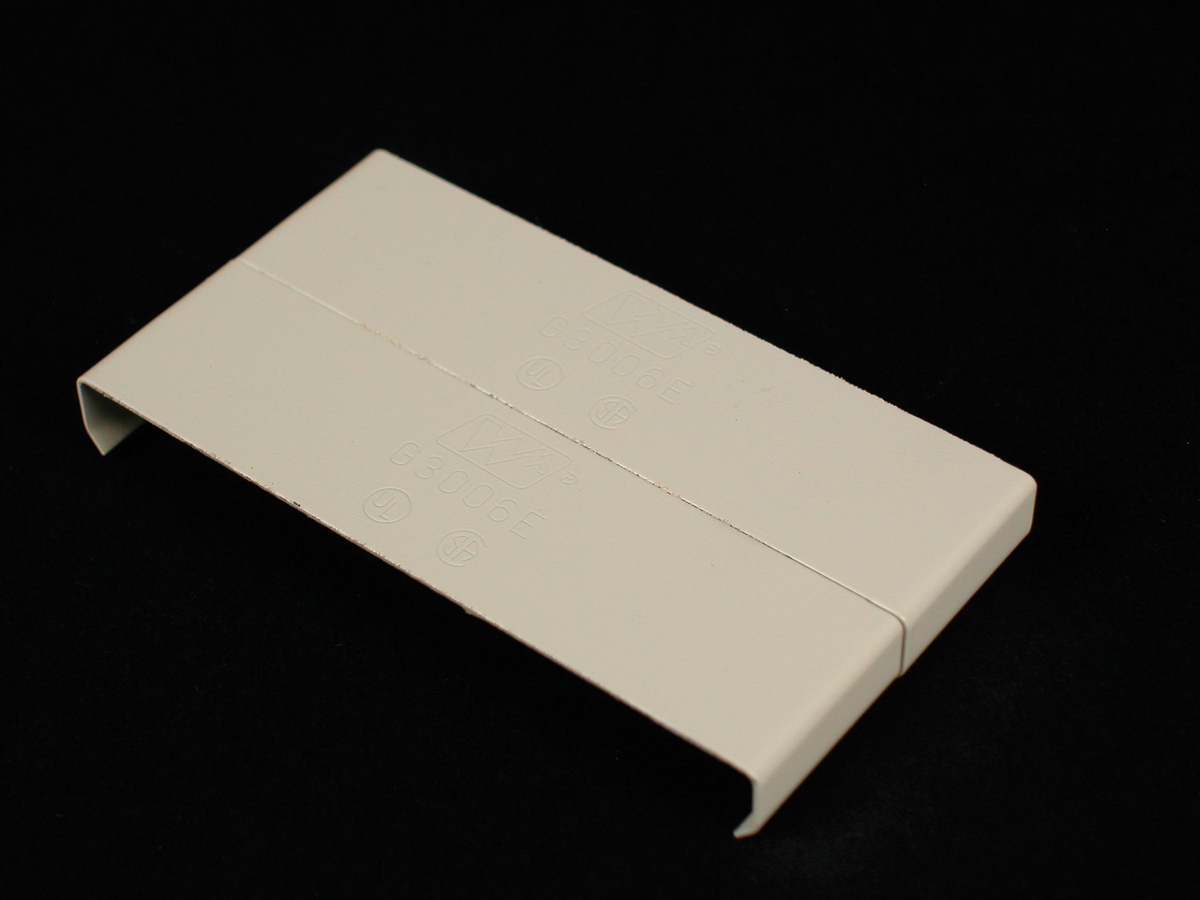

Wiremold G3006E Gray Steel Cover Clip

  • Manufacturers: Legrand
  • Brand Name: Wiremold
  • BPN: WIRG3006E
  • MPN: G3006E
  • UPC:786776189438
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

The Wiremold 3000 Series Steel Raceway provides wiring capacities for small to medium size installations. Power or data/communication devices can be wired into the raceway for a flush appearance satisfying both aesthetic and functional requirements. The 3000 Series Steel Raceway is ideally suited for wiring applications in frequently changing environments such as labs, hospitals and other industrial applications.

Application      :      Commercial, Office
Brand Name      :      Wiremold
Buy American Compliant      :      Y
Certifications      :      CULUS,NAFTA,ROHS
Color      :      Gray
Component Type      :      Fittings & Accessories
Country of Origin      :      USA
Dimensions      :      2-13/16 in L
For Use With      :      3000 Series Raceway
Item Name      :      Cover Clip
Jacket Color      :      Ivory, Gray
Length      :      2-13/16 Inch
Material      :      Steel
Outside Diameter      :      0.75 in
Product Series      :      3000
Size      :      3/4 in
Standards      :      cULus Listed File E4376 Guide RJBT, Fittings File E41751 Guide RJPR, Base and Blank Cover Meets Article 386 of NEC, Meets Section 12-600 of CEC
Sub Brand      :      Wiremold
Trade Slang      :      786776189438, 3000, G3006E, Cover Clip, WMDG3006E, Wiremold, 2-Piece Small Raceway - Clips/Connectors/Couplings, 2-Piece Small Raceway & Accessories, Raceway - Metallic, Conduit, Ducts, Raceways
Type      :      Raceway
Voltage Rating      :      600 Volt
Voltage      :      600 Volt

Features

Certifications

  • NAFTA Compliant
  • cULus Listed
  • RoHS Compliant
  • Covers seam where two pieces of 3000 Series Raceway Cover come together.

Specifications

  • Product Line: Wiremold

Specifications

  • Country of Origin: United States
  • Standard: cULus Listed Raceway:File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Blank Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC.
  • Special Features: Mounts easily on walls, modular furniture, under raisedfloors, or over ceiling, speeds installation: providesflexibility to bring wiring to points of use. Removable cover, provides access to wiring.
  • Type: Raceway
  • Voltage: 600.0 V
  • Application Sector: Commercial
  • linkSpec Sheet https://legrand.webdamdb.com/directdownload.php?ti=55653953&tok=BTvBQtNtzVO9nnpyS0iNBARR
  • linkInstallation / Instruction Manual https://legrand.webdamdb.com/directdownload.php?ti=55653214&tok=wwszCq94vwO7sEEQ/N4YJARR
