NSIWWCRB

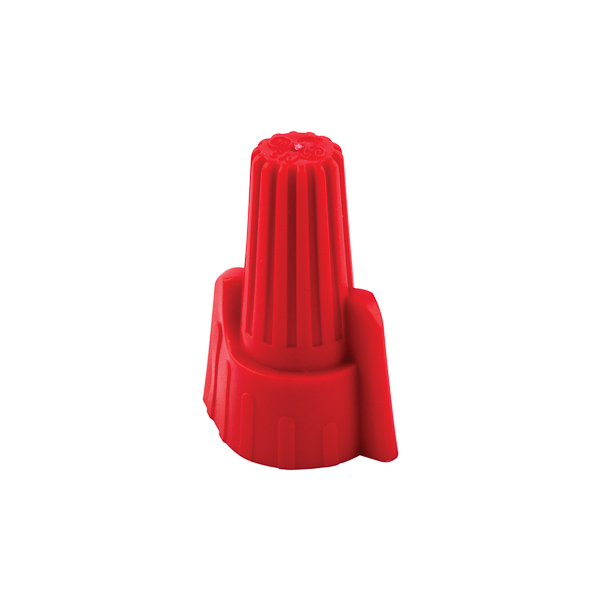

NSI Easy-Twist™ WWC-R-B Twist-On Wire Connector, Swept Back Winged Shell, Fixed/Square Wire Spring, 18 to 8 AWG Copper Wire, Thermoplastic

  • Manufacturers: NSi Industries
  • Brand Name: NSI
  • BPN: NSIWWCRB
  • MPN: WWC-R-B
  • UPC:662381141125
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

NSI Easy-Twist™ Twist-On Wire Connector, Series: WWC, Swept Back Winged Shell Style, Fixed/Square Wire Spring, Copper Wire, 18 to 8 AWG Wire, 600 VAC, Specifications: 1 Conductor, 0.354 in Dia Top, 105 deg C, Thermoplastic, Red, 1.25 in H x 0.906 in W

Color      :      Red
Dimensions      :      1.25 in H x 0.906 in W
Material      :      Thermoplastic
Series      :      WWC
Shell Style      :      Swept Back Winged
Specifications      :      1 Conductor, 0.354 in Dia Top
Spring Type      :      Fixed/Square Wire
Temperature Rating      :      105 deg C
Voltage Rating      :      600 VAC
Wire Size      :      18 to 8 AWG
Wire Type      :      Copper
  • Flame retardant UL 94V-2 thermoplastic shell that provides excellent electrical insulation
  • Easy-twist winged twist-on wire connectors have deep surface ridges to provide better grip
  • Fixed, precise square wire spring provides secure gripping of conductors
  • Deep skirt entry provides protection from flashover and shorts
  • 1000 V maximum in fixtures and signs
  • Compact design ensures proper installation, especially in tight spaces
  • Threaded funnel entry guides the wires into the connector easily
  • Pre-twisting of wires is not necessary
  • Zinc plated springs for low contact resistance
  • (3) 16 to (5) 12 AWG wire combinations
