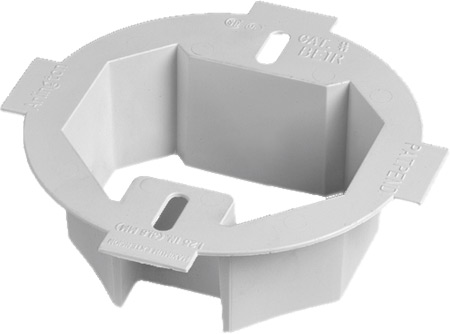

Arlington BE1R Round Box Extender, Plastic

  • Manufacturers: Arlington Industries
  • Brand Name: Arlington Industries, Inc.
  • BPN: ARLBE1R
  • MPN: BE1R
  • UPC:018997401618
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Ceiling Box extender. for setback ceiling boxes. Fits 3-1/2 and 4" round octagonal boxes. Extends box up to 1-1/2 and has 2 hour fire rating.

Application      :      For Built-in Installation Box
Brand Name      :      Arlington Industries, Inc.
Color/Finish      :      White
Color      :      White
Country of Origin      :      USA
Depth      :      1-1/2 Inch
For Use With      :      3-1/2 in and 4 in Round or Octagonal Ceiling Boxes
Height      :      4.85 Inch
Item Name      :      Box Extender
Knockouts      :      No
Material      :      Plastic
Mounting      :      Flush
Number of Gangs      :      1 Gang
Package Quantity      :      25 pc
Size      :      L(4.850) x W(4.350) x H(1.500) IN
Standards      :      UL Listed, CSA Certified, 2014 NEC Article 314.20
Trade Slang      :      018997401618, Box Extender, Flash Ring, ARLBE1R, Arlington, BE1R, Non-Metallic Boxes - Extensions, Non-Metallic Boxes - Accessories, Boxes - Non-Metallic, Boxes, Enclosures, add a depth, round spark ring, goof ring, Arc ring, Arc shield
Type      :      Ceiling Box Extender

Specifications

Basic Information

  • UPC: 018997401618
  • Unit Packaging: 25pcs
  • Standard Packaging: 25pcs
  • Country of Origin: United States
  • Listing: cULus

Physical Information

  • Weight: 0.058 lbs/each
  • Height: 4.850"
  • Width: 4.350"
  • Color: White
  • Material(s): Plastic
  • pdfSpec Sheet https://media.distributordatasolutions.com/arlington/2020q2/documents/d333b74214d518199cda66e182069681a44ee435.pdf
