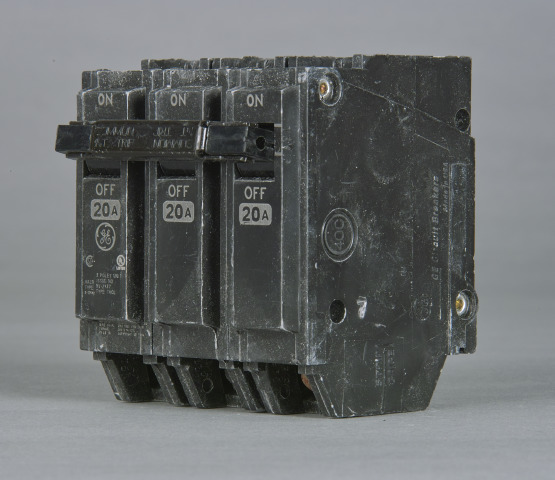

GE Q-Line® THQL32060 Type THQL Compact Molded Case Circuit Breaker, 240 VAC, 60 A, 10 kA Interrupt, 3 Poles, Non-Interchangeable Thermal Magnetic/LI Trip

  • Manufacturers: General Electric
  • Brand Name: GE
  • BPN: GECTHQL32060
  • MPN: THQL32060
  • UPC:783164012132
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QL breakers are plug-in versions of the Q-Line® used for connection to loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

GE Q-Line® Molded Case Circuit Breaker, Type THQL Compact, 240 VAC, 60 A, 50/60 Hz Frequency, 10 kA Interrupt, Q-Line Frame, Non-Interchangeable Thermal Magnetic/LI Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 8 to 3 AWG Wire, Plug-In Mounting, 10 to 50 deg C, 3-9/32 in H x 3 in W x 2-3/8 in D Dimensions, Plastic

Actuator Type      :      Pivot/Toggle Handle
Amperage Rating      :      60 A
Connection Type      :      Load Lug
Dimensions      :      3-9/32 in H x 3 in W x 2-3/8 in D
Frame      :      Q-Line
Frequency Rating      :      50/60 Hz
Interrupt Rating      :      10 kA
Material      :      Plastic
Mounting Type      :      Plug-In
Number of Poles      :      3
Phase      :      3
Temperature Rating      :      10 to 50 deg C
Trip Type      :      Non-Interchangeable Thermal Magnetic/LI
Type      :      Type THQL Compact
Voltage Rating      :      240 VAC
Wire Size      :      8 to 3 AWG
  • Molded case is molded from high mechanical and high dielectric strength engineered plastic
  • Trip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON position
  • Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
  • Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
  • VERIFIER™ "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
  • Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
  • Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
  • Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
  • UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring
  • 10 kA at 120 VAC, 10 kA at 120/240 VAC, 10 kA at 240 VAC interrupt rating
