3838AST
Arlington Industries, Inc.
https://www.billows.com/3361418/product/ARL3838AST
https://www.billows.com/3361418/product/ARL3838AST
ARL3838AST

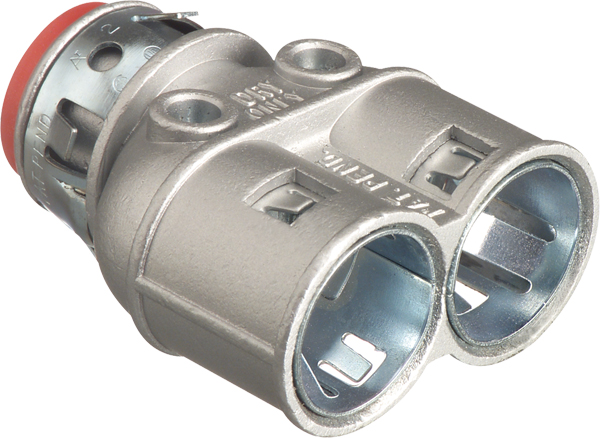

Arlington 3838AST 1/2" Snap²It Insulated Duplex Connector, Flex/AC/MC, .405 to .612
- Manufacturers: Arlington Industries
- Brand Name: Arlington Industries, Inc.
- BPN: ARL3838AST
- MPN: 3838AST
- UPC:018997362308
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Duplex zinc die-cast, 3/8" Knockout MC cable connector snaps quickly on to the conduit with an internal spring steel clip and then snaps into knockout with an external spring steel clip, no tools required. Concrete tight when taped. Provided with insulated throat.
| Application | : | AC/MC/HCF/MCI-A/AC90/Flex steel and aluminum |
| Brand Name | : | Arlington Industries, Inc. |
| Cable Type | : | AC, MC, HCF/MCI-A, AC90 Steel and Aluminum |
| Color/Finish | : | Silver |
| Color | : | Silver |
| Connection | : | Snap-On |
| Construction | : | Die-cast |
| Country of Origin | : | USA |
| Height | : | 2.154 Inch |
| Item Name | : | Duplex Connector |
| Knockout Size | : | 1/2 in |
| Material | : | Zinc Die Cast |
| Package Quantity | : | 25 pc |
| Size | : | 3/8 in |
| Standards | : | cULus Listed, CSA Certified |
| Sub Brand | : | Snap2IT® |
| Throat Type | : | Insulated |
| Trade Size | : | 3/8 Inch |
| Trade Slang | : | 018997362308, AST, MC/AC, duplex, ARL3838AST, Arlington, 3838AST, MC/AC Connectors - Double Barrel, Metal Clad, Armored Cable Fittings, MC, NM-B, Liquidtight, Flex Fittings, Fittings, Mc connector, boom boom |
| Type | : | Snap-on |
Specifications
Basic Information
- UPC: 018997362308
- Unit Packaging: 25pcs
- Standard Packaging: 100pcs
- Country of Origin: United States
- Listing: cULus, CSA
Physical Information
- Weight: 0.108 lbs/each
- Height: 2.154"
- Width: 1.605"
- Color: Silver
- Material(s): Zinc
Technical Information
- Cable Range: (2) 0.405 - 0.612
- Knockout Size(s): 1/2"
- Trade Size: 3/8"
Spec Sheet
