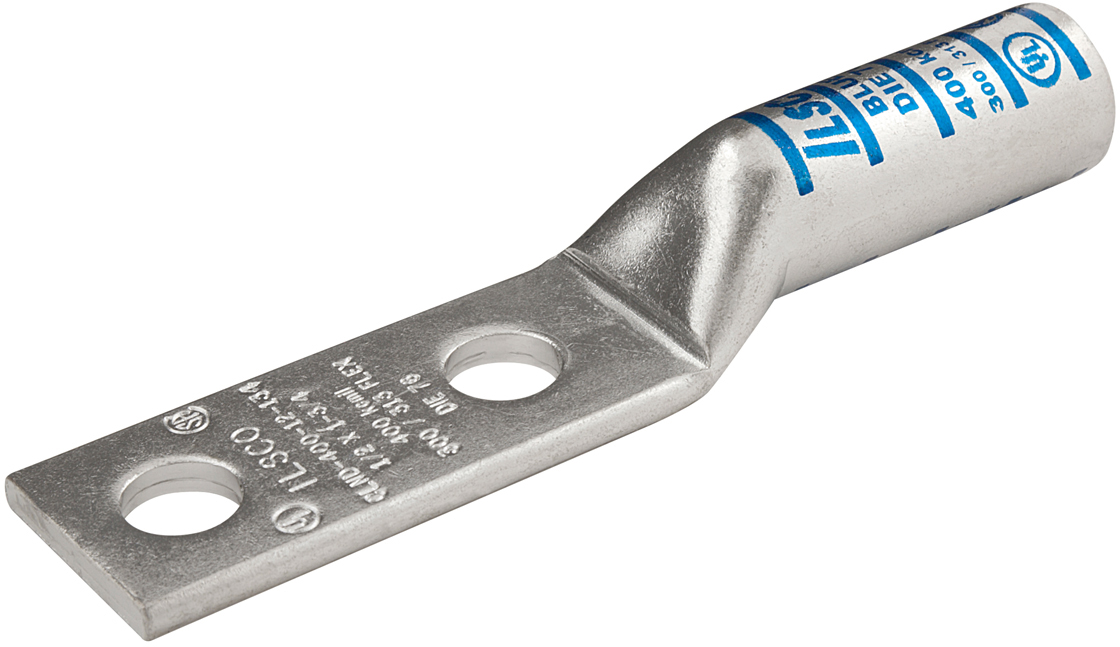

Ilsco CLND-3/0-12-134 SureCrimp® Copper Compression Lug, Conductor Size 3/0, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA

  • Manufacturers: ILSCO
  • Brand Name: Ilsco
  • BPN: ILSCLND3/012134
  • MPN: CLND3/0-12-134
  • UPC:783669639469
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 3/0 Str, no sight window, Square tang end, flex conductor range 2/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Orange, primary color Silver, die index I-50,

Application      :      Copper Compression Lug
Barrel Length      :      1.5 in
Barrel Type      :      Straight, Long Chamfered Entry
Bolt Size      :      1/2 IN
Brand Name      :      Ilsco
Carton Qty      :      10
Color Code      :      Orange
Color Coding      :      Orange
Color      :      Silver
Conductor Material      :      Copper
Conductor Range      :      Conductor Size: 3/0 AWG; Expanded: 3/0-2 AWG
Conductor Size      :      3/0 AWG
Conductor Type      :      Flex,Stranded
Connection Type      :      Compression
Direct Burial Y/N      :      Yes
Finish      :      Electro Tin Plated
Height      :      0.649 Inch
Inside Diameter      :      0.484 in
Insulation      :      NA
Item Name      :      Compression Lug
Length      :      4.939 Inch
Material      :      Copper
Mounting Hole Size      :      0.562 in
Number of Holes      :      2 Hole
Number of Mounting Holes      :      2
Outside Diameter      :      0.609 in
Overall Length      :      4.939 in
Series/Model      :      CLND
Size      :      L:4.939;W:0.885;H:0.649 IN
Standards      :      UL 453G, 467 File Number E6207 Listed, CSA File Number LR-29601 Certified
Strip Length      :      39.674 mm
Stud Size      :      1/2 in
Sub Brand      :      SureCrimp®
Temperature Rating      :      90 °C
Tongue Size      :      0.885 in W
Type      :      CLND:2 HOLE LONG BARREL
Voltage Rating      :      35000 Volt
Voltage      :      35 Volt

Specifications

  • Height: 0.649 in | 16.4846 mm
  • Length: 4.939 in | 125.4506 mm
  • Weight: 0.150082267567641 lbs
  • Width: 0.885 in | 22.479 mm

Additional Technical Specifications

  • Conductor Type: Flex, Stranded

Additional Class Attributes

  • Barrel Marking: Ink
  • Barrel Type: Long
  • Connecting Angle: 180°
  • Connection: Compression
  • Contains DE-OX®: No
  • Flared End: No
  • ILSCOs Die Catalog Number: ILD-50
  • ILSCOs Die Index Number: I-50
  • Mounting Hole Type: Thru
  • Narrow Tang: No
  • Number of Mounting Holes: 2
  • Sight Window: No
  • Slotted: No
  • Tang End Shape: Square
  • Undrilled: No

Material and Finish

  • Conductor Material: Copper
  • Connector Finish: Tin
  • Material: Copper

Bolt and Screw Sizes

  • Mounting Bolt/Stud Size: 1/2

Environment and Temperature

  • Temperature Rating: 90°C

Conductor Ranges

  • Conductor Range CU Stranded (Primary, run, main, line): 3/0 Str
  • Expanded Conductor Range: 3/0 Str - 2 Str
  • Flex Conductor Range: 2/0 G,H,I,K,M,DLO

Color

  • Color: Silver
  • Color Code: Orange

Voltage

  • Voltage Rating: 35 kV

Testing Standards

  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • NEBS Rating: Level 3
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • ROHS Indicator: IND
  • UL Control Number: 453G
  • UL / CULUS Specification: UL 467 Listed, UL 486A/B Listed
  • UL File Number: E6207

Dimensions

  • Barrel Length (IN): 1.5
  • Barrel Length (mm): 38.1
  • Dimension G (IN): 0.546
  • Dimension G (mm): 13.8684
  • Height BX (IN): 2.25
  • Height (mm): 16.4846
  • Inside Diameter (IN): 0.484
  • Inside Diameter (mm): 12.2936
  • Length (mm): 125.4506
  • Mounting Hole Diameter (IN): 0.562
  • Mounting Hole Diameter (mm): 14.2748
  • Mounting Hole Spacing (IN): 1.75
  • Mounting Hole Spacing (mm): 44.45
  • Outside Diameter (IN): 0.609
  • Outside Diameter (mm): 15.4686
  • Strip Length (mm): 39.6748
  • Tang Length (IN): 3
  • Tang Length (mm): 76.2
  • Tang Thickness (IN): 0.125
  • Tang Thickness (mm): 3.175
  • Tang Width (IN): 0.885
  • Tang Width (mm): 22.479
  • Weight BX (LB): 2.507
  • Width BX (IN): 5
  • Width (mm): 22.479

General

  • Bag Quantity: 1
  • Carton Quantity Description: STD PACK QTY 10
  • Direct Burial: Yes
  • Dual Rated: No
  • NEMA Code: S-588-3
  • UPC Code: 78366963946
  • pdfSpec Sheet https://media.distributordatasolutions.com/web_ilsco_v2/2021q4/documents/a4a88ea2833ad27d92b029878245008e9143f0ab.pdf
