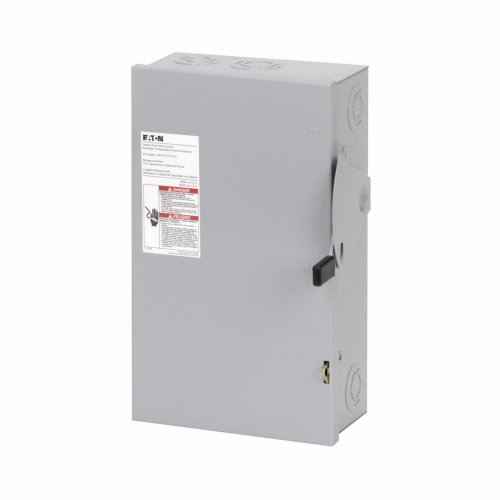

EATON DG222UGB B Series General Duty Non-Fusible Safety Switch, 240 VAC, 60 A, 10 hp, DPST Contact, 2 Poles

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CHDDG222UGB
  • MPN: DG222UGB
  • UPC:782114731130
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartridge) and non-fusible switches are available.

EATON Safety Switch, General Duty Non-Fusible, Series: B Series, 240 VAC, 60 A, 10 hp, 1 ph, 2 Pole, 2 Wires, DPST Contact Form, NEMA 1 Enclosure, Surface Mounting, 7.38 x 8.69 x 14.19 in Dimensions, Steel, Painted

Amperage Rating      :      60 A
Contact Form      :      DPST
Dimensions      :      7.38 x 8.69 x 14.19 in
Enclosure Type      :      NEMA 1
Finish      :      Painted
Horsepower      :      10 hp
Material      :      Steel
Mounting Type      :      Surface
Number of Poles      :      2
Number of Wires      :      2
Phase      :      1
Series      :      B Series
Type      :      General Duty Non-Fusible
Voltage Rating      :      240 VAC
  • Used to open or close a circuit
  • Non-fusible safety switches provide a means to manually connect or disconnect the load from the source
  • Fusible safety switches provide a means to manually open and close a circuit and over current protection by means of installed fuses
  • Also commonly referred to as a disconnect switch or disconnect
  • Design general duty 30 to 100 A
