PV0500LT50 Calbond™
Send Print
  1. pin-int

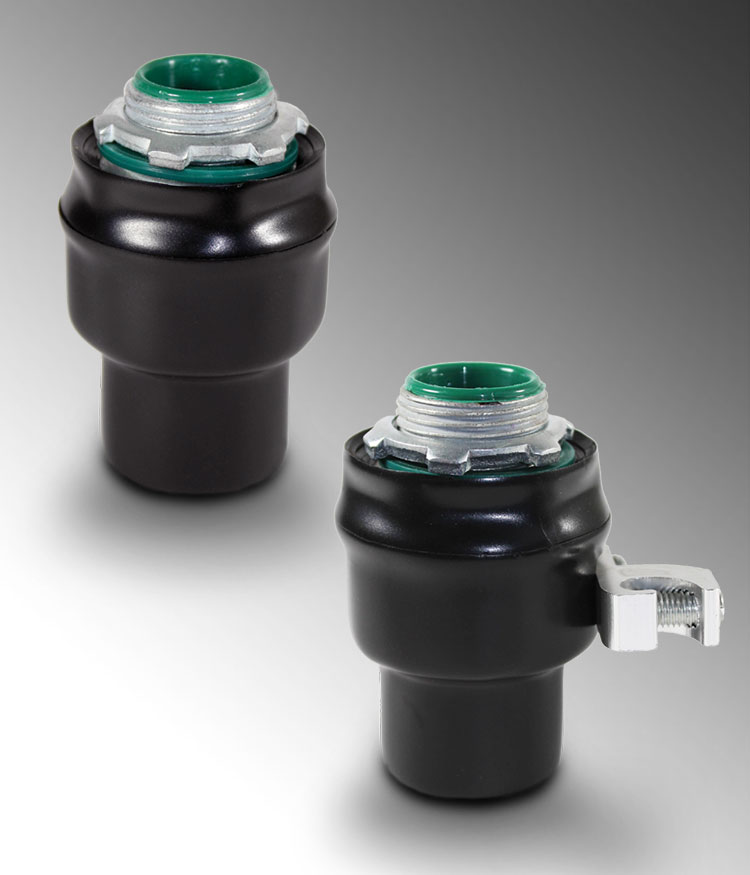

Calbond™ PV0500LT50 Straight Liquid Tight Conduit Connector, 1/2 in Trade, Steel, Galvanized/PVC Coated

  • Manufacturers: Calpipe Industries
  • Brand Name: Calbond™
  • BPN: CALPV0500LT50
  • MPN: PV0500LT50
  • UPC:847656070984
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Calbond™ PVC Coated liquidtight connectors are used with liquidtight conduit. The sleeve on the liquidtight connector is sized specifically to tighten around PVC conduit. Pulling compound is recommended for ease of installation. Fittings are provided with a flexible sleeve on the conduit side and a sealing form on both the box side and the mating part of the gland.

Calbond™ Liquid Tight Conduit Connector, Straight, 1/2 in Trade, For Use With: Rigid Conduits, Steel, Black, Galvanized/PVC Coated, 1.46 in Dia x 2.06 in L Dimensions

Color      :      Black
Dimensions      :      1.46 in Dia x 2.06 in L
Finish      :      Galvanized/PVC Coated
Material      :      Steel
Suitable For Use With      :      Rigid Conduits
Trade Size      :      1/2 in
Type      :      Straight
  • Exterior PVC coating thickness is a minimum 0.04 in
  • The length of the sleeve extension's shall be at least equivalent to the nominal conduit size for sizes 1/2 to 2 in
  • For sizes 2-1/2 to 4 in the length of the sleeve extension's shall be at least 2 in
