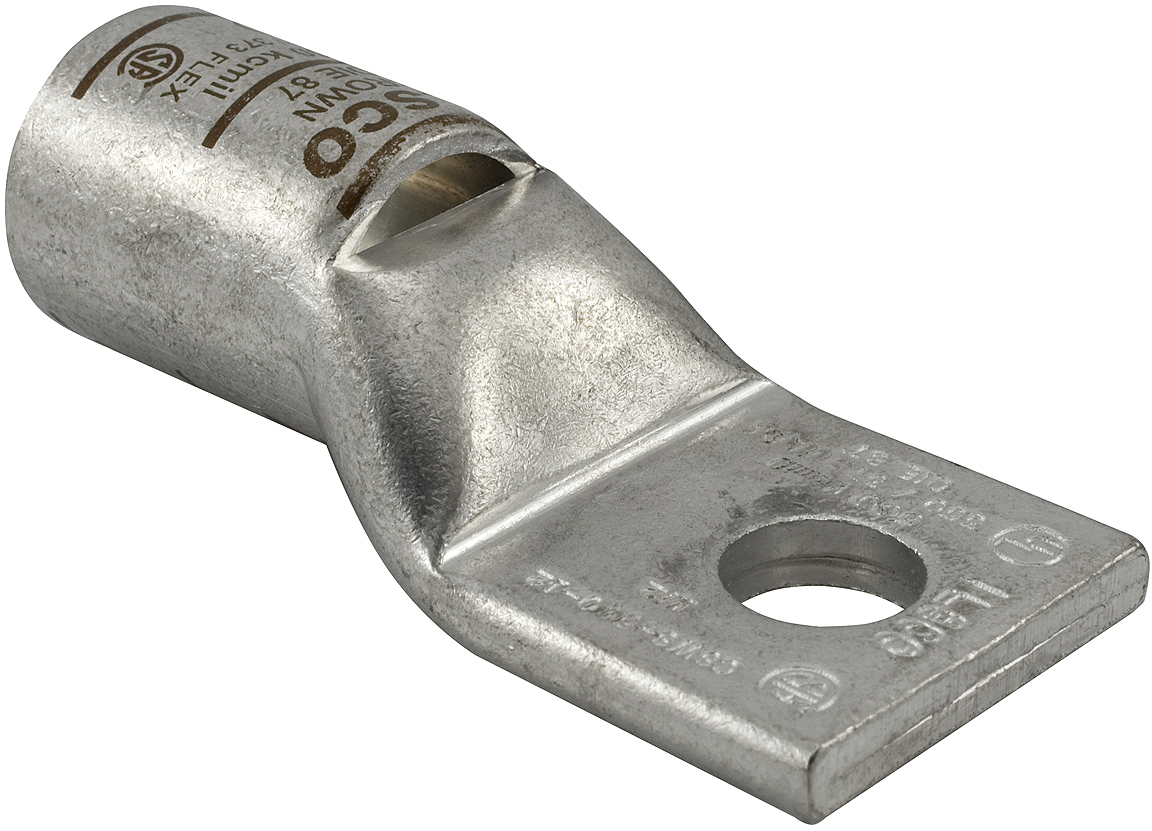

Ilsco CSWS-2-38 SureCrimp® Copper Compression Lug, Conductor Size 2, 1 Hole, 3/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA

  • Manufacturers: ILSCO
  • Brand Name: Ilsco
  • BPN: ILSCSWS238
  • MPN: CSWS-2-38
  • UPC:783669633092
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 2 Str, sight window, Square tang end, rated for 35 kV, die color code Brown, primary color Silver, die index I-33,

Application      :      Terminating Connector
Barrel Length      :      0.625 in
Barrel Type      :      Short, Straight
Bolt Size      :      3/8 IN
Brand Name      :      Ilsco
Carton Qty      :      25
Color Code      :      Brown
Color Coding      :      Brown
Color      :      Silver
Conductor Material      :      Copper
Conductor Range      :      Conductor Size: #2 AWG; Expanded: 2-6 AWG
Conductor Size      :      6-2 AWG
Conductor Type      :      Stranded
Connection Type      :      Compression
Direct Burial Y/N      :      Yes
Finish      :      Tin Plated
Height      :      0.451 Inch
Inside Diameter      :      0.312 in
Insulation      :      NA
Item Name      :      Compression Lug with Sight Hole
Length      :      1.786 Inch
Material      :      Copper
Mounting Hole Size      :      0.406 in
Mounting Type      :      13/32 in Hole
Number of Holes      :      1 Hole
Number of Mounting Holes      :      1
Outside Diameter      :      0.421 in
Overall Length      :      1.786 in
Series/Model      :      CSWS Series
Size      :      L:1.786;W:0.599;H:0.451 IN
Standards      :      UL 486A-B, 467, UL File Number E6207, CSA File Number LR29601, NEBS Rated Level 3
Strip Length      :      17.449 mm
Stud Size      :      3/8 in
Sub Brand      :      SureCrimp®
Temperature Rating      :      90 °C
Trade Slang      :      783669633092, ILSCRC2, ILSCSWS238, Ilsco, CSWS-2-38, Compression Lugs - Copper - 1 Hole, Compression Lugs, Lugs & Split Bolts, Connectors, Crimps, Termination
Type      :      CSWS:1 HOLE SHORT W/SIGHT
Voltage Rating      :      600 Volt
Voltage      :      35 Volt

Specifications

  • Height: 0.451 in | 11.4554 mm
  • Length: 1.786 in | 45.3644 mm
  • Weight: 0.0308647334525826 lbs
  • Width: 0.599 in | 15.2146 mm

Additional Technical Specifications

  • Conductor Type: Stranded

Additional Class Attributes

  • Barrel Marking: Ink
  • Barrel Type: Standard
  • Connecting Angle: 180°
  • Connection: Compression
  • Contains DE-OX®: No
  • Flared End: No
  • ILSCOs Die Catalog Number: ILD-33
  • ILSCOs Die Index Number: I-33
  • Mounting Hole Type: Thru
  • Narrow Tang: No
  • Number of Mounting Holes: 1
  • Sight Window: Yes
  • Slotted: No
  • Tang End Shape: Square
  • Undrilled: No

Material and Finish

  • Conductor Material: Copper
  • Connector Finish: Tin
  • Material: Copper

Bolt and Screw Sizes

  • Mounting Bolt/Stud Size: 3/8

Environment and Temperature

  • Temperature Rating: 90°C

Conductor Ranges

  • Conductor Range CU Stranded (Primary, run, main, line): 2 Str
  • Expanded Conductor Range: 2 Str - 6 Str

Color

  • Color: Silver
  • Color Code: Brown

Voltage

  • Voltage Rating: 35 kV

Testing Standards

  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • NEBS Rating: Level 3
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • ROHS Indicator: IND
  • UL Control Number: 453G
  • UL / CULUS Specification: UL 467 Listed, UL 486A/B Listed
  • UL File Number: E6207

Dimensions

  • Barrel Length (IN): 0.625
  • Barrel Length (mm): 15.875
  • Dimension G (IN): 0.414
  • Dimension G (mm): 10.5156
  • Height BX (IN): 2.25
  • Height (mm): 11.4554
  • Inside Diameter (IN): 0.312
  • Inside Diameter (mm): 7.9248
  • Length (mm): 45.3644
  • Mounting Bolt/Stud Size (mm): 965.2
  • Mounting Hole Diameter (IN): 0.406
  • Mounting Hole Diameter (mm): 10.3124
  • Mounting Hole Spacing (mm): 0
  • Outside Diameter (IN): 0.421
  • Outside Diameter (mm): 10.6934
  • Strip Length (mm): 17.4498
  • Tang Length (IN): 0.875
  • Tang Length (mm): 22.225
  • Tang Thickness (IN): 0.109
  • Tang Thickness (mm): 2.7686
  • Tang Width (IN): 0.599
  • Tang Width (mm): 15.2146
  • Weight BX (LB): 1.6875
  • Width BX (IN): 5
  • Width (mm): 15.2146

General

  • Bag Quantity: 1
  • Carton Quantity Description: STD PACK QTY 25
  • Direct Burial: Yes
  • Dual Rated: No
  • NEMA Code: S-588-3
  • UPC Code: 78366963309
  • pdfSpec Sheet https://media.distributordatasolutions.com/web_ilsco_v2/2021q4/documents/c71ba7d9a5571c7d0223c198a46577259a5f8407.pdf
