DH362URK Cutler-Hammer Manufacturing Co.
Cutler-Hammer Manufacturing Co. DH362URK CHDDH362URK
Send Print
  1. pin-int

CHDDH362URK

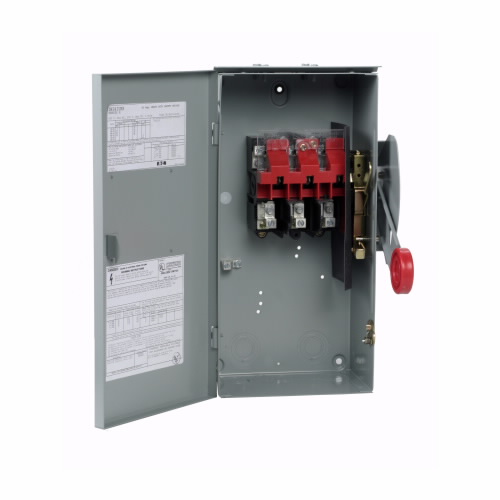

Eaton DH362URK Heavy Duty Safety Switch

  • Manufacturers: Eaton (Group)
  • Brand Name: Cutler-Hammer Manufacturing Co.
  • BPN: CHDDH362URK
  • MPN: DH362URK
  • UPC:782113206028
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 60 A, Neam 3R, Painted galvanized steel, Non-Fusible, Three-wire, 10 at 240 Vac TD 1 Ph, 20 at 480 Vac TD 1 Ph, 25 at 600 Vac TD 1 Ph, 20 at 240 Vac TD 3 Ph

Amperage Rating      :      60 Amp
Amperage      :      60 Amp
Application      :      Commercial / Institutional Buildings / Structures - Power Distribution and Controls
Brand Name      :      Cutler-Hammer Manufacturing Co.
Dimensions      :      16.5000 IN X 9.5000 IN X 8.5000 IN
Enclosure Material      :      Steel
Enclosure Standard      :      3R
Height      :      8-1/2 Inch
Length      :      16-1/2 Inch
Material      :      Steel
NEMA Size      :      3R
NEMA      :      3R
Number of Poles      :      3 Pole
Number of Wires      :      3 Wire
Standards      :      UL Listed

Specifications

  • Height: 8.31 IN
  • Length: 16.5 IN
  • Width: 9.12 IN
  • Weight: 16 LB
  • Type: Single-throw
  • Amperage Rating: 60A
  • Enclosure: NEMA 3R
  • Enclosure Material: Painted galvanized steel
  • Fuse Configuration: Non-fusible
  • Number Of Poles: Three-pole
  • Number Of Wires: Three-wire
  • Product Category: Heavy Duty, Non-Fusible
  • Voltage Rating: 600V
  • Max Hp Rating: 10 at 240 Vac TD 1 Ph, 20 at 480 Vac TD 1 Ph, 25 at 600 Vac TD 1 Ph, 20 at 240 Vac TD 3 Ph, 50 at 480 Vac TD 3 Ph, 60 at 600 Vac TD 3 Ph, 10 at 250 Vdc
  • Notes: Suitable for service entrance use with a neutral or ground lug kit installed
  • pdfSpec Sheet https://media.distributordatasolutions.com/eaton/2019q2/97288d7f07971cb60c42944ca0555656cd5bc640.pdf
