NM95X Arlington Industries, Inc.
Arlington Industries, Inc. NM95X ARLNM95X
Send Print
  1. pin-int

ARLNM95X

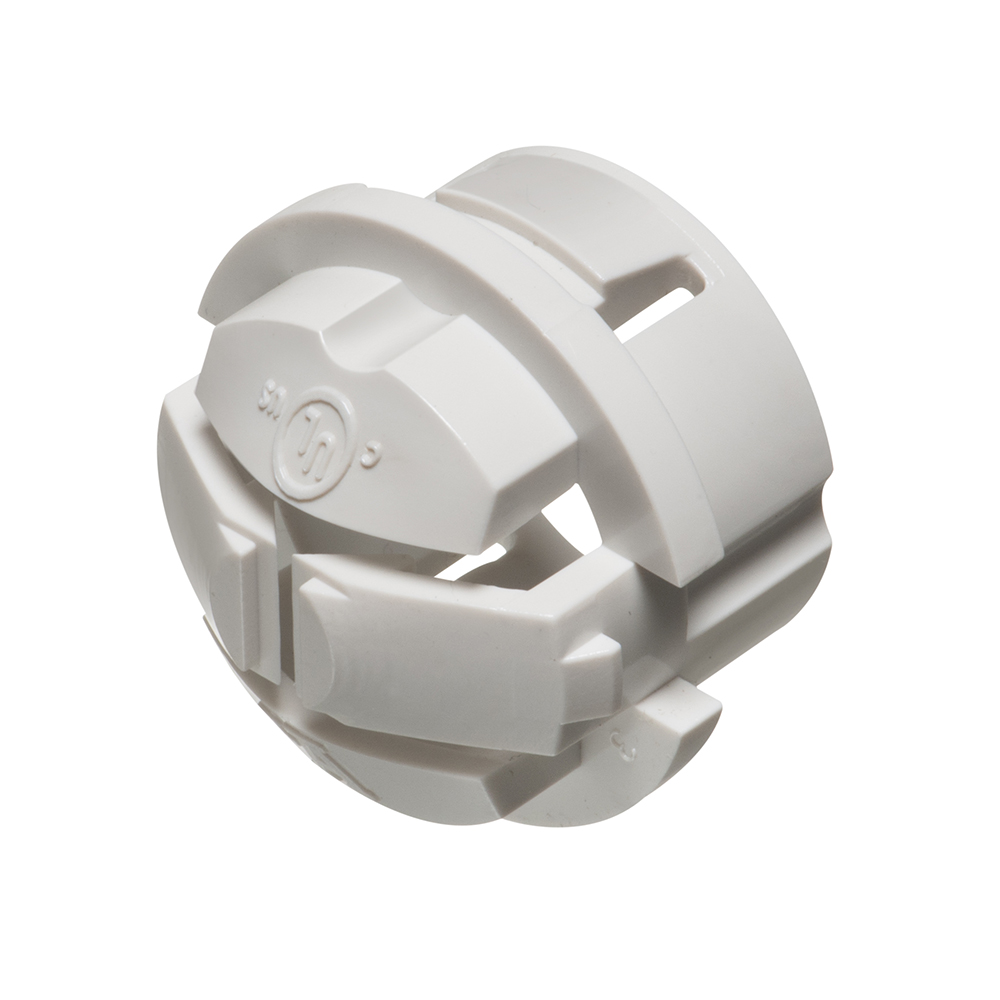

Arlington NM95X 3/4" KO Push-In NM Cable Connector, Plastic, White

  • Manufacturers: Arlington Industries
  • Brand Name: Arlington Industries, Inc.
  • BPN: ARLNM95X
  • MPN: NM95X
  • UPC:018997211934
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

3/4" White Button TM Non-Metallic Push-In Connector from inside or outside of the box. It works with a wide variety of NM cables including NMB-PCS and Canadas NMD90.

Application      :      NM Cable
Brand Name      :      Arlington Industries, Inc.
Color      :      White
Country of Origin      :      USA
Height      :      1.29 Inch
Knockout Size      :      3/4 in
Material      :      Plastic
Mounting      :      Push In
Package Quantity      :      50 pc
Size      :      3/4 in
Standards      :      CULUS
Sub Brand      :      White Button
Trade Size      :      3/4 Inch
Trade Slang      :      018997211934, ARLNM95X, Arlington, NM95X, NM-B Connectors - Non-Metallic, NM-B Cable Fittings, MC, NM-B, Liquidtight, Flex Fittings, Fittings
Type      :      Connector

Specifications

Basic Information

  • UPC: 018997211934
  • Unit Packaging: 50pcs
  • Standard Packaging: 500pcs
  • Country of Origin: United States
  • Listing: cULus

Physical Information

  • Weight: 0.011 lbs/each
  • Height: 1.290"
  • Width: 1.290"
  • Color: White
  • Material(s): Plastic

Technical Information

  • Cable Ranges: One 14/2 to 6/2, One 14/3 to 6/3, One 12/4, One 12/2/2, Two 14/2 to 10/2, Two 14/3 to 10/3, One 14/2 and One 12/2, One 14/2 and One 10/2, One 12/2 and One 10/2, One 14/3 and One 12/3, One 14/2 NMB-PCS, One 12/2 NMB-PCS, One or Two 14/2 to 10/2 NMD90
  • Knockout Size(s): 3/4"
  • Trade Size: 3/4"
  • pdfSpec Sheet https://media.distributordatasolutions.com/arlington/2020q2/documents/280b8b33971f3c18be19732be785297231b1cfcd.pdf
