BL1430 B-Line
B-Line BL1430 BEEBL1430
Send Print
  1. pin-int

BEEBL1430

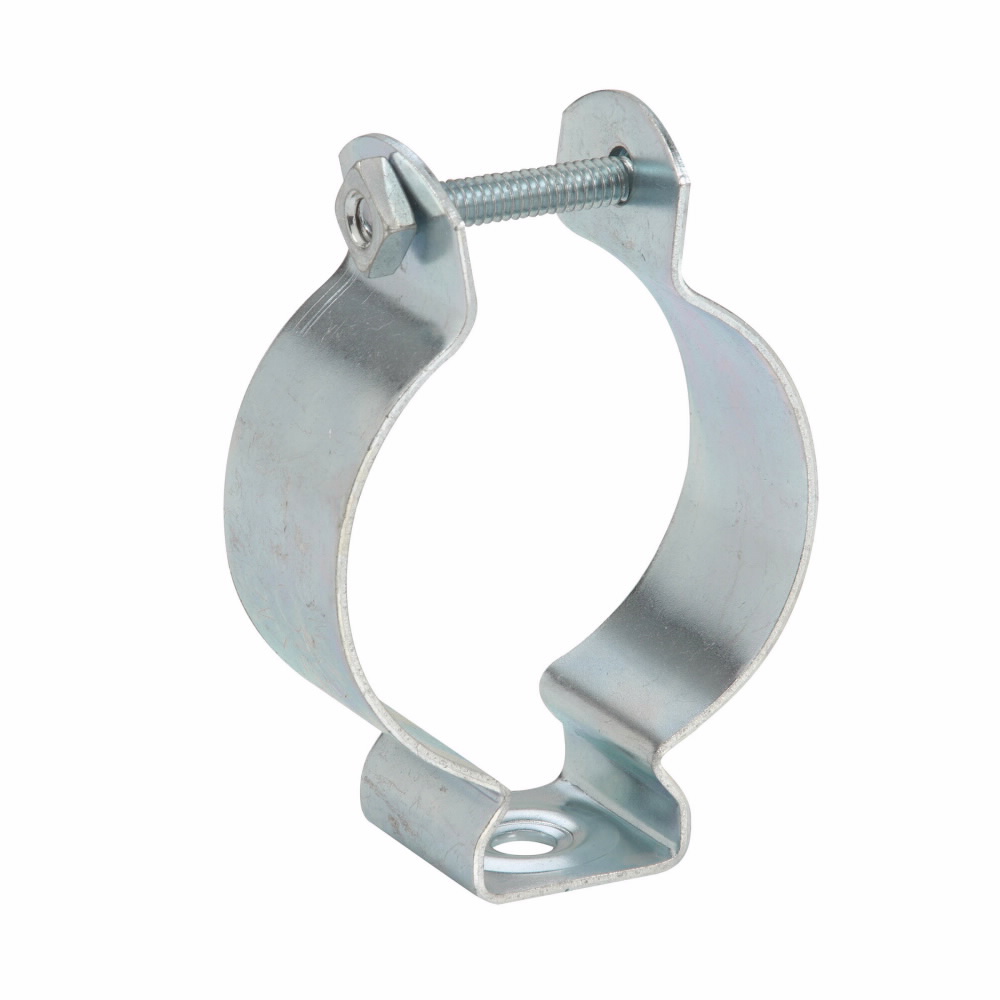

B-Line BL1430 CONDUIT HANGER, 3 TRA

  • Manufacturers: Eaton (Group)
  • Brand Name: B-Line
  • BPN: BEEBL1430
  • MPN: BL1430
  • UPC:781011198046
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton B-Line series conduit support fasteners, Conduit and cable, 0.12lbs, Trade size: 3, Conduit size: 1.5" EMT, 1.25" Rigid, Conduit hangers, .5" Min, 4" Max mount size, 400 lbs load capacity, Conduit hangers, Zinc plated

Application      :      FASTENERS,CONDUIT FASTENERS,
Brand Name      :      B-Line
Finish      :      N/A
Height      :      1 Inch
Length      :      1 Inch
Material      :      Steel
Size      :      1.25 in
Standards      :      UL (CANADA AND US)
Sub Brand      :      Fasteners
Trade Slang      :      781011198046, minerallac strap, mineralac, beam hanger, cowboy, minnie, pear hanger, BLIBL1430, Eaton B-Line, BL1430, Conduit Clamps, Conduit, Cable, Clips, Clamps, Hangers, Fittings, Cooper B-Line DATA, B-Line
Type      :      Conduit Hangers

Specifications

General

  • UPC: 781011198046
  • Product Length/Depth: 1 in
  • Product Height: 1 in
  • Product Width: 1 in
  • Product Weight: .12 lb
  • Certifications: UL/CUL listed

Model

  • Product Category: Conduit and cable
  • Type: Conduit hangers
  • Special features: Conduit hangers

Specifications

  • Size: Trade size: 3, Conduit size: 1.5 inch EMT, 1.25 inch Rigid
  • Load capacity: 400 lbs
  • Mounting dimensions - min: 0.50
  • Mounting dimensions - max: 4
  • pdfSpec Sheet https://media.distributordatasolutions.com/csv_eaton/2021q3/documents/689b8cebf34c2ee2616ab4d29de0d80e1ad23916.pdf
