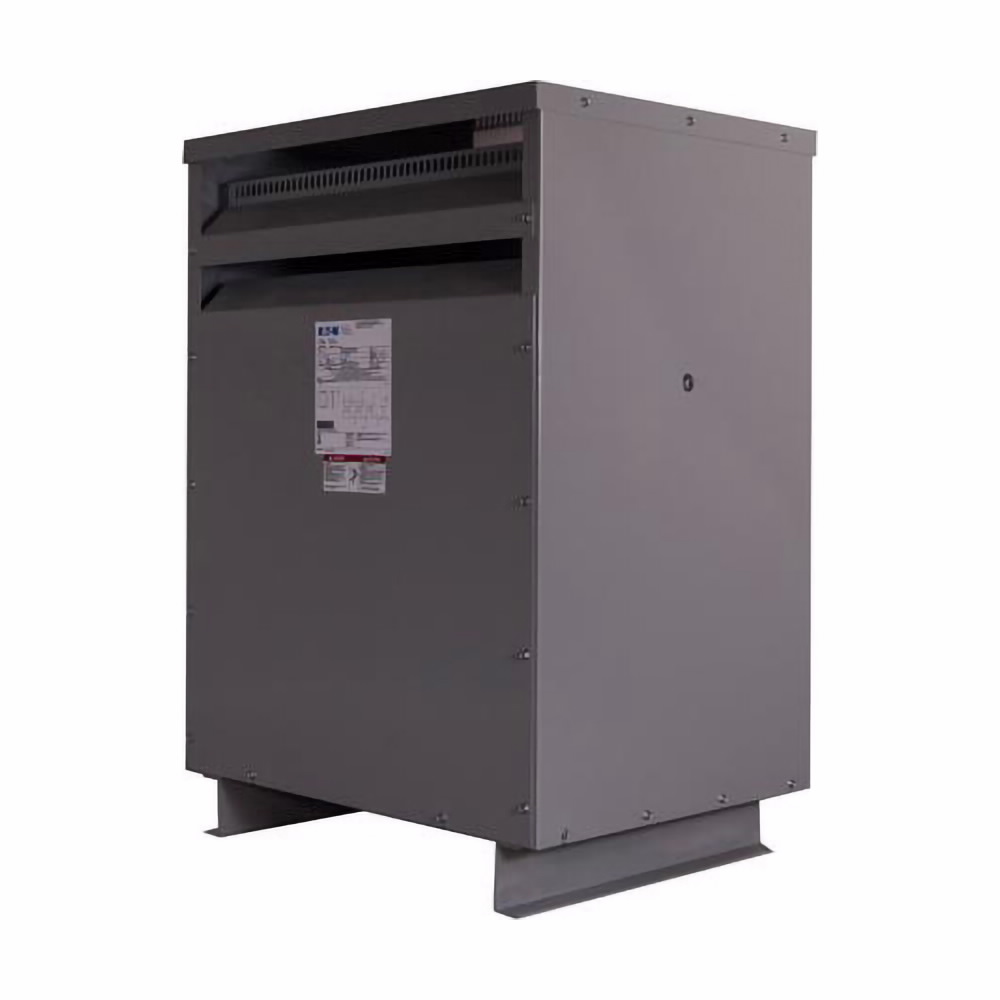

EATON V48M28T4916 Type DT-3 Dry Energy Efficient Ventilated Distribution Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 150 kVA Power Rating, 60 Hz, 3 ph Phase

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CHTV48M28T4916
  • MPN: V48M28T4916
  • UPC:786680147272
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton 1-phase and 3-phase general purpose ventilated and encapsulated dry-type transformers are of the 2-winding type, self-cooled and are available in a wide variety of primary and secondary voltage combinations. General purpose transformers are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards and are designed for continuous operation at rated kVA.

EATON General Purpose Distribution Transformer, Type DT-3 Dry Energy Efficient Ventilated, 480 VAC Primary, 208Y/120 VAC Secondary, 150 kVA Power, 60 Hz Frequency, 3 ph ph, 6 Taps, Lug Connection, 943 Frame Circuit, Floor/Upright/Wall Mounting, 220 deg C Insulation, NEMA 2 Enclosure, 150 deg C, 98.3 % Efficiency, Steel Housing Material, 31-1/2 in L x 34-1/2 in W x 51 in H Dimensions

Circuit Type      :      943 Frame
Connection Type      :      Lug
Dimensions      :      31-1/2 in L x 34-1/2 in W x 51 in H
Efficiency      :      98.3 %
Enclosure Type      :      NEMA 2
Frequency Rating      :      60 Hz
Housing Material      :      Steel
Insulation      :      220 deg C
Mounting Type      :      Floor/Upright/Wall
Number of Taps      :      6
Phase      :      3 ph
Power Rating      :      150 kVA
Primary Voltage      :      480 VAC
Secondary Voltage      :      208Y/120 VAC
Temperature Rating      :      150 deg C
Type      :      Type DT-3 Dry Energy Efficient Ventilated
  • Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements and transformers with other efficiency requirements
  • Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard to provide compliance with NEC 450.10(A)
  • Short term overload capability as required by ANSI
  • Meet Federal energy efficiency requirements for low voltage dry-type distribution transformers
  • Aluminum windings
  • 2 at +2.5% FCAN, 4 at -2.5% FCBN taps
  • Fungus-resistant varnished core and coil
