ECNR3
Bussmann
https://www.billows.com/3361963/product/EDIECNR3
https://www.billows.com/3361963/product/EDIECNR3
EDIECNR3

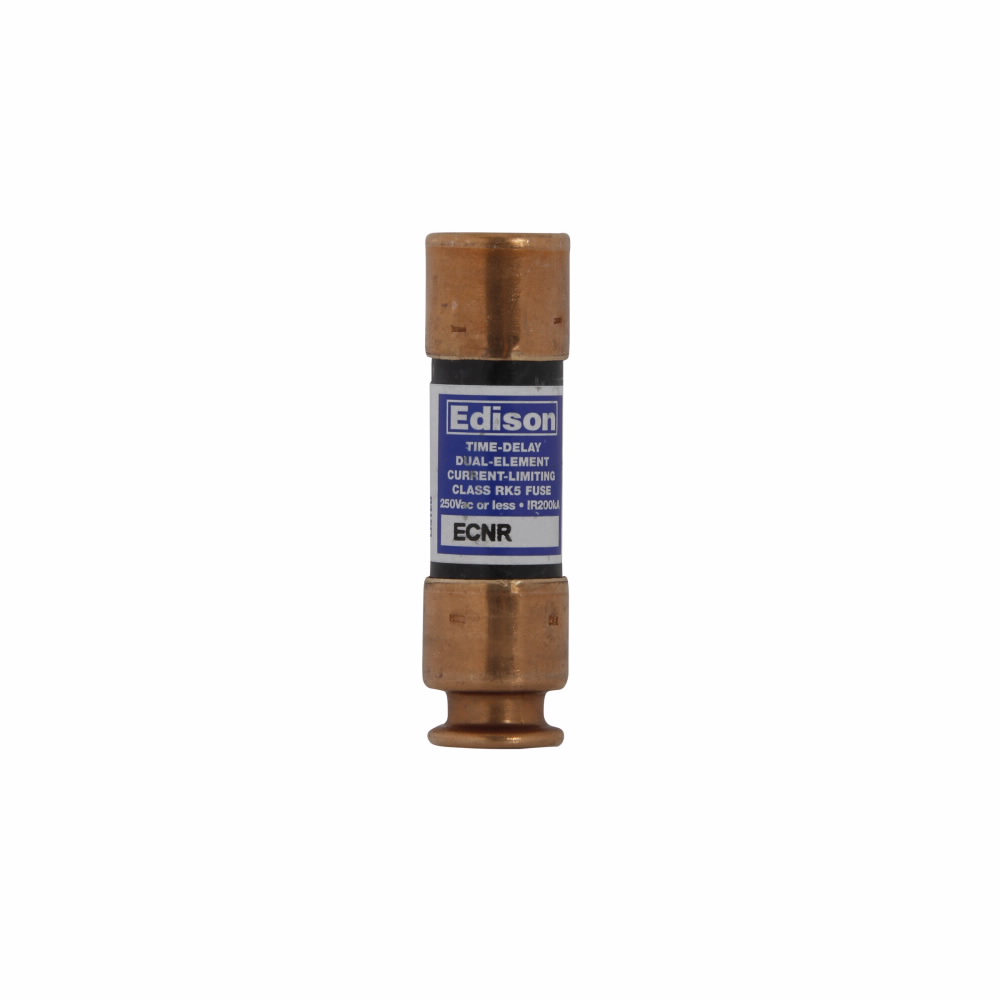

BUSS ECNR3 UL CLASS RK-5 TIME DELAY
- Manufacturers: Eaton (Group)
- Brand Name: Bussmann
- BPN: EDIECNR3
- MPN: ECNR3
- UPC:782634506997
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Eaton Edison ECNR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 0.3 A, Dual, Class RK5, Non-indicating, 8 sec at 500%, 200 kAIC, Standard, 250 V, 125 Vdc
| Amperage Rating | : | 3 Amp |
| Amperage | : | 3 Amp |
| Application | : | AC Power Distribution System Mains, Feeders and Branch Circuits, Protection of Motor and Motor Branch Circuits, Transformers and Other Inductive Loa |
| Brand Name | : | Bussmann |
| Class | : | Class RK5 |
| Connection Type | : | Ferrule |
| Connection | : | Ferrule end x ferrule end |
| Diameter | : | 0.56 Inch |
| Dimensions | : | 2.0000 IN X 0.5600 IN X 0.5600 IN |
| Element | : | Dual |
| Enclosure Material | : | Stainless Steel |
| End Type | : | Ferrule |
| Height | : | 2 Inch |
| Interrupt Rating | : | 200 kAIC |
| Length | : | 0.56 Inch |
| Response Time | : | 8 S At 500% |
| Size | : | 0.56 In Diameter X 2.00 In Length |
| Standards | : | CE Marked |
| Standard | : | CSA C22.2,UL |
| Sub Brand | : | Edison |
| Trade Slang | : | 782634506997, BUSECNR3, Eaton/Bussmann Series, ECNR3, Fuses - Class RK5, General Purpose Fuses, Fuses & Accessories, Power Distribution, Bussmann, Cooper Bussman |
| Type | : | Current Limiting,Time-Delay |
| Voltage Rating | : | 250/125 VAC//VDC |
| Voltage | : | 125 Volt |
| Weight | : | .5 lb |
| Width | : | .56 in |
Specifications
- Height: 2 IN
- Length: .56 IN
- Width: .56 IN
- Weight: .5 LB
- Type: Time delay, Current-limiting
- Special Features: Superior overload and cycling capabilities
- Voltage Rating: 250 Vac, 125 Vdc
- Amperage Rating: 3A
- Interrupt Rating: 200 kAIC
- Class: Class RK5
- Connection: Ferrule end X ferrule end
- Packaging Type: Standard
- Diameter: .56 IN
- Fuse Indicator: Non Indicating
- Response Time: 8s at 500%
- Number Of Elements: Dual
Spec Sheet
