BG-16-U-5-8 B-Line
Send Print
  1. pin-int

BEEBG16U58

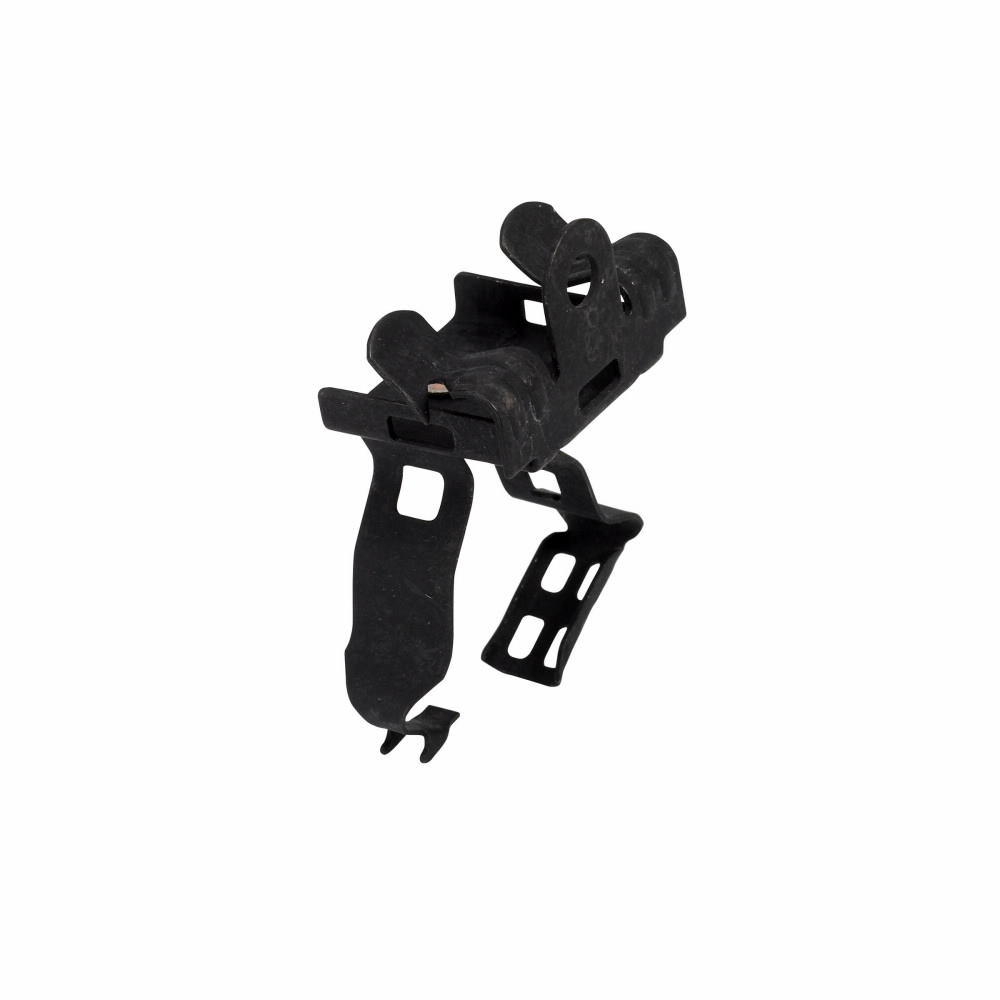

B-Line BG-16-U-5-8 1 Inch Conduit to Beam Fastener

  • Manufacturers: Eaton (Group)
  • Brand Name: B-Line
  • BPN: BEEBG16U58
  • MPN: BG-16-U-5-8
  • UPC:781011186302
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton B-Line series conduit support fasteners, Beams, Flange, 1" Height, 1" Length, 1" Width, 0.1lbs, Conduit size: 1", Guide-Rite conduit to beam fasteners, .31" Min mount size, .5" Max mount size

Application      :      FASTENERS,CONDUIT FASTENERS,
Brand Name      :      B-Line
Conduit Size      :      1 in
Finish      :      Zinc
Height      :      1 Inch
Length      :      1 Inch
Material      :      Steel
Mounting Type      :      Flange
Size      :      1 in
Standards      :      UL (CANADA AND US)
Sub Brand      :      Fasteners
Trade Size      :      1 Inch
Trade Slang      :      781011186302, BLIBG16U58, Eaton B-Line, BG-16-U-5-8, Flange-Mount Cable/Conduit Clips, Conduit, Cable, Clips, Clamps, Hangers, Fittings, Cooper B-Line DATA, B-Line
Type      :      Guide-Rite Conduit To Beam Fasteners

Specifications

General

  • UPC: 781011186302
  • Product Length/Depth: 1 in
  • Product Height: 1 in
  • Product Width: 1 in
  • Product Weight: .1 lb
  • Certifications: UL/CUL listed

Application

  • Application: Conduit to beam fasteners

Model

  • Product Category: Beams
  • Type: Guide-Rite conduit to beam fasteners
  • Mounting method: Flange

Specifications

  • Size: Conduit size: 1 inch
  • Mounting dimensions - min: 0.31
  • Mounting dimensions - max: 0.50
  • pdfSpec Sheet https://media.distributordatasolutions.com/csv_eaton/2021q3/documents/0fee066272984ebf2e52c76aa2b59aa105a75913.pdf
