5507FRJ Wiremold
Wiremold 5507FRJ WIR5507FRJ
Send Print
  1. pin-int

WIR5507FRJ

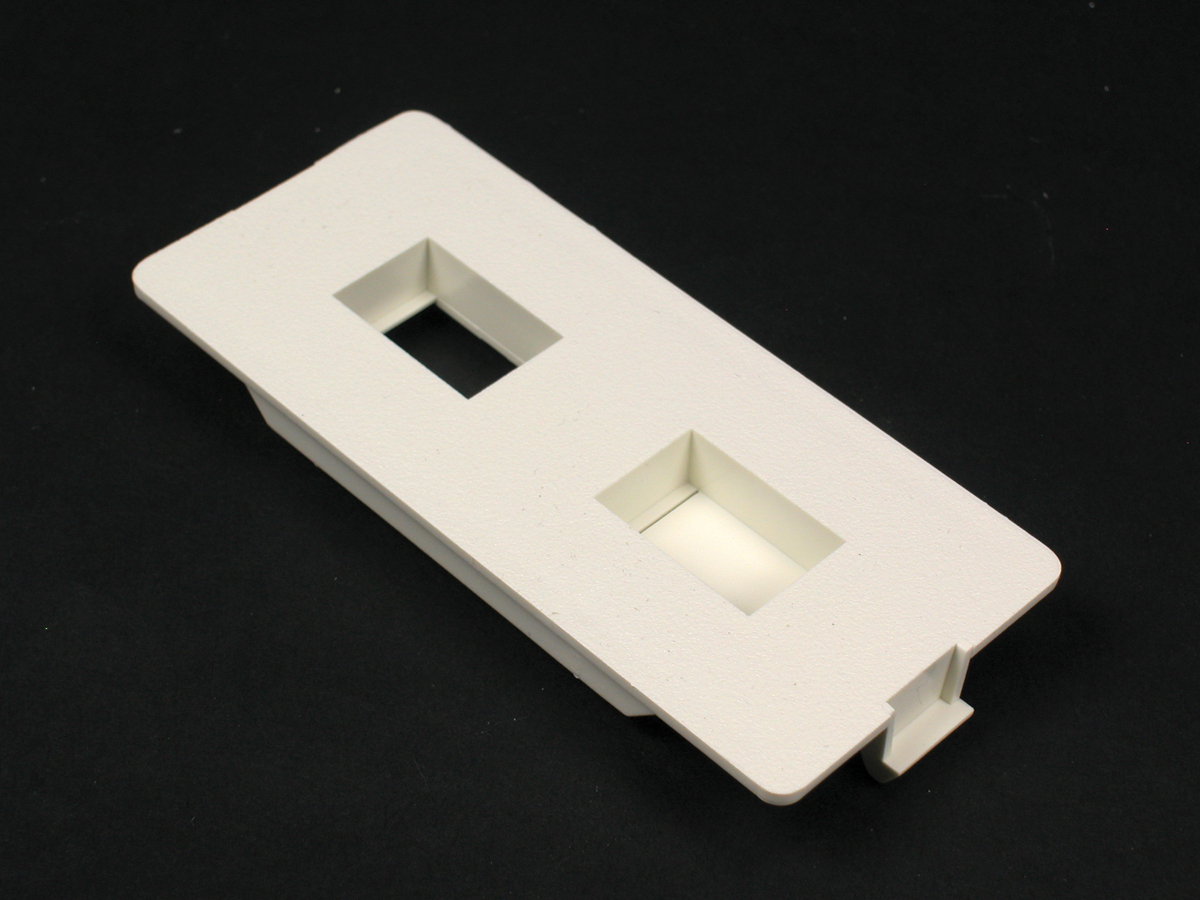

Wiremold 5507FRJ Non-Metallic Flush Ivory Faceplate

  • Manufacturers: Legrand
  • Brand Name: Wiremold
  • BPN: WIR5507FRJ
  • MPN: 5507FRJ
  • UPC:786776104011
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

5500 Series Raceway from provides wire and cable management for data, voice, A/V, and power applications. It is ideal for large cable and wire requirements in schools, office buildings, and other institutions.

Application      :      For Commercial, Office, Residential
Brand Name      :      Wiremold
Buy American Compliant      :      Y
Capacity      :      Multiple Channel
Certifications      :      CULUS,NAFTA,ROHS
Color      :      Ivory
Country of Origin      :      USA
For Use With      :      One or Two Keystone Device Modules
Item Name      :      Flush Dual RJ Connector Faceplate Fitting
Jacket Color      :      Ivory, White, Gray, Black, Fog White, Light Gray
Material Type      :      Non-Metallic
Material      :      Plastic
Mounting      :      Bracket
Product Series      :      5500
Series      :      5500
Standards      :      cULus Listed Raceway: File E90378 Guide RJTX, Complies with Flammability Requirements of UL-5A, Fittings: File E90377 Guide RJYT, Meets Article 388 of NEC, UL Listed for up to 600V, Meets Section 12-1600 of CEC, RoHS Compliant
Sub Brand      :      Wiremold
Trade Slang      :      786776104011, 5500, Faceplate, Dual RJ11/RJ45, WMD5507FRJ, Wiremold, 5507FRJ, Raceway - 1-Gang Covers & Faceplates, Raceway Boxes - 1-Gang, Raceway Boxes, Conduit, Ducts, Raceways
Type      :      Non-Metallic, Multiple Channel
Voltage Rating      :      600 Volt
Voltage      :      600 Volt

Features

Certifications

  • RoHS Compliant
  • NAFTA Compliant
  • cULus Listed
  • For mounting one or two keystone device modules, recessed to provide a flush installation. Has one opening and one KO."

Specifications

  • Country of Origin: United States
  • Special Features: Adjustable mounting brackets. Color options. Compatible with A/V devices. Increased productivity. Concealed fiber storage spool.
  • Standard: cULus Listed Raceway: File E90378 Guide RJTX. Complies with flammability requirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-1600 of CEC.
  • Type: Raceway
  • Voltage: 600.0 V
  • Application Sector: Residential/Commercial

Specifications

  • Product Line: Wiremold
  • linkSpec Sheet https://legrand.webdamdb.com/directdownload.php?ti=55654827&tok=MhLZ/4T/oCEBUgzUfQUvYQRR
  • linkInstallation / Instruction Manual https://legrand.webdamdb.com/directdownload.php?ti=55654552&tok=2vZOV8jUC9YyRI0PI3373gRR
