MEN10 Edison
Edison MEN10 EDIMEN10
Send Print
  1. pin-int

EDIMEN10

EFSE MEN10 UL TIME DELAY MIDGET FUS

  • Manufacturers: Eaton (Group)
  • Brand Name: Edison
  • BPN: EDIMEN10
  • MPN: MEN10
  • UPC:782634521006
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

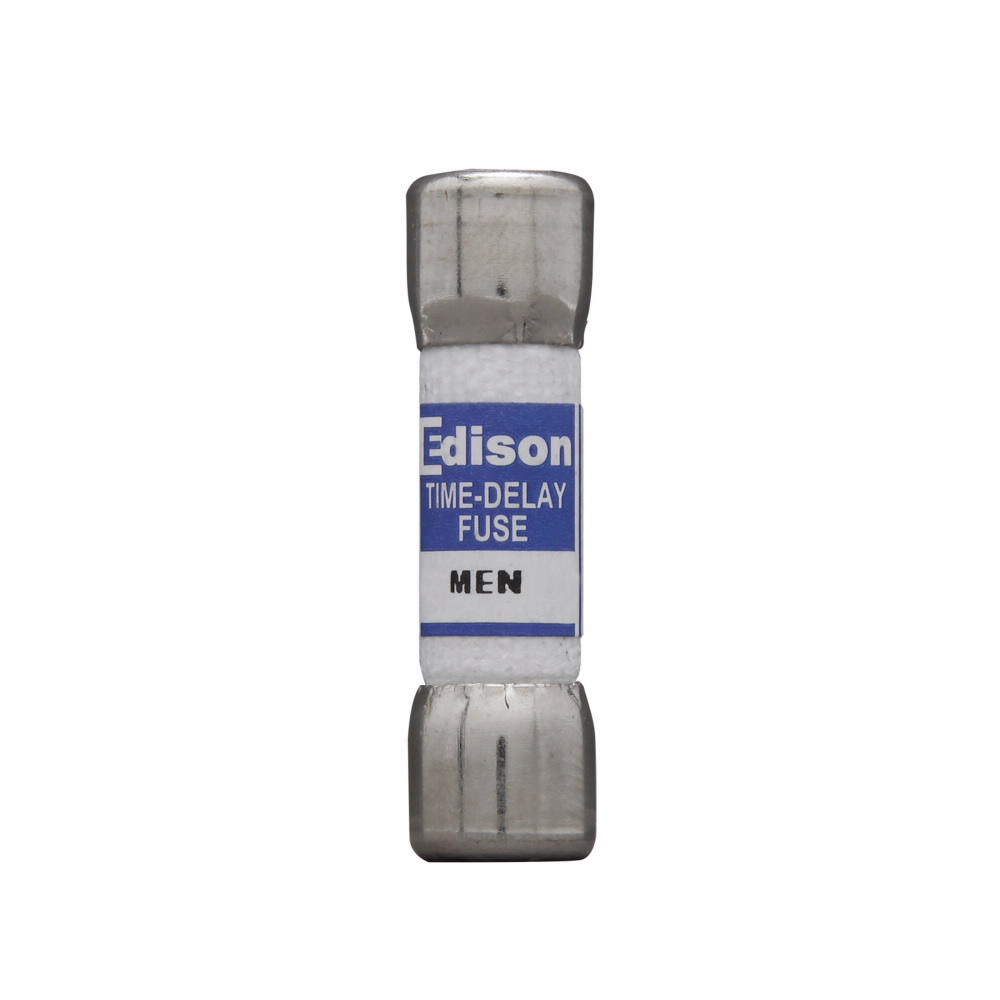

Eaton Edison MEN fuse, Time-delay Midget fuse, Supplemental protection of small motors, transformers, solenoids, and other high inrush power electronic circuits, 10 A, Dual, Non-indicating, 10 kAIC at 125 Vac, Fiber tube, Standard, 250 V

Amperage Rating      :      10 Amp
Amperage      :      10 Amp
Brand Name      :      Edison
Height      :      0.46 Inch
Interrupt Rating      :      10 kAIC
Length      :      1 Inch
Material      :      Fiber
Type      :      Time Delay
Voltage Rating      :      250 Volt
Voltage      :      250 Volt
Weight      :      .2 lb

Specifications

General

  • UPC: 782634521006
  • Product Length/Depth: 1 in
  • Product Height: .406 in
  • Product Width: .406 in
  • Product Weight: .2 lb
  • Warranty: Not Applicable
  • Compliances: RoHS Compliant

Electrical Rating

  • Amperage Rating: 10 A
  • Interrupt rating: 10 kAIC at 125 Vac
  • Voltage rating: 250 V

Physical Details

  • Material: Fiber tube
  • Number of elements: Dual
  • Packaging type: Standard

General Information

  • Fuse indicator: Non-indicating
  • pdfSpec Sheet https://www.eaton.com/us/en-us/skuPage.MEN10.pdf
