078328
Kraloy Fittings
https://www.billows.com/3362173/product/PVCEXP050
https://www.billows.com/3362173/product/PVCEXP050
PVCEXP050

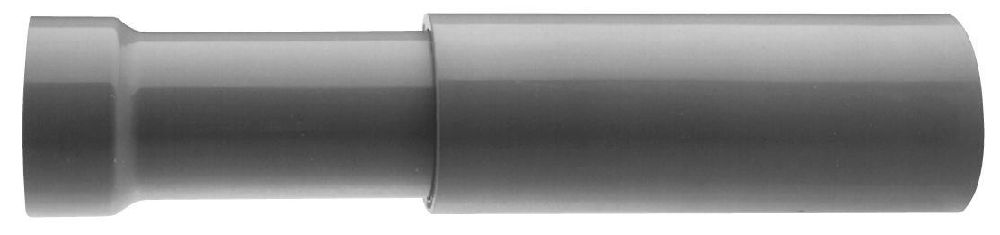

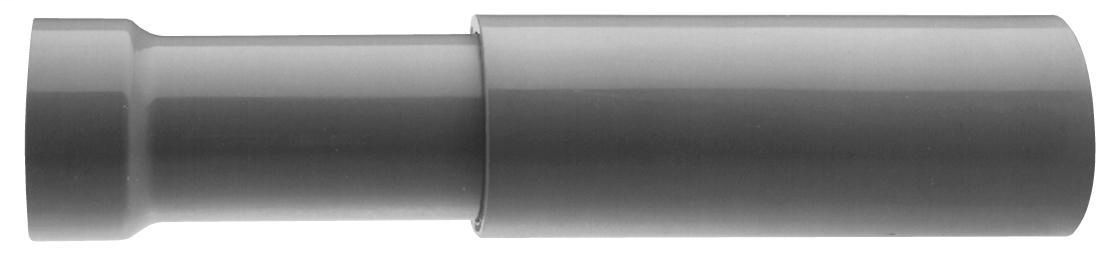

MULTIFIT 078328 1/2" PVC EXPANSION
- Manufacturers: IPEX
- Brand Name: Kraloy Fittings
- BPN: PVCEXP050
- MPN: 078328
- UPC:622454783287
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Expansion Fittings are designed to compensate for length changes due to temperature variations in exposed conduit runs. Expansion joints are required when the temperature change is greater than 25°F (14°C).
| Brand Name | : | Kraloy Fittings |
| Buy American Compliant | : | Y |
| Country of Origin | : | Canada |
| Diameter | : | 1/2 Inch |
| ETIM 7 Class | : | EC002264 |
| Housing Material | : | PVC |
| Material | : | PVC |
| Quantity | : | 1,1 |
| Size | : | 1/2" IN |
| Standards | : | CSA C22.2 No. 85;UL 651 |
| Trade Size | : | 1/2 Inch |
| Type | : | EXPANSION JOINT |
Features
- Chemical resistant to a wide range of acids, alkalis or salt solutions
- Pre-lubricated for smooth adjusting
- Can be installed vertically or horizontally
- O-rings prevent leakage
- PVC is nonconductive eliminating dangerous second point of contact
- Made from impact resistant PVC
- Chemical resistant to a wide range of acids, alkalis or salt solutions
- Comes with O-rings to prevent leakage
- Lightweight yet offers high impact and tensile strength
- Can be installed vertically or horizontally
- UL listed
- PVC is nonconductive eliminating dangerous second point of contact
- Corrosion resistant for lower maintenance cost and longer life
- Lightweight yet offers high impact and tensile strength
- Corrosion resistant for lower maintenance cost and longer life
- UL listed
Applications
- street & highway lighting
- airports
- communications
- parking garages
- fish plants
- agricultural
- subways
- pulp & paper industries
- mines
- water/sewage treatment plants
- Utilities
- bridges & tunnels
- marinas
- cable
- car washes
- food processing plants
- residential
- steel mills
Specifications
- Base UOM: EA
- Base Quantity Imperial: 1.000
- Unit Weight KG: 0.169
- Diameter1 Imperial: 1/2"
- Material: PVC
- Tariff Code CA: 3917.40.00.92
- Tariff Code US: 3917.40.00.90
- Country Of Origin: CA
- Certified Standards: CSA C22.2 No. 85;UL 651
- Base Quantity Metric: 1.000
Spec Sheet
