FS420SCL Arlington Industries, Inc.
Send Print
  1. pin-int

ARLFS420SCL

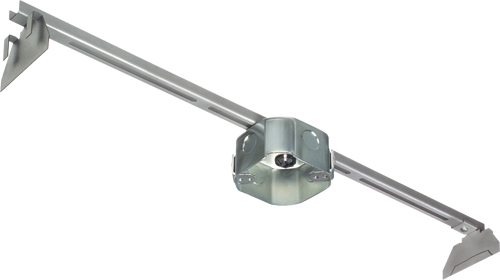

Arlington FS420SCL Suspended Ceiling Fan Box w/ Mounting Bar, Steel, 20 cu.in

  • Manufacturers: Arlington Industries
  • Brand Name: Arlington Industries, Inc.
  • BPN: ARLFS420SCL
  • MPN: FS420SCL
  • UPC:018997125262
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Steel fixtured box kit for suspended ceilings. With adjustable mounting bar. Preset for 24 in. Grid. Supports up to 50lb fixtures. 2 inch box depth, 20 cu. in.

Application      :      For Suspended Ceilings
Brand Name      :      Arlington Industries, Inc.
Color      :      White
Cubic Capacity      :      20 inĀ³
Depth      :      2 Inch
Height      :      3.041 Inch
Includes      :      Screw Hook
Item Name      :      Fixture Box Kit
Knockouts      :      No
Length      :      3.041 Inch
Material      :      Steel
Mounting Type      :      Adjustable Bar, Screw
Mounting      :      Screw
Package Quantity      :      1 pc
Size      :      20.0 cu in
Standards      :      UL Listed, CSA Certified
Trade Slang      :      018997125262, B Box, ARLFS420SCL, Arlington, FS420SCL, Ceiling Boxes with Hangers, Ceiling Boxes & Accessories, Boxes - Metallic, Boxes, Enclosures
Type      :      Fan and Fixture Box Kit

Specifications

Basic Information

  • UPC: 018997125262
  • Unit Packaging: 1pc
  • Standard Packaging: 10pcs
  • Listing: UL, CSA

Physical Information

  • Weight: 2.950 lbs/each
  • Height: 3.041"
  • Width: 3.500"
  • Color: Silver
  • Material(s): Plated Steel

Technical Information

  • Cubic Inches: 20.0
  • Load Rating: UL & CSA Rated: 50 lb fixture
  • Style: 2" Box Depth
  • Trade Size: 20.0 cu. in.
  • Usage: Suspended Ceilings
  • pdfSpec Sheet https://media.distributordatasolutions.com/arlington/2020q2/documents/ba227f23bef12f79d0f7212fe9b7eaf85f292311.pdf
