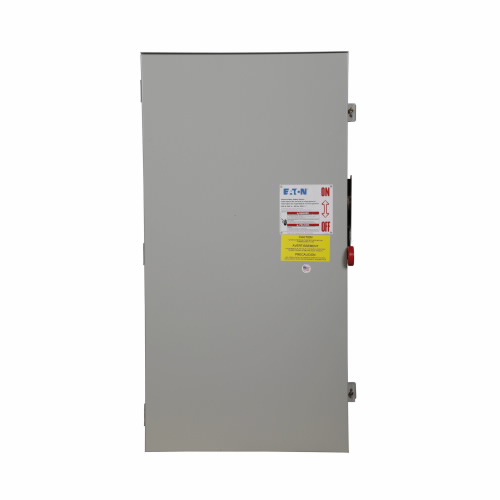

EATON DG225NRK DG Series Cartridge Fusible General Duty Safety Switch, 240 VAC, 400 A, 50 to 125 hp, DPST Contact, 2 Poles

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CHDDG225NRK
  • MPN: DG225NRK
  • UPC:782113589503
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartridge) and non-fusible switches are available.

EATON Safety Switch, Cartridge Fusible General Duty, Series: DG Series, 240 VAC, 400 A, 50 to 125 hp, 3 ph, 2 Pole, 3 Wires, DPST Contact Form, NEMA 3R Enclosure, Surface Mounting, 11.16 in L x 22.66 in W x 44.31 in H Dimensions, Steel, Galvanized/Painted

Amperage Rating      :      400 A
Contact Form      :      DPST
Dimensions      :      11.16 in L x 22.66 in W x 44.31 in H
Enclosure Type      :      NEMA 3R
Finish      :      Galvanized/Painted
Horsepower      :      50 to 125 hp
Material      :      Steel
Mounting Type      :      Surface
Number of Poles      :      2
Number of Wires      :      3
Phase      :      3
Series      :      DG Series
Type      :      Cartridge Fusible General Duty
Voltage Rating      :      240 VAC
  • Ample wire bending space provides for easier installation
  • Visible double-break quick make, Quick-break rotary blade mechanism
  • Side opening door on all enclosures
  • Mechanically interlocked cover to prevent easy access when the switch is in the ON position
  • With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
  • Clearly visible and accessible neutral where applicable
  • Visible ON/OFF indications
  • Tangential knockouts on 30 to 60 A designs
  • Ample wiring space
  • Double padlocking capability on 30 to 100 A
  • Triple padlocking capability on 200 to 600 A
  • Additional door locking capability
  • Tri-lingual nameplates
  • Design for series K general duty 200 A and higher
