078278 Kraloy Fittings
Kraloy Fittings 078278 PVCBA100
Send Print
  1. pin-int

PVCBA100

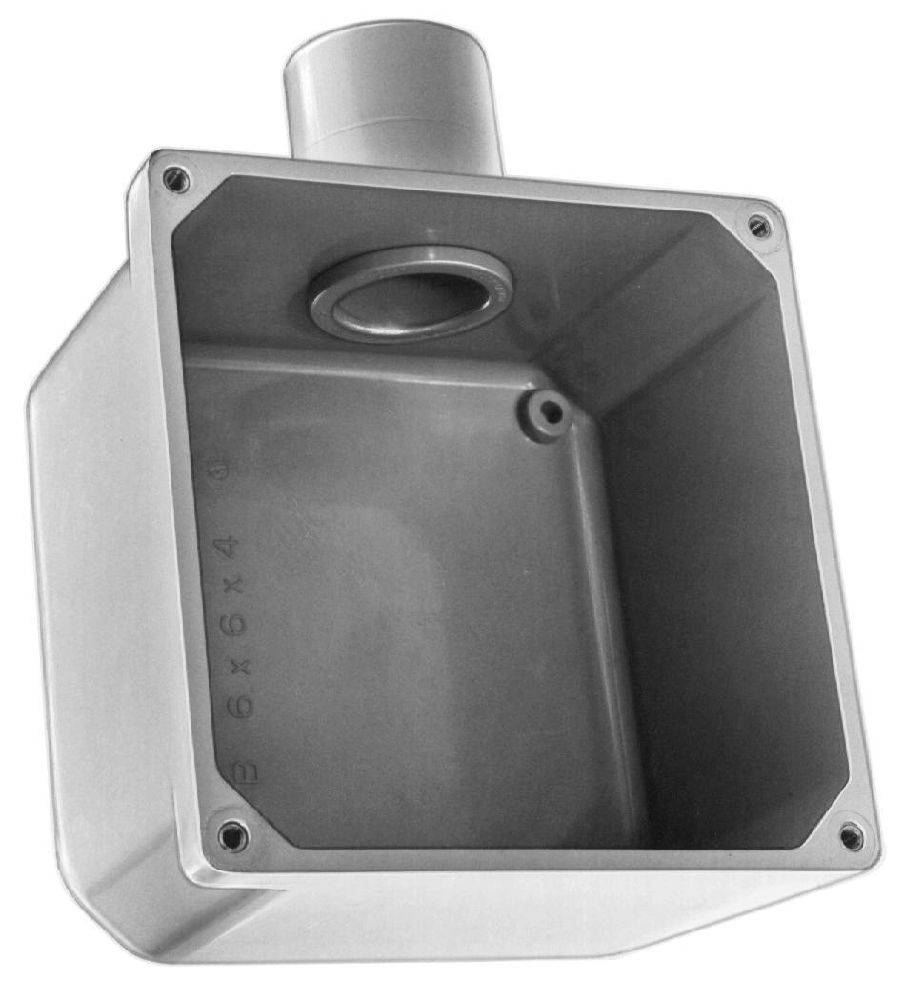

MULTIFIT 078278 1" PVC JUNCTION BOX

  • Manufacturers: IPEX
  • Brand Name: Kraloy Fittings
  • BPN: PVCBA100
  • MPN: 078278
  • UPC:622454782785
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Junction Box Adapters, installed using a standard PVC coupling, offer a trouble-free and reliable PVC connection. In addition to providing a strong connection, the JBA also maximizes the interior box wiring space unlike the use of male adapters (TA).

Brand Name      :      Kraloy Fittings
Buy American Compliant      :      Y
Country of Origin      :      Canada
Diameter      :      1 Inch
ETIM 7 Class      :      EC002328
Housing Material      :      PVC
Material      :      PVC
Quantity      :      1,1
Size      :      1" IN
Standards      :      CSA C22.2 No. 85;UL 651
Trade Size      :      1 Inch
Type      :      JUNCTION BOX ADPT

Features

  • Made from durable, corrosion resistant PVC
  • Solvent welded connection for a watertight fit
  • Little space needed to maximize the interior wiring space

Certified Standards

  • CSA C22.2 No. 85
  • UL 651

Specifications

  • Weight: 0.017 kg
  • Diameter: 1"
  • Material: PVC
  • Country of Origin: Canada
  • NAFTA: Yes
  • Base Quantity Metric: 1.000
  • pdfSpec Sheet https://media.distributordatasolutions.com/ipex/2023q2/documents/0690e5752504dc68fbe76704439c7bf5b5aa226d.pdf
