V5738 Legrand
Legrand V5738 WIRV5738
Send Print
  1. pin-int

WIRV5738

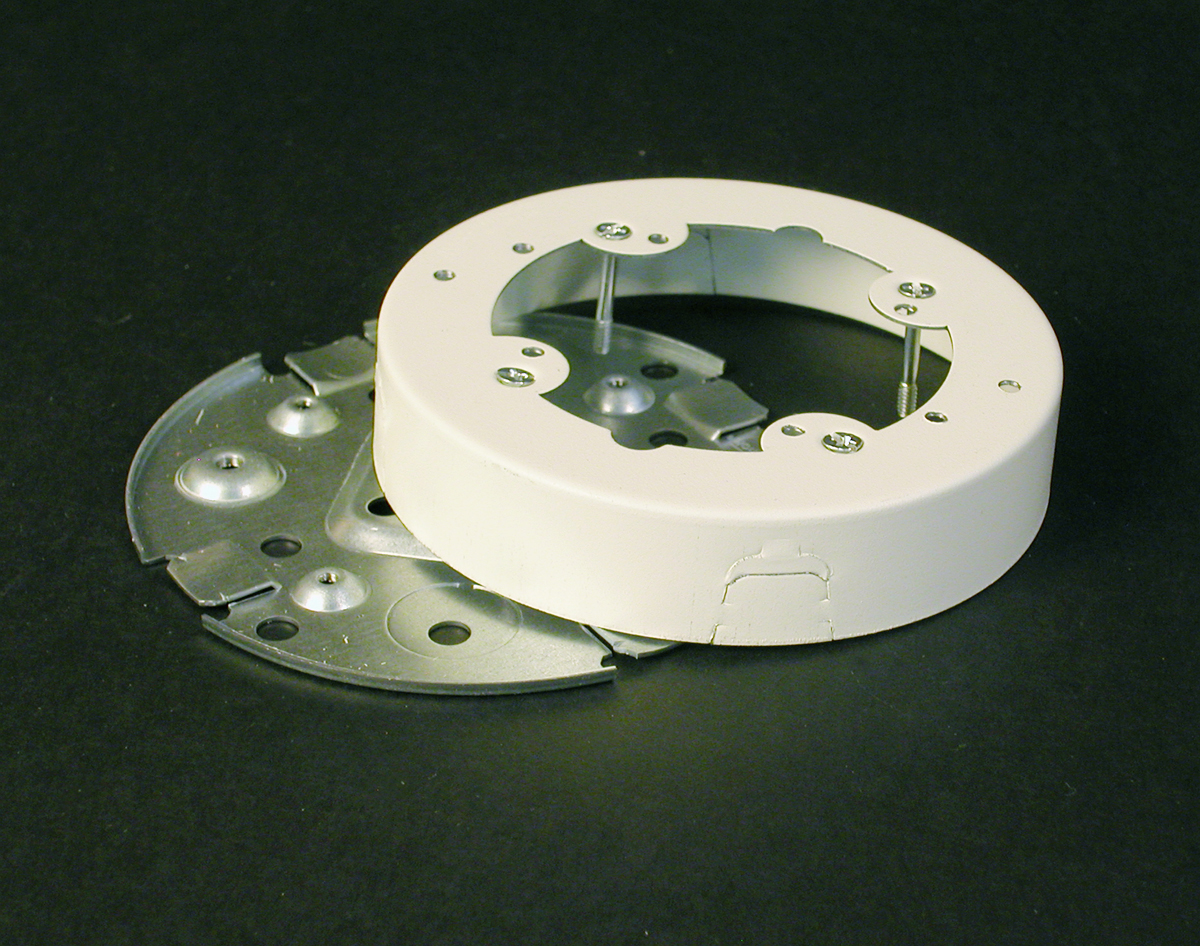

Wiremold V5738 Fixture Box / Solid Base, 4-3/4" Diameter - Ivory

  • Manufacturers: Legrand
  • Brand Name: Legrand
  • BPN: WIRV5738
  • MPN: V5738
  • UPC:786776070422
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Wiremold 500 Series and 700 Series raceways are ideal for surface mounting small amounts of electrical wiring or communication cables. These rugged raceways offer a low profile appearance which blend with any decor. Available in our exclusive ScuffCoat finish.

Application      :      Commercial
Brand Name      :      Legrand
Buy American Compliant      :      Y
Certifications      :      NAFTA,ROHS,UL
Color      :      Ivory
Component Type      :      Boxes
Country of Origin      :      USA
Depth      :      1 Inch
Height      :      4-3/4 Inch
Jacket Color      :      Ivory, White
Length      :      4-3/4 Inch
Material      :      Steel
Outside Diameter      :      1 in
Product Series      :      500700
Standards      :      cULus Listed Raceway: File E4376 Guide RJBT. Fittings: File E4751 Guide RJPR. Meets Article 386 of NEC. Meets Section 12-1600 of CEC.
Sub Brand      :      Wiremold
Trade Slang      :      786776070422, 700, 500, V5738, Fixture Box, WMDV5738, Wiremold, Raceway - Solid Base Round Boxes, Raceway Boxes - Round, Raceway Boxes, Conduit, Ducts, Raceways
Type      :      Raceway
Voltage Rating      :      600 Volt
Voltage      :      300 Volt
Volume      :      17.71 cu in

Features

  • Used to hang fixtures. Cover accepts devices with mounting screw centers of 2 3/4'', 3 1/2'', and 4 1/16'' (70mm, 89mm, and 103mm). Base has four holes for fixture studs, four 1/2'' trade size KOs, and raised section for no-bolt fixture-stud. Use as a junction or pull box with 5736 Blank Cover. Outside diameter 4 3/4'' (121mm). NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the ''V'' color prefix to ''VC'' or the ''WH'' color suffix to ''WHC'' to denote the Canadian versions."

Certifications

  • NAFTA Compliant
  • UL Listed
  • RoHS Compliant

Specifications

  • Depth: 1.0 in
  • Height: 4.75 in
  • Special Features: Low-profile, unobtrusive appearance., Surface mounting, UL5 and ADA compliant, UL and cUL Listed component raceways
  • Weight: 0.46 lb
  • Width: 4.75 in
  • Country of Origin: United States
  • Type: Raceway
  • Voltage: 300.0 V
  • Application Sector: Commercial
  • Standard: cULus Listed Surface Metal Raceway: File E41751: Guide RJPR

Specifications

  • Color: Ivory
  • Product Line: Wiremold
  • Product Volume: 17.71
  • linkSpec Sheet https://legrand.webdamdb.com/directdownload.php?ti=55650236&tok=oljzNIHHcKRk8t4xA72KtwRR
  • linkInstallation / Instruction Manual https://legrand.webdamdb.com/directdownload.php?ti=55646093&tok=BICOzXGh8eACx3npyUHIWQRR
