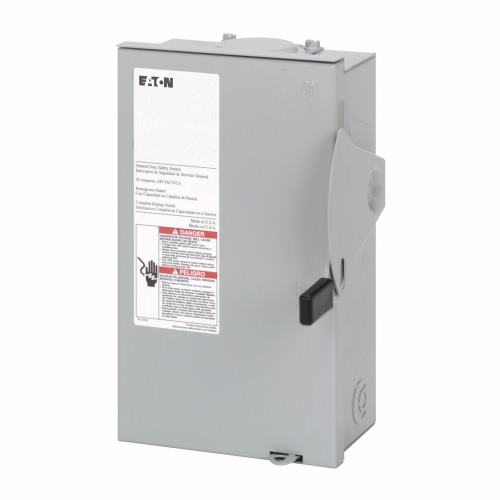

Eaton Electrical DG221NRB 120/240 VAC 30 Amp 3 to 7.5 Hp 2-Pole 3-Wire Fusible Single Throw Safety Switch
- Manufacturers: Eaton (Group)
- Brand Name: EATON
- BPN: CHDDG221NRB
- MPN: DG221NRB
- UPC:782113120317
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Eaton General duty cartridge fuse safety switch, 30 A, NEMA 3R, Red painted galvanized steel, Class H fuses, Fusible with neutral, Two-pole, Three-wire, Category: general duty safety switch, 240 V
| Amperage Rating | : | 30 Amp |
| Amperage | : | 30 Amp |
| Application | : | Commercial / Institutional Buildings / Structures - Power Distribution and Controls |
| Brand Name | : | Eaton |
| Dimensions | : | 6.8800 IN X 6.3800 IN X 10.8100 IN |
| Enclosure Material | : | Steel |
| Enclosure Standard | : | 3R |
| Height | : | 10.81 Inch |
| Length | : | 6.88 Inch |
| Material | : | Steel |
| NEMA Size | : | 3R |
| NEMA | : | 3R |
| Number of Poles | : | 2 Pole |
| Number of Wires | : | 3 Wire |
| Standards | : | UL Listed |
Specifications
- Product Category: General duty safety switch
- Enclosure material: Painted galvanized steel
- Fuse class provision: Class H fuses
- Type: General duty, cartridge fused
- Fuse configuration: Fusible with neutral
- Number of wires: 3
- Enclosure: NEMA 3R
- Voltage rating: 240V
- Amperage Rating: 30A
- Number Of Poles: Two-pole
General
- UPC: 782113120317
- Product Length/Depth: 6.88 in
- Product Height: 10.81 in
- Product Width: 6.38 in
- Product Weight: 6 lb
- Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Certifications: UL Listed
- Catalog Notes: Maximum hp ratings apply only when dual element fuses are used. 3-Phase hp rating shown is a grounded B phase rating, UL listed.
