3201-TB Thomas & Betts (T&B)
Thomas & Betts (T&B) 3201-TB TB3201TB
Send Print
  1. pin-int

TB3201TB

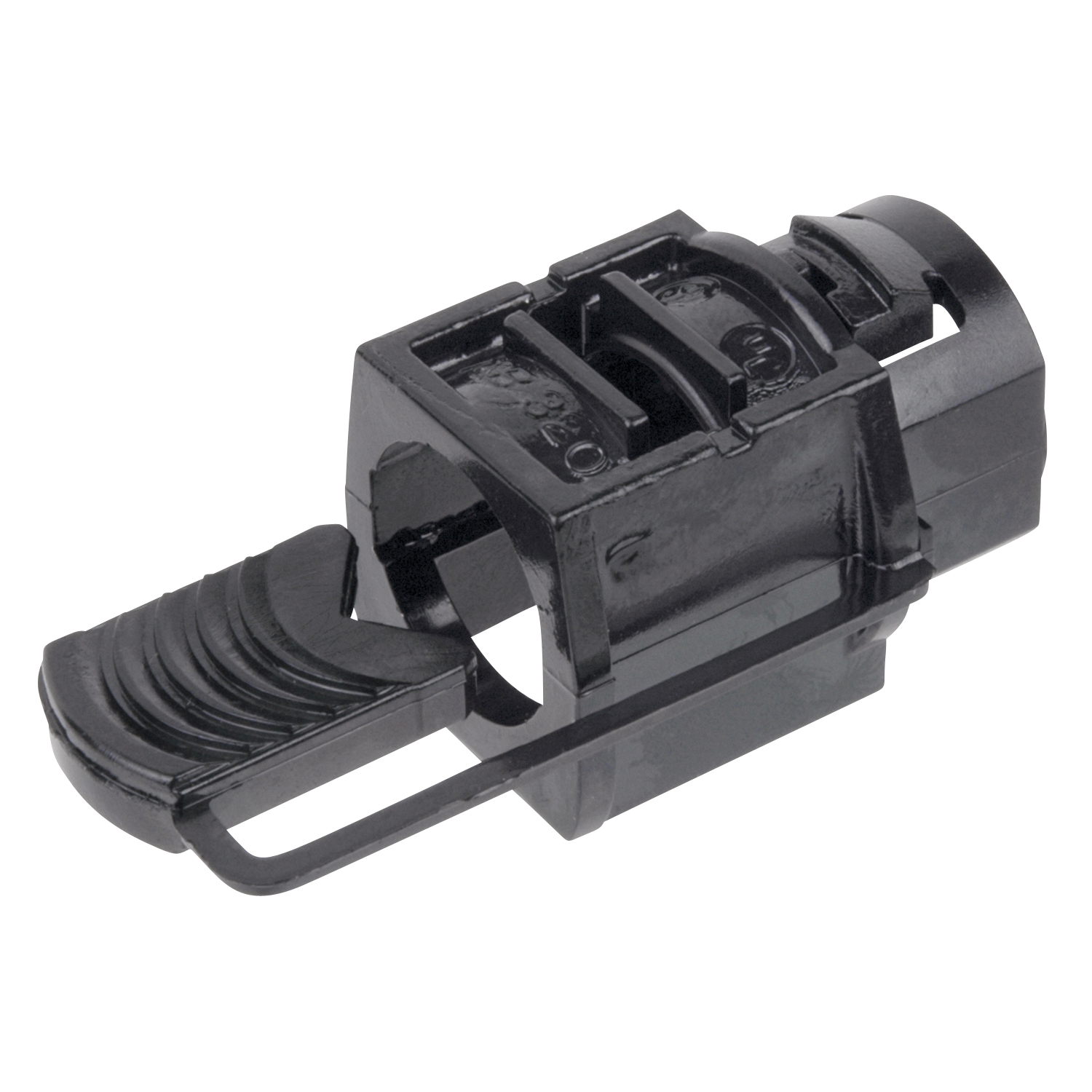

Thomas & Betts 3201-TB 1/2" Non-Metallic Connector, for use with Non-Metallic Cable and Flexible Cord

  • Manufacturers: ABB
  • Brand Name: Thomas & Betts (T&B)
  • BPN: TB3201TB
  • MPN: 3201-TB
  • UPC:786210032016
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Fitting, Non-Metallic Sheathed Cable, Knockout Size 1/2 Inch, Length 1-11/32 Inch, Height 1 Inch, Hole Size 2-1/32 Inch Diameter, Thermoplastic, For use with 10-3, 12-3, 14-3, 10-2, 12-2, 4-2 Non-Metallic Cables, Multiple (2) 12-2 and 14-2 Non-Metallic Cables, Single and Multiple Flexible Cords in Wire Range .300-.600 Inch

Application      :      For use with non-metallic sheathed cable and flexible cord
Brand Name      :      Thomas & Betts (T&B)
Connection Type      :      Snap
ETIM 7 Class      :      EC001178
For Use With      :      Non-Metallic Sheathed Cable and Flexible Cord
Item Name      :      Connector
Material Type      :      Non-Metallic
Material      :      Non-Metal
Size      :      1/2 in
Standards      :      UL E17583 Listed
Trade Size      :      1/2 Inch
Trade Slang      :      786210032016, THB3201, THB3201TB, Thomas & Betts, 3201-TB, NM-B Connectors - Non-Metallic, NM-B Cable Fittings, MC, NM-B, Liquidtight, Flex Fittings, Fittings
Type      :      Straight

Application

  • For use with non-metallic sheathed cable and flexible cord

General

  • Connection Type: Snap
  • Material: Non-Metallic
  • Trade Size (inches): 1/2

Dimension Information

  • D (inches): .880
  • A (inches): 1 11/32
  • E (inches): .795
  • H (inches): 21/32
  • C (inches): 7/16
  • B (inches): 1
  • F (inches): .080

Packaging

  • Package Length: 13.25
  • Inner Package: 50
  • Package Width: 10.75
  • Package Height: 11.25
  • T&B Sold in UOM: Each
  • T&B Weight Per UOM: 12.5 lbs. per 100
  • Order Multiple: 50
  • Outer Package: 500

Application Support

Certifications

  • UL
  • RoHS Compliance: Yes

Install
