54172NT ABB
ABB 54172NT TB54172NT
Send Print
  1. pin-int

TB54172NT

ABB 54172NT CU 250 STD BAR NARROW T

  • Manufacturers: ABB
  • Brand Name: ABB
  • BPN: TB54172NT
  • MPN: 54172NT
  • UPC:786209867872
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

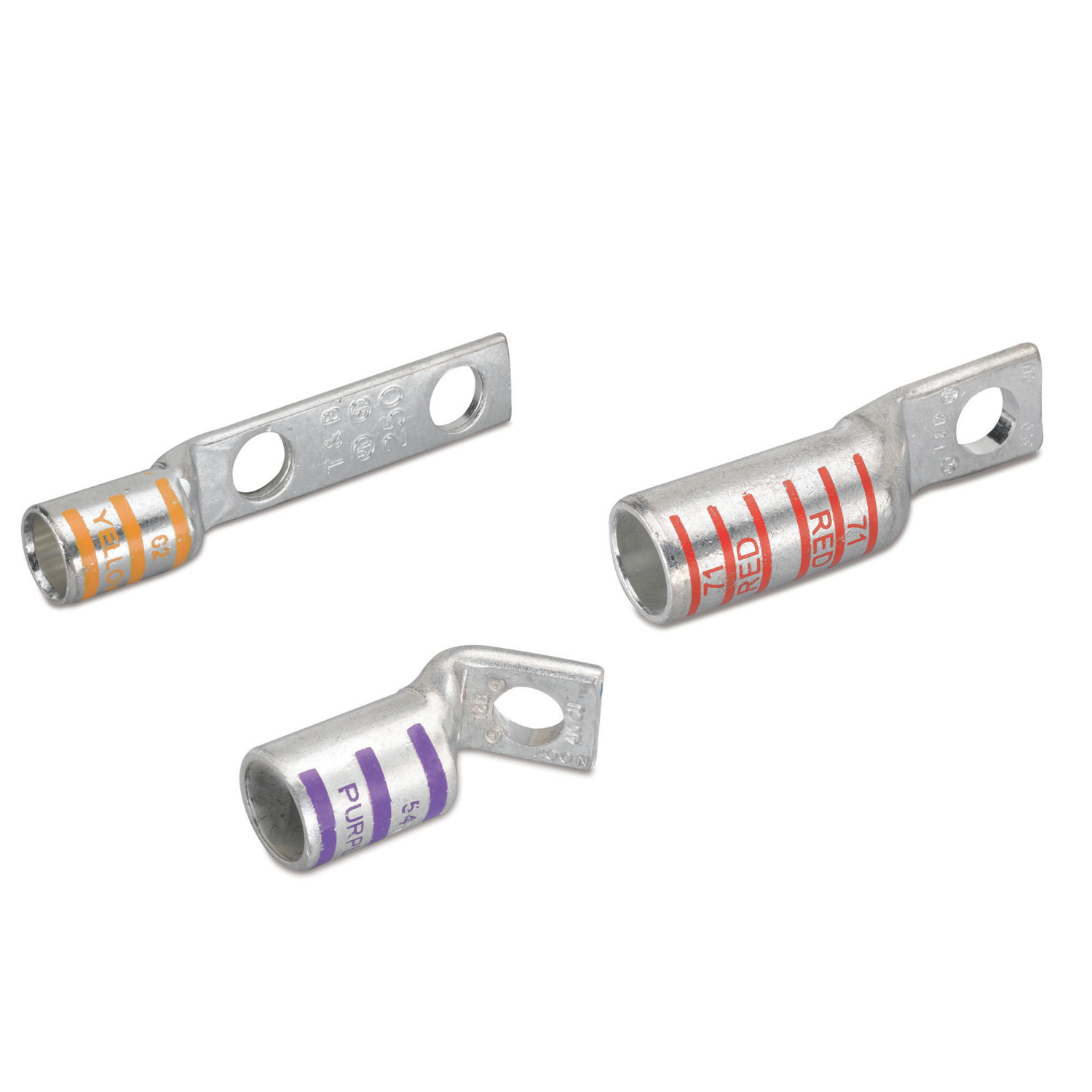

Copper One-Hole Lug, Standard Barrel Narrow Tongue, Peep Hole, Max 35kV, Wire Size 250 kcmil, 1/4 Inch Bolt Size, Tin Plated, Die Code 62, Die Color Code Yellow

Barrel Length      :      Standard
Barrel Shape      :      Standard
Barrel Type      :      Standard
Brand Name      :      ABB
Cable Size      :      250 kcmil
Color Code      :      Yellow
Color      :      Yellow
Conductor Size      :      250 kcmil
ETIM 7 Class      :      EC001051
Finish      :      Tin Plated
Insulation      :      None
Item Name      :      Compression Lug
Material      :      Copper
Number of Holes      :      1 Hole
Number of Studs      :      1
Shape      :      Round
Standards      :      UL File No. E9809 Listed
Standard      :      UL E9809
Stud Size      :      1/4 in
Sub Brand      :      Color-Keyed®
Terminal Connection      :      Special Shape
Tongue Angle      :      Straight
Tongue Type      :      Narrow/Straight
Tongue Width      :      Narrow
Trade Slang      :      786209867872, THB54172NT, Thomas & Betts, 54172NT, Compression Lugs - Copper - 1 Hole, Compression Lugs, Lugs & Split Bolts, Connectors, Crimps, Termination
Type      :      Standard Barrel - Narrow Tongue
Voltage Rating      :      35000 Volt
Voltage      :      600 Volt

Specifications

Ordering

  • EAN: 0786209867872
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .096 lb43.537 g

Container Information

  • Package Level 1 Units: 10 piece
  • Package Level 1 Width: 4 in102 mm
  • Package Level 1 Height: 3 in76 mm
  • Package Level 1 Depth / Length: 4 in102 mm
  • Package Level 2 Units: 100 piece
  • Package Level 2 Width: 8.5 in216 mm
  • Package Level 2 Height: 3.43 in87 mm
  • Package Level 2 Depth / Length: 21.5 in546 mm

Additional Information

  • Brand / Label: Color-Keyed
  • Cable Size: 250 kcmil
  • Color: Yellow
  • Insulation Material: None
  • Material: Copper
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Standard Barrel - Narrow Tongue
  • Standards: UL E9809
  • Stud Size: 1/4 in
  • UPC: 786209867872
  • Voltage Rating: 35 kV

Classifications

  • ETIM 6: EC001051 - Tube cable lug for copper conductors
  • ETIM 7: EC001051 - Tube cable lug for copper conductors
  • UNSPSC: 39121405
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4532 >> Cable or wire lug
  • pdfSpec Sheet https://ideadigitalasset.com/DAMRoot/Original/10858/12055_I1K64FPN29QG8RJZ.pdf
