ECSR15 Edison
Edison ECSR15 EDIECSR15
Send Print
  1. pin-int

EDIECSR15

BUSS ECSR15 UL CLASS RK-5 TIME DELA

  • Manufacturers: Eaton (Group)
  • Brand Name: Edison
  • BPN: EDIECSR15
  • MPN: ECSR15
  • UPC:782634508304
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

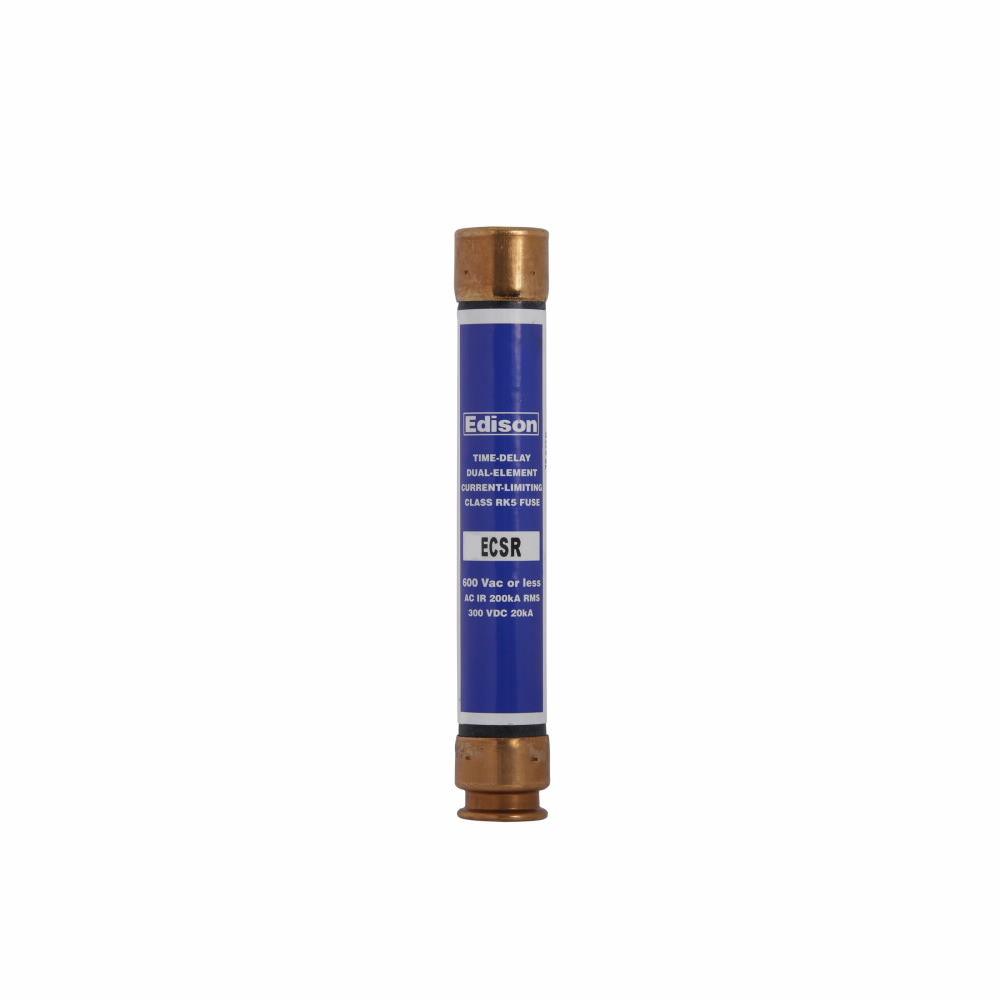

Eaton Edison ECSR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 15 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 200 kAIC, Standard, 600 V

Amperage Rating      :      15 Amp
Amperage      :      15 Amp
Application      :      Ind Facilities & Factories - Facility: Safety and Security Systems
Brand Name      :      Edison
Class      :      Class RK5
Connection Type      :      Ferrule
Connection      :      Ferrule end x ferrule end
Diameter      :      0.81 Inch
Dimensions      :      9.6300 IN X 1.6100 IN X 1.6100 IN
Element      :      Dual
Enclosure Material      :      Stainless Steel
End Type      :      Ferrule
Height      :      1.61 Inch
Interrupt Rating      :      200 kAIC
Length      :      9.63 Inch
Response Time      :      10 S At 500%
Size      :      0.81 In Diameter X 5.00 In Length
Standards      :      CE Marked
Standard      :      CE,CSA C22.2,UL
Sub Brand      :      Edison
Trade Slang      :      782634508304, BUSECSR15, Eaton/Bussmann Series, ECSR15, Fuses - Class RK5, General Purpose Fuses, Fuses & Accessories, Power Distribution, Bussmann, Cooper Bussman
Type      :      Current Limiting,Time-Delay
Voltage Rating      :      600 Volt
Voltage      :      600 Volt
Weight      :      1.5 lb
Width      :      .81 in

Specifications

General

  • UPC: 782634508304
  • Product Length/Depth: 9.63 in
  • Product Height: 1.61 in
  • Product Width: 1.61 in
  • Product Weight: 1.5 lb
  • Warranty: Not Applicable
  • Compliances: CE Marked

Electrical Rating

  • Amperage Rating: 15 A
  • Interrupt rating: 200 kAIC
  • Response time: 10 sec at 500%
  • Voltage rating: 600 V

Physical Details

  • Number of elements: Dual
  • Packaging type: Standard

General Information

  • Class: Class RK5
  • Fuse indicator: Non-indicating
  • Special features: Superior overload and cycling capabilities
  • pdfSpec Sheet https://media.distributordatasolutions.com/eaton/2019q2/4ee78ecdf2a95a3b0c45a30383f23e43c5f48f9a.pdf
